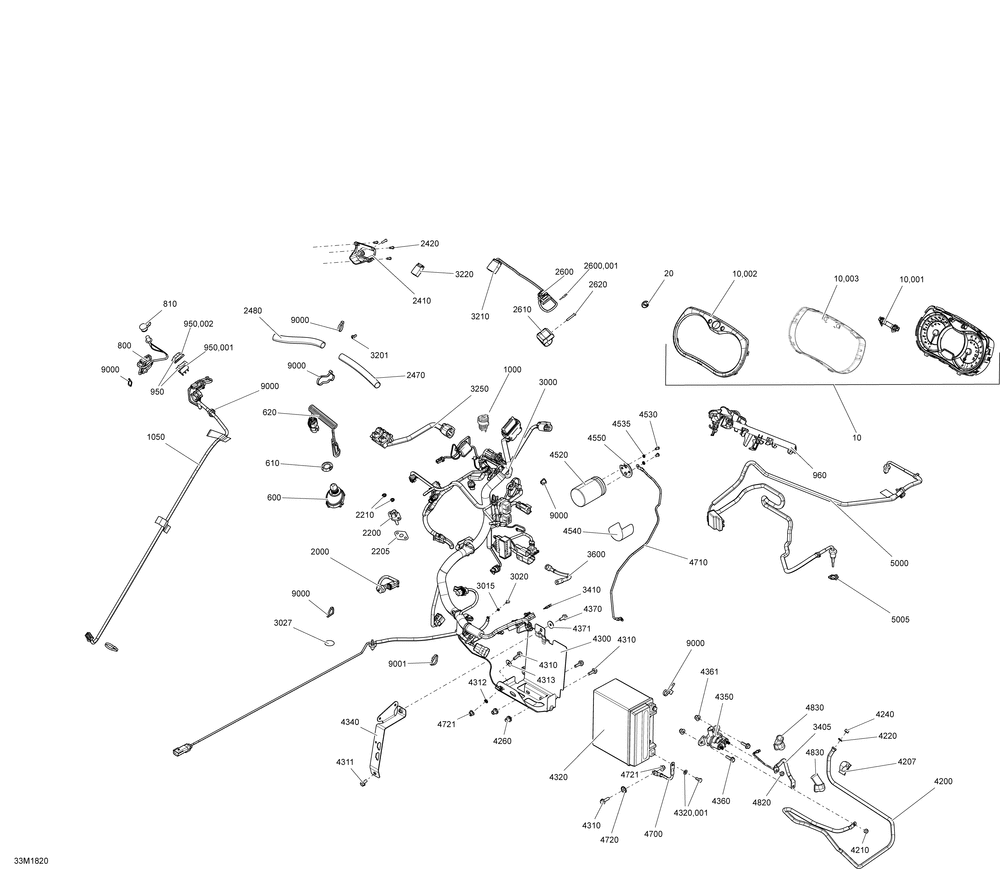

SKI-DOO GRAND TOURING 600HO E-TEC GRAND TOURING 600HO E-TEC 10- Electrical System Grand Touring Engine 600 HO E-TEC - Package SE
10- Electrical System Grand Touring Engine 600 HO E-TEC - Package SE
№ Наименование Примечание Кол-во
10 INDICATEUR *INDICATOR 1
10.001 SPEEDOMETER BUTTON RS STD 1
10.002 GAUGE RING RS STD 1
10.003 Lens 1
20 BRP Logo, 20 mm 1
600 DESS Switch RFID 1
610 Safety Nut (DESS Switch) 1
620 KEY 1
800 VISOR HARNESS 1
810 CAP 1
950 ROCKER SWITCH ASS Y 1
950.001 ROCKER SWITCH 1
950.002 SWITCH PROTECTOR 1
960 CONNECTOR PLATE 1
1000 OUTLET DC 1
1010 12 VOLTS OUTLET HARNESS 1
1050 HARNESS 1
2000 TEMPERATURE SENSOR 1
2200 AIR TEMPERATURE SENSOR 1
2205 JOINT *RING 1
2210 PUSH NUT (10.000 per pack) 2
2400 HOUSING Enduro 1
2410 HOUSING PLATE 1
2420 SCREW TYPE 8-18 HI-LO TORX T-20 4
2470 PROTECTOR TUBE 1
2600 KILL SWITCH Includes 43 To 44 1
2600.001 MALE TERMINAL (10.000 per pack) 2
2610 KILL SWITCH SUPPORT 1
2620 TORX SCREW tahos_8-18 (10.000 per pack) 1
3000 CABLAGE ASS. *WIRING HARNESS Includes 1 To VSS 1
3015 WASHER-LOCK HELICAL DIN.127B-A2 (5.000 per pack) 1
3020 TORX-TRUSS M/S NYLON PATCH M4 X 8 (10.000 per pack) 1
3201 PAN SCREW FORMING 7500C 1
3210 MALE TERMINAL HOUSING 6 CIRCUITS 1
3220 MALE TERMINAL HOUSING 4 CIRCUITS 1
3405 FUSE BATTERY WIRE 1
3410 FUSE 25 AMPERES (5.000 per pack) 1
3600 GROUND WIRE 1
4200 BATTERY/STARTER WIRE 1
4207 CLIP 1
4210 Elastic Stop Nut M6 1
4220 FLAT WASHER 6 MM (10.000 per pack) 1
4260 Insert 2
4300 SUPPORT *SUPPORT 1
4310 Hex. Flanged Screw M6 X 20 1
4311 Hex. Flanged Screw M6 X 12 1
4312 EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack) 1
4313 Flat Washer 1
4320 BATTERY ASS Y 18 AMPERES 1
4320.001 Battery Bolt Kit 1
4340 LANIERE BATTERI*STRIP-BATTERY 1
4350 Starter Relay 1
4361 Elastic Flanged Nut M6 X 1.0 2
4370 Hex. Flanged Screw M6 X 16 1
4371 FLAT WASHER (10.000 per pack) 1
4520 CAPACITOR 1
4530 SOCKET HEAD SCREW M10 X 32 (10.000 per pack) 2
4535 WASHER-LOCK HELICAL tahos_10 2
4540 CAPACITOR DECAL 1
4550 CAP 1
4700 GROUND WIRE 1
4710 FIL DE MASSE *WIRE-GROUND 1
4720 Lock Washer Serrated M6 1
4721 Hex. Flanged Elastic Nut M6 1
4830 PROTECTOR CAP 1
6000 RALLONGE *EXTENSION 1
9000 Tie-Rap 173 mm 1
9000 Tie-Rap 350 mm 1
9000 Tie-Rap 180 mm 1
9000 Tie-Rap 94 mm 1
9000 Tie-Rap 142 mm 1
