07- Steering Grand Touring - 600 HO E-TEC

Корзина пуста
SKI-DOO GRAND TOURING 600HO E-TEC GRAND TOURING 600HO E-TEC 07- Steering Grand Touring - 600 HO E-TEC

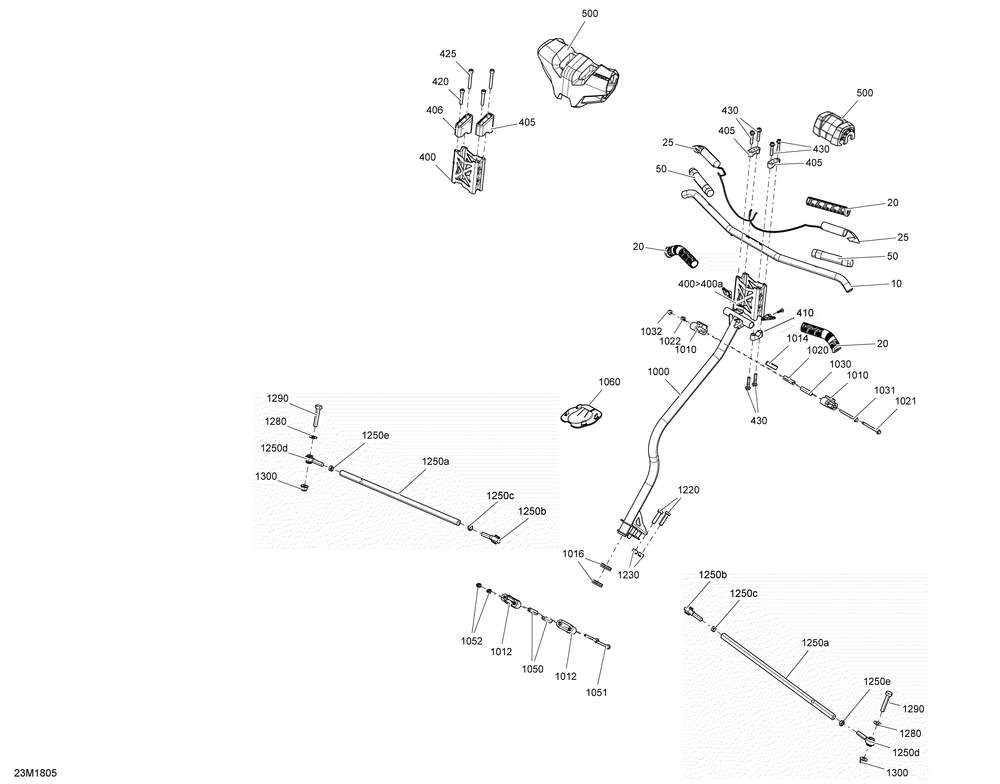

07- Steering Grand Touring - 600 HO E-TEC
№ Наименование Примечание Кол-во
10 BLACK HANDLE BAR 1
20 GRIP 2
25 ELEMENT CHAUFF.*HEATED FILM Package LE SE 1
25 ELEMENT CHAUFF.*HEATED FILM 1
50 ISOLANT *ISOLANT 2
400 HANDLEBAR EXTENSION 115 1
405 LH HANDLEBAR SUPPORT 1
406 RH HANDLEBAR SUPPORT 1
410 STEERING SUPPORT 2
420 SOCKET HEAD SCREW M8 X 45 (5.000 per pack) 2
425 SOCKET HEAD SCREW M8 X 60 (2.000 per pack) 2
430 SCREW HEXAGONAL FLANGE M8 X 40 4
500 STEERING PAD 1
1000 TUBE-MAIN WELD 1
1010 UPPER HALF-HOUSING 2
1012 LOWER HALF-HOUSING 2
1014 UPPER ANTI-VIBRATION GASKET 1
1016 LOWER VIBRATION RING 2
1020 HOUSING BUSHING 1
1021 HEX. FLANGED SCREW M6 X 70 1
1022 Elastic Flanged Nut M6 X 1.0 1
1060 PLAQUE *PLATE 1
1220 HEX. SCREW M10 X 40 2
1230 Elastic Locking Nut M10 2
1250a TIE-ROD Except Back Country Back Country X 2
1250b LH BALL JOINT 2
1250c LH HEX. JAM NUT M10 (10.000 per pack) 2
1250d RH BALL JOINT 2
1250e RH Hex. Jam Nut M10 2
1280 Washer 2
1290 HEX SCREW M10 X 55 2
1300 Hex. Elast. Flanged Nut M10 2
6000 Torx Screw Truss Head K50X20 T20 2
