SKI-DOO MXZ 1200 4-TEC MXZ 1200 4-TEC 09- Frame Engine 1200 4-TEC MX-Z - All Package

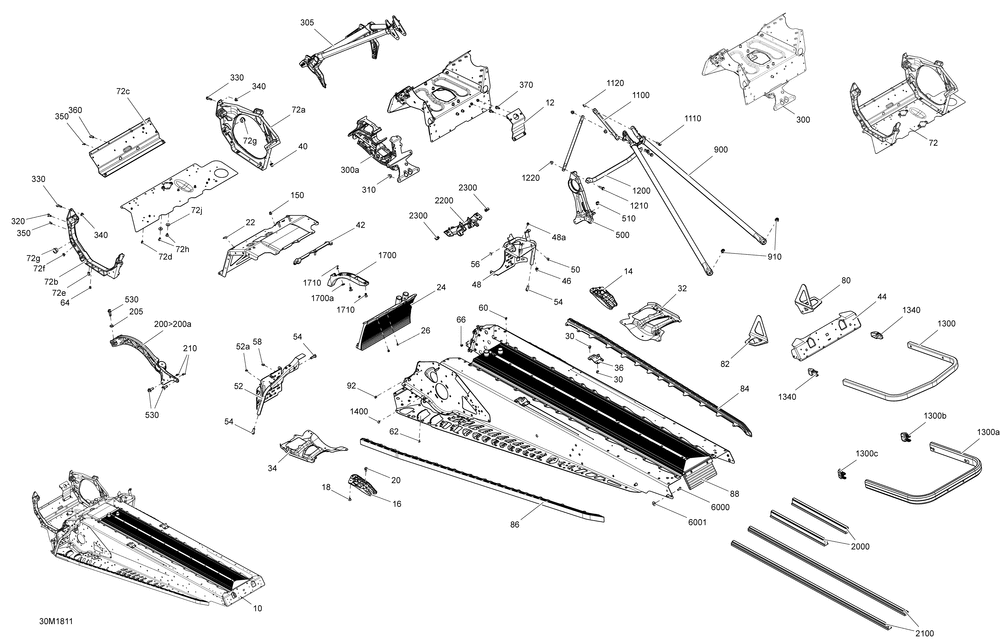

09- Frame Engine 1200 4-TEC MX-Z - All Package
№ Наименование Примечание Кол-во
10 YELLOW FRAME 129 Vehicle 129" Frame Sunburst Yellow Models Includes 10 to 10 1
10 BLACK FRAME 129 Vehicle 129" Frame Deep Black Models Includes 10 to 10 1
12 MAG ENGINE SUPPORT Model-1200 4-TEC 1
14 RH DEFLECTOR 1
16 LH DEFLECTOR 1
18 Pop Rivet 3/16" 4
20 Hex. Flanged Screw M6 X 12, Scotch Grip 2
22 ADHESIVE PATCH 1
24 FRONT RADIATOR ASS Y 1
26 AVIBULB *AVIBULB 5
30 HEMLOCK RIVET 6.4 MM (10.000 per pack) 3
32 RENFORT DR *REINFORCEMENT 1
34 RENFORT GA *REINFORCEMENT 1
36 LH REAR BASE 1
36 RH REAR BASE 1
40 Insert 1
42 JOINT *SEAL 1
44 REAR CAP 1
48 ETRIER DROIT *RH.STIRUP 1
48a AVEX RIVET (50.000 per pack) 1
50 INSERT 1
52 ETRIER GA *LH.STIRUP 1
54 SCREW-PAN HD.TORX M8X25 SCOTCH GRIP 3
56 FULL MOON DART 5 MM 1
62 AVEX RIVET (50.000 per pack) 4
64 STAVEX RIVET (20.000 per pack) 8
66 HENROB RIVET (10.000 per pack) 12
72 MODULE E *MODULE E 1
72a RH SIDE MEMBER 1
72b LH SIDE MEMBER 1
72c FRONT MEMBER 1
72e HEMLOCK RIVET 6.5 MM (4.000 per pack) 2
72f HEMLOCK RIVET 6.5 MM (5.000 per pack) 4
72g BUSHING 2
72h TORX TRUSS SCREW M6 X 10 2
72j Flat Washer 6 mm 2
80 ATTACHE DROITE *RH.BRACKET 1
82 ATTACHE GAUCHE *LH.BRACKET 1
84 RH ROLLER 1
86 LH ROLLER 1
88 RADIATEUR ARR.S*REAR RAD. WELD 1
150 Hex. Flanged Elastic Nut M6 1
200>200a BRACE ASS Y Includes 53 To 54 Model-1200 4-TEC 1
205 CONICAL SPRING WASHER M8 (10.000 per pack) 1
210 POP RIVET 3/16tahos_ (50.000 per pack) 2
300 MODULE S *CROSS MEMBER 1
300a FRONT SUSPENSION SUPPORT 1
305 FRONT MEMBER 1
310 Hex. Flanged Elastic Nut M8 2
320 SCREW-FORMING HEX.HD.FL. M6 X 16 2
330 Hex. Flanged Screw M6 X 25 2
350 MONOBOLT RIVET 4.8 MM (4.000 per pack) 6
360 MONOBOLT RIVET 6.4 (2.000 per pack) 2
370 Hex. Flanged Screw M6 X 16 2
500 PULLEY SUPPORT 1
530 HEX. FLANGED SCREW M8 X 25 NYLON (5.000 per pack) 3
900 REAR MEMBER 1
1100 UPPER COLUMN SUPPORT Model-1200 4-TEC 2
1110 Hex. Flanged Screw M6 X 20 2
1120 Elastic Flanged Nut M6 X 1.0 2
1200 CENTER COLUMN SUPPORT Model-1200 4-TEC 1
1300 BLACK REAR BUMPER 1
1340 BLACK CAP North America Model 2
1400 BLACK DART 8 MM 3
1400 Black Dart 10 mm 2
1700 FRONT PROTECTOR 1
1700a RONDELLE *WASHER (10.000 per pack) 1
1710 POP RIVET 3/16tahos_ (25.000 per pack) 3
2000 PROT. CHASSIS *TUNNEL PROT. 2
2200 SUB A SUPPORT 1
2300 PANEL NUT M5 X 0.8 (10.000 per pack) 2
6000 TORX-TRUSS M/S N.PATCH M6 X 18 10
6001 FLAT WASHER (10.000 per pack) 6
