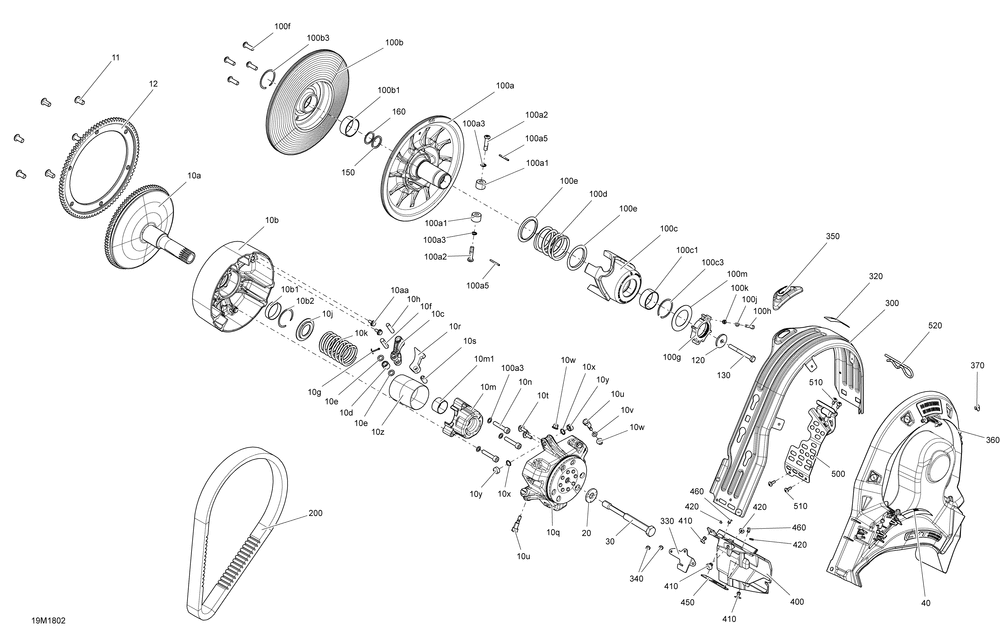

05- Pulley System MXZ - 600 CARB

Корзина пуста
Наименование Примечание Кол-во
10a FIXED FLANGE ASS Y 1
10aa FLANGED HEX. SCREW M6 X 12 SCOTCH GRIP (6.000 per pack) 6
10b1 BUSHING 1
10b2 CIRCLIP 1
10b>10b2 SLIDING FLANGE ASS Y 1
10c LEVER 3
10d ROLLER (3.000 per pack) 3
10e STOPPER WASHER (6.000 per pack) 6
10f GOUPILLE *PIN Europe (3.000 per pack) 3
10g COTTER PIN (3.000 per pack) 3
10h LEVER AXLE (3.000 per pack) 3
10j SPRING SEAT 1
10k RESSORT *CLUTCH SPRING 600 / VIOLET & VIOLET 1
10m1 BUSHING 1
10m>10m1 SPRING COVER ASS Y 1
10n SOCKET HEAD SCREW M8 X 40 Model-SE (5.000 per pack) 3
10p Lock Washer 8 mm 3
10q GOVERNOR CUP ASS Y 1
10r RAMP 412 (3.000 per pack) 3
10s SPRING PIN M10 X 22 (3.000 per pack) 3
10t FLANGED HEX. SCREW M6 X 18 SCOTCH GRIP (6.000 per pack) 6
10u CALIBRATION SCREW (3.000 per pack) 3
10v RONDELLE *WASHER (6.000 per pack) 3
10w Hex. Flanged Elastic Nut M6 3
10x O-RING (6.000 per pack) 6
10y SLIDER SHOE (6.000 per pack) 6
10z GUARD 1
11 HEX. FLANGE SCREW M8 X 16 (6.000 per pack) 6
12 RING GEAR 1
20 CONICAL SPRING WASHER M14 1
30 DRIVE PULLEY BOLT 1
40 DECAL ENGLISH 1
100a1 Roller 2
100a2 PIVOT STUD 2
100a5 SPRING PIN M3 X 30 (2.000 per pack) 2
100a>100a5 FIXE FLANGE ASS Y 1
100b1 BUSHING 1
100b3 CIRCLIP 1
100b>100b3 SLIDER FLANGE ASS Y Includes 31 To 32 1
100c>100c3 CAM ASS Y 1
100d SPRING 1
100e Swivel Abutment 2
100f HEX. BUTTON HEAD SCREW M8 X 25 (4.000 per pack) 4
100g AJUST POULIE *PULLEY ADJUST 1
100h SOCKET SCREW M5 X 25 (10.000 per pack) 1
100j FLAT WASHER M5 (10.000 per pack) 1
100k NUT-STOP ELASTIC DIN.985 (10.000 per pack) 1
100m RONDELLE *WASHER 1
120 STRENGTH WASHER 1
130 HEX. CAP SCREW M8 X 75 (2.000 per pack) 1
160 SPACER (Adjustment Part Use If Needed) (5.000 per pack) 3
200 Ремень приводной 1
300 BELT GUARD 1
320 SAFETY BELT GUARD DECAL 1
330 FRONT BRACKET 1
340 AVEX RIVET (50.000 per pack) 2
350 GUIDE 1
360 CVT AIR DUCT 1
370 Black Pop Rivet 3/16" 6
400 FRONT SUPPORT 1
410 Pop Rivet 3/16" 3
420 FLAT WASHER (10.000 per pack) 3
450 REINFORCEMENT PLATE 1
460 AVEX RIVET (50.000 per pack) 2
500 BELT GUARD BRACKET 1
510 Torx Screw M5 X 14 4
520 GOUP.SURETE *PIN-HAIR (5.000 per pack) 1
