SKI-DOO MXZ 600HO E-TEC MXZ 600HO E-TEC 08- Suspension Rear MXZ - Package XRS Iron Dog - Inferior

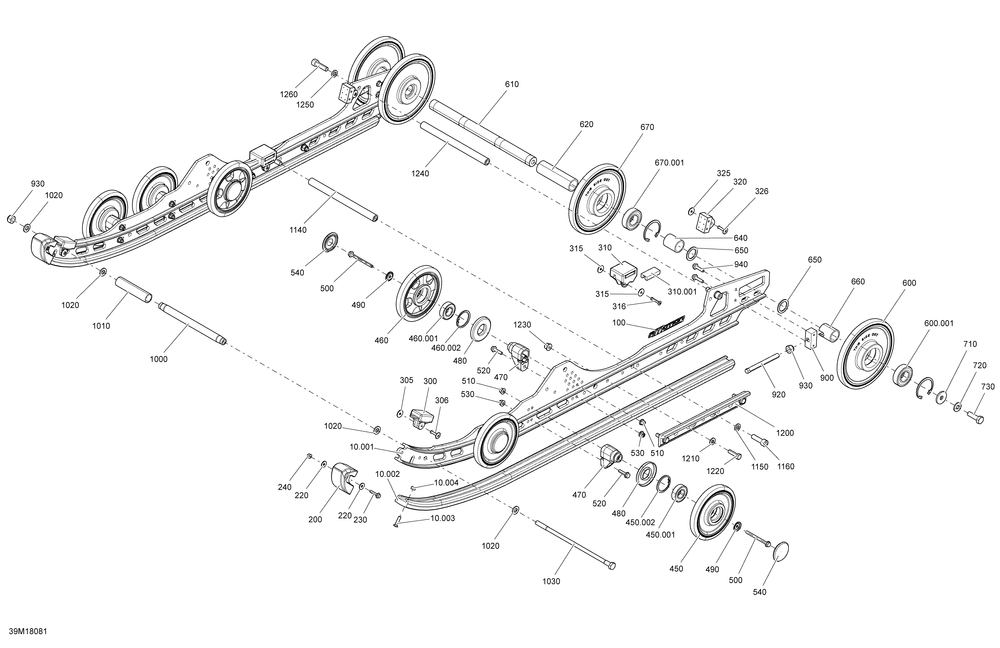

08- Suspension Rear MXZ - Package XRS Iron Dog - Inferior
№ Наименование Примечание Кол-во
10.001 RAIL PEINT *RUNNER PAINT Black-Black Model 1
10.002 GLISSIERE *SLIDER 1
10.003 PHILLIPS SCREW M6 X 25 (4.000 per pack) 1
10.004 Elastic Stop Nut M6 1
100 RUNNER DECAL 2
200 SLIDE PROTECTOR 2
220 RONDELLE *WASHER (4.000 per pack) 4
230 HEX. FLANGED SCREW M5 X 25 2
300 RUBBER STOPPER 2
305 RONDELLE * WASHER (6.000 per pack) 2
306 POP RIVET 3/16" 2
310 STOPPER RUBBER ASS Y 2
310.001 REINFORCEMENT STOPPER 1
316 POP RIVET 3/16" (10.000 per pack) 2
320 RUBBER STOPPER 2
440 BLACK WHEEL ASS Y 141 MM Package XRS 4
440.001 BALL BEARING 2
440.002 RETAINING RING 2
460 DEEP BLACK WHEEL ASS Y 141 MM 2
470 CASTED SUPPORT 6
480 LABYRINTH SEAL 6
490 WHEEL CUP M6 6
500 HEX. FLANGE SCREW M6 X 70 6
510 Hex. Flanged Elastic Nut M6 6
520 HEX. FLANGE SCREW M6 X 25 6
540 BLACK WHEEL CAP 6
600 WHEEL 180 Includes 34 to 35 2
600.001 Ball Bearing 1
610 REAR AXLE 1
620 CENTER SPACER 1
640 INNER SPACER 2
650 RONDELLE *WASHER 4
660 OUTER SPACER 2
710 RONDELLE *WASHER (10.000 per pack) 2
720 CONICAL SPRING WASHER 10 MM (10.000 per pack) 2
730 SCREW-HEX.CAP WITH NYLON PATCH 2
900 TENSIONER 2
920 HEX SCREW M10 X 100 2
930 Elastic Locking Nut M10 2
940 Flanged Hex. Screw S.GRIP M6 X 20 4
1000 PIVOT AXLE 1
1010 SPACER 1
1020 FLAT WASHER 4
1030 BOLT M10 X 251MM 1
1140 AXLE STRAP 1
1150 Washer 2
1160 SOCKET HEAD SCREW M10 X 35 2
1200 BLACK REINFORCEMENT RUNNER 2
1210 Washer 6
1220 HEX. CAP SCREW M8 X 30 6
1230 NUT-FLANGE ELASTIC DIN.6926 6
