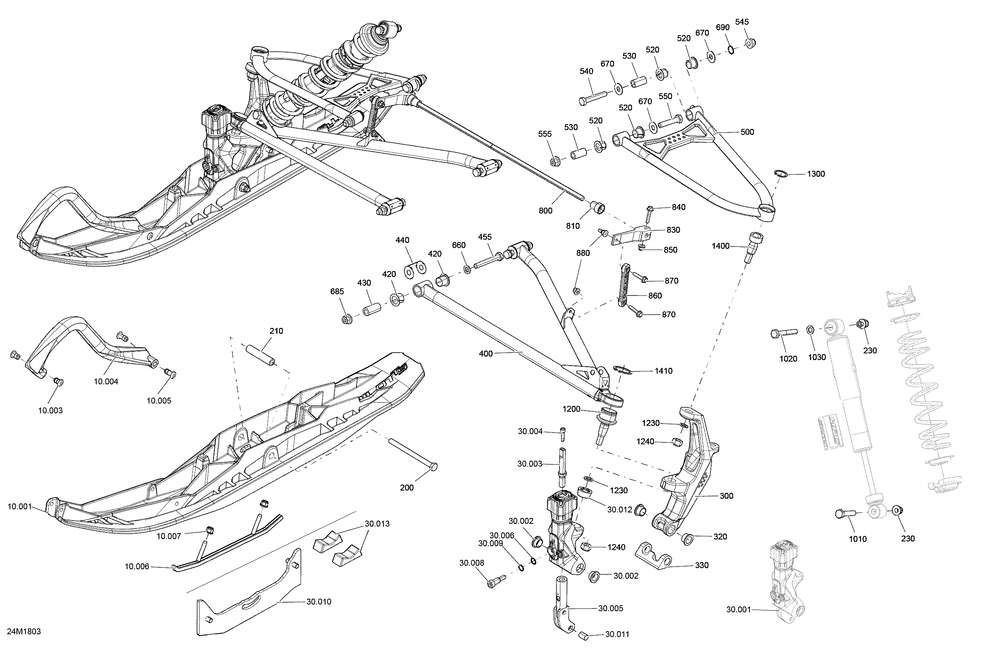

07- Front Suspension And Ski MXZ - Package TNT Except Engine 850 E-TEC

SKI-DOO MXZ 600HO E-TEC MXZ 600HO E-TEC 07- Front Suspension And Ski MXZ - Package TNT Except Engine 850 E-TEC

№	Наименование	Кол-во
10.001	DEEP BLACK LH PILOT SKI 5.7 ASS Y Model N	1
10.001	DEEP BLACK RH PILOT SKI 5.7 ASS Y Model N	1
10.002	RETAINER (16.000 per pack)	2
10.003	BLACK HANDLE Model N	1
10.004	RETAINER	2
10.005	CARBIDE RUNNER KIT Includes 3 To 4	1
10.006	Hex. Flanged Elastic Nut M8	6
30.001	MECANISME *MECANISME	1
30.002	COUSSINET *BUSHING	2
30.003	ARBRE *SHAFT	1
30.004	SOCKET HEAD SCREW M6 X 25 S.GRIP With Adjustable Ski Pilot TS	1
30.005	EMBOUT *TIP WELDED	1
30.007	RESSORT *SPRING	1
30.008	VIS *SCREW	1
30.009	O-RING (10.000 per pack)	1
30.01	RUNNER KIT Model N	2
30.011	PIGE *PIN	2
30.012	GROMMET *GROMMET	2
30.013	BUTEE DE SKI *STOPPER-SKI	4
200	HEX. SCREW M10 X 130	2
210	SPACER (2.000 per pack)	2
300	SKI-LEG MACHINED Model N	1
310	JAMBE DE SKI *SKI LEG Model-Black-Black Package-XRS	1
320	BUSHING	4
330	BUTÉE *STOPPER	2
400	RH LOWER ARM 42" Except Package-Sport	1
410	LH LOWER ARM 42" Except Package-Sport	1
420	COUSSINET *BUSHING	8
430	BUSHING	4
440	WEAR PLATE	4
450	SCREW HEX. M10 X 70	2
500	LH UPPER ARM 42" Except Package-Sport	1
510	RH UPPER ARM 42" Except Package-Sport	1
520	COUSSINET *BUSHING	8
530	BUSHING	4
540	SCREW HEX. M10 X 60 (5.000 per pack)	2
545	Hex. Flanged Elastic Nut M10	2
550	SCREW HEX. M10 X 50 (4.000 per pack)	2
660	RONDELLE *WASHER (10.000 per pack)	4
670	RONDELLE *WASHER (5.000 per pack)	6
690	O-RING	2
800	STABILISATEUR *STABILISATOR	1
810	COUSSINET *BUSHING	2
830	STABILISATOR LEVER	2
840	HEX FLANGED SCREW M6 X 30	2
850	Hex. Flanged Elastic Nut M6	2
860	Sway Bar Double Joint Link	2
1010	HEX SCREW M10 X 55	2
1020	HEX. SCREW M10 X 65 (5.000 per pack)	2
1200	JOINT ROTULE *BALL JOINT	2
1230	RONDELLE *WASHER (5.000 per pack)	4
1240	Hex Elastic Nut M12 X 1.25	4
1300	CIRCLIP (2.000 per pack)	2
1400	UPPER BALL JOINT	2
1410	Circlip	2
