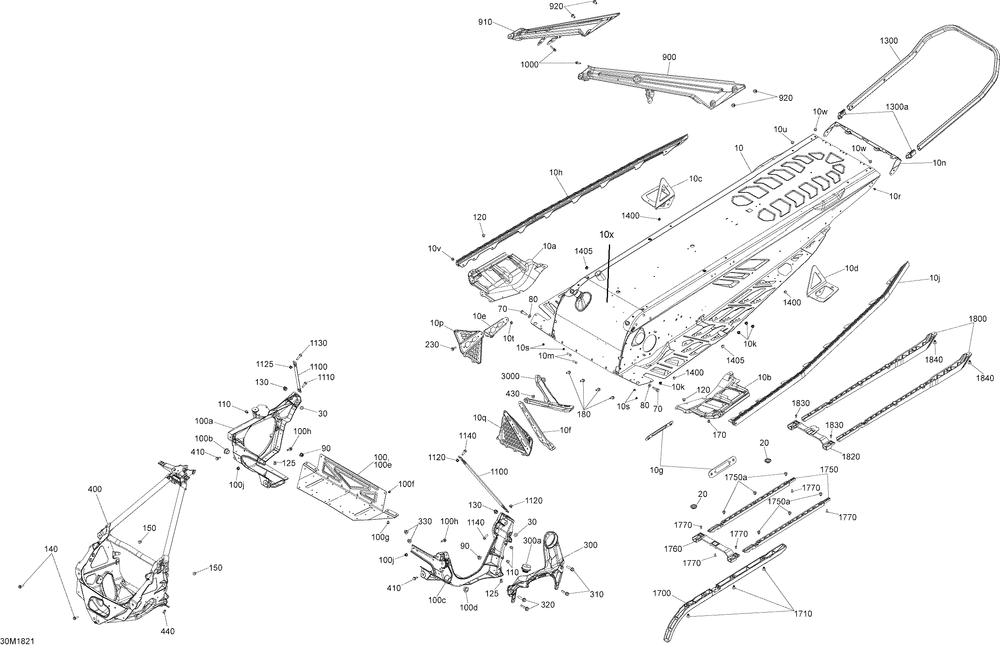

SKI-DOO MXZ 850 E-TEC MXZ 850 E-TEC 09- Frame MXZ Engine 850 E-TEC Except Package XRS
09- Frame MXZ Engine 850 E-TEC Except Package XRS
№ Наименование Примечание Кол-во
10>10x BLACK TUNNEL MODULE 129 1
10a FOOTREST REINFORCEMENT 1
10b FOOTREST REINFORCEMENT 1
10c SUSPENSION BRACKET 1
10d SUSPENSION BRACKET 1
10e RIGHT REINFORCEMENT FOOTREST 1
10f LEFT REINFORCEMENT FOOTREST 1
10g MEMBER FIXATION PLATE 2
10h RIGHT ROLLER 1
10j LEFT ROLLER 1
10k Insert 4
10m CLINCH STUD M6 X 20 2
10n REAR CAP 1
10p RIGHT FOOTREST 1
10q LEFT FOOTREST 1
10r AVIBULB *AVIBULB 36
10s STAVEX RIVET (20.000 per pack) 4
10t HEMLOCK RIVET 6.5 MM (5.000 per pack) 8
10u HEMLOCK RIVET 6.5 MM (5.000 per pack) 10
10v HEMLOCK RIVET 6.4 MM (10.000 per pack) 10
10w HEMLOCK RIVET (10.000 per pack) 2
10x ASSEMBLY RADIATOR 1
20 BLACK PLUG (2.000 per pack) 2
30 RONDELLE *WASHER (25.000 per pack) 2
70 HEX. SCREW M8 X 30 2
80 Flat Washer 8 mm 2
90 Hex. Flanged Elastic Nut M8 2
100 RIVETED MODULE E Includes 100 to 100j 1
100a RIGHT MEMBER ASSEMBLY Includes 100a to 100b 1
100b BUSHING 1
100c LEFT MEMBER ASSEMBLY Includes 100c to 100d 1
100e BOTTOM PLATE 1
100g INSERT 1
100h HEX. FLANGED SCREW M6 X 20 2
100j Hex. Flanged Elastic Nut M6 2
125 HEMLOCK RIVET 6.5 MM (4.000 per pack) 2
140 Hex. Flanged Screw M6 X 20 2
180 Hex. Flanged Screw M6 X 16 4
230 Hex. Flanged Screw M6 X 20, Scotch Grip 1
300 ASSEMBLY BRACE Includes 300 to 300a 1
300a RUBBER MOUNT 1
310 SCREW-FORMING HEX.HD.FL. DIN.7500D 2
320 HEX. FLANGED SCREW M8 X 35 (10.000 per pack) 2
400 S MODULE 1
410 SCREW-FORMING HEX.HD.FL. M6 X 16 2
900 LEFT MEMBER BLACK 1
910 RIGHT MEMBER BLACK 1
920 PAN HEAD TORX SCREW M8 X 12 4
1000 PROTRUDING STUD M5 X 20 2
1100 UPPER COLUMN 2
1125 Elastic Flanged Nut M6 X 1.0 1
1130 Hex. Flanged Screw M6 X 25 1
1300 REAR BUMPER 1
1300a CAP 2
1400 BLACK DART 8 MM 3
1405 Black Dart 10 mm 2
1700 FRONT PROTECTOR 1
1710 POP RIVET 3/16tahos_ (25.000 per pack) 3
1750 REAR PROTECTOR Includes 1750 to 1750a 2
1750a Rubber Bumper 3
1760 SUPPORT 1
1770 Torx Truss Screw K40 X 12 5
1800 REAR PROTECTOR 2
1820 SUPPORT 1
3000 BLACK TOE-HOLD 1
