SKI-DOO RENEGADE 600 ACE RENEGADE 600 ACE 09- Hood Renegade 600 ACE

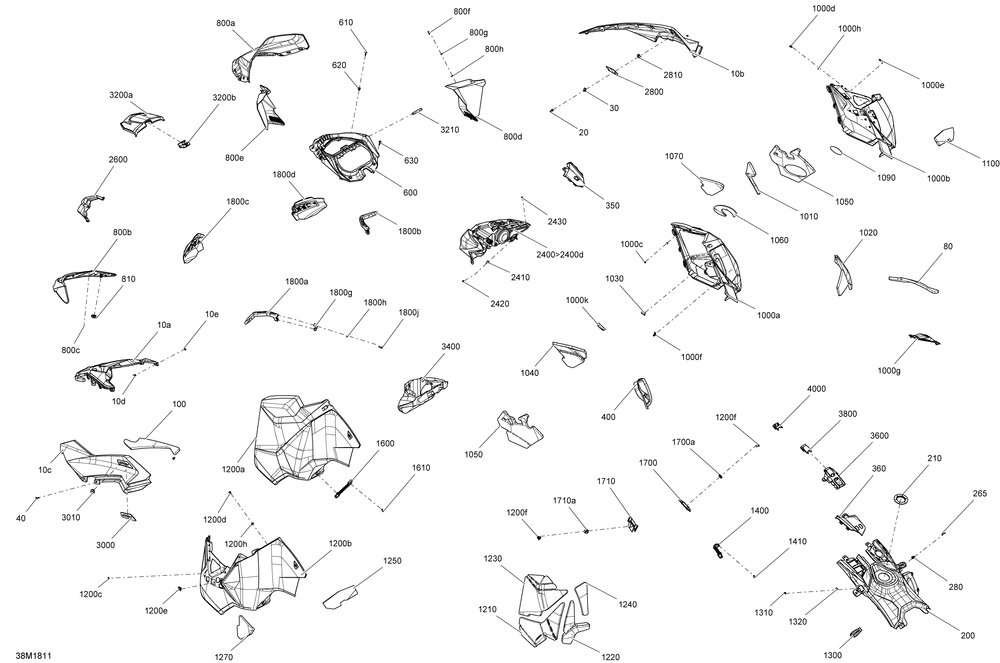

09- Hood Renegade 600 ACE
№ Наименование Примечание Кол-во
10a DEEP BLACK CENTER HOOD 1
10b WHITE RH HOOD White-Black Model Except Expedition 1
10c WHITE LH HOOD White-Black Model Except Expedition 1
10d Pop Rivet 3/16" 8
10e RONDELLE *WASHER (10.000 per pack) 8
20 Torx Screw M5 X 20 6
30 PANEL NUT M5 X 0.8 (10.000 per pack) 8
40 TORX SCREW M5 X 26 2
80 RH REAR HOOD FOAM 1
100 LH REAR HOOD FOAM 1
200 WHITE REAR CONSOLE 1
210 CONSOLE NUT 1
265 Torx Truss Screw M6 X 20 2
280 Panel Nut M6 X 1.0 2
400 DEEP BLACK RH CONSOLE 1
600 DEEP BLACK INDICATOR SUPPORT 1
800a WINDSHIELD 345 Adrenaline 1
800b SUPPORT 1
800c Push Nut 6
800d RH AIR DEFLECTOR 1
800e LH AIR DEFLECTOR 1
800f Torx Screw K50 X 16 4
800g WASHER M5 (10.000 per pack) 4
800h Rubber Washer 5 mm 4
810 RONDELLE *GROMMET 3
1000a WHITE RH PANEL Burton Package 1
1000b DEEP BLACK RH PANEL TRIM 1
1000c PUSH NUT 5
1000e PLAQUE *PLATE 4
1000f TIGE *PIN 1
1000g RH PANEL VENT GRID 1
1010 RH CENTER PANEL FOAM 1
1020 RH REAR PANEL FOAM 1
1030 HEAT SHIELD 2
1040 RH UPPER PANEL FOAM 1
1050 RH LOWER PANEL FOAM 1
1200a WHITE LH PANEL Burton Package 1
1200b DEEP BLACK LH FLASHING PANEL 1
1210 LH CENTER PANEL FOAM 1
1220 LH LOWER PANEL FOAM 1
1230 LH UPPER PANEL FOAM 1
1240 LH REAR PANEL FOAM 1
1300 PANEL LATCH 2
1310 HEXALOB SCREW M4 X 10 2
1320 WELD NUT M4 2
1400 RH PANEL LATCH 1
1410 POP RIVET 3/16tahos_ (25.000 per pack) 1
1600 LH PANEL LATCH 1
1700 RH PANEL CLIP ASS Y 1
1700a RING 1
1710 LH PANEL CLIP ASS Y 1
2400 PHARE *HEADLAMP Includes 2400 to 2400d 1
2400a CAP 2
2400b Halogen Bulb, 60/55 W, 12 V ( H4 ) 2
2400c HOLDER BRACKET 2
2400d Spring 2
2400f Holder 1
2420 JACK NUT M5 2
2430 Screw M4 X 16 2
2600 HEADLIGHT TRIM CAP Black 1
2810 RONDELLE *GROMMET (10.000 per pack) 2
3200a UPPER STORAGE ACCESS COVER 1
3200b COVER LATCH 1
3210 SEAL JOINT 2
3400 TRUNK 1
3600 CONSOLE SUPPORT 1
3800 DEEP BLACK SUPPORT CONSOLE CAP 1
4000 SUPPORT CONSOLE CAP 1
