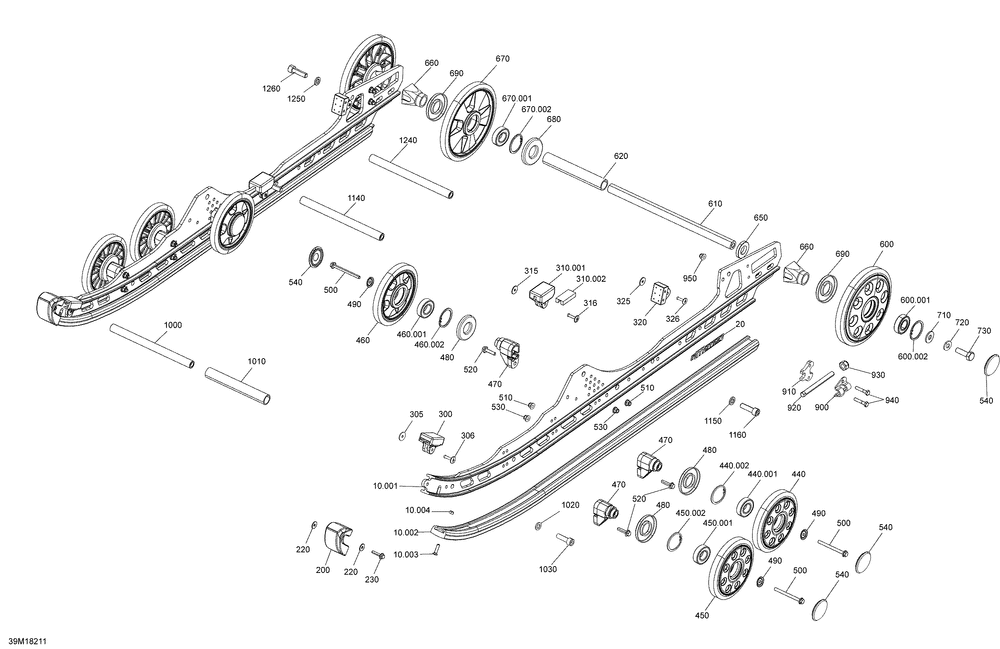

08- Suspension Rear Renegade Engine 850 E-TEC - Package XRS RM - Inferior

Корзина пуста
SKI-DOO RENEGADE 850 E-TEC RENEGADE 850 E-TEC 08- Suspension Rear Renegade Engine 850 E-TEC - Package XRS RM - Inferior
08- Suspension Rear Renegade Engine 850 E-TEC - Package XRS RM - Inferior
№ Наименование Примечание Кол-во
10.001 GREEN RUNNER 137" 1
10.001 BLACK RUNNER 137" 1
10.002 BLACK SLIDER SHOE 137 1
10.003 PHILLIPS SCREW M6 X 25 (4.000 per pack) 1
10.004 Elastic Stop Nut M6 1
20 RUNNER DECAL 2
200 SLIDE PROTECTOR 2
220 RONDELLE *WASHER (4.000 per pack) 4
230 HEX. FLANGED SCREW M5 X 25 2
300 RUBBER STOPPER 2
305 RONDELLE * WASHER (6.000 per pack) 2
306 POP RIVET 3/16" 2
310.001 RUBBER STOPPER 1
310.002 REINFORCEMENT STOPPER 1
320 RUBBER STOPPER 2
440 BLACK WHEEL ASS Y 147 MM 2
440.001 BALL BEARING 1
440.002 RETAINING RING 1
460 DEEP BLACK WHEEL ASS Y 147 MM 2
470 CASTED SUPPORT 6
480 LABYRINTH SEAL 6
490 WHEEL CUP M6 6
500 HEX. FLANGE SCREW M6 X 70 6
510 Hex. Flanged Elastic Nut M6 6
520 HEX. FLANGE SCREW M6 X 25 6
540 BLACK WHEEL CAP 6
600 ROUE 180 *WHEEL 180 2
610 REAR AXLE 1
620 REAR SPACER 1
660 REAR WHEEL SPACER 4
670 DEEP BLACK WHEEL ASS Y 180 MM 2
680 LABYRINTH SEAL 2
710 RONDELLE *WASHER (3.000 per pack) 2
720 CONICAL SPRING WASHER 10 MM (10.000 per pack) 2
730 SCREW-HEX.CAP WITH NYLON PATCH 2
900 TENSIONER 2
910 SPACER 2
920 HEX SCREW M10 X 100 2
930 Elastic Locking Nut M10 2
940 HEX. CAP SCREW M6 X 30 (2.000 per pack) 4
1000 AXLE STRAP 1
1010 SPACER 1
1020 Washer 2
1030 SOCKET HEAD SCREW M10 X 35 2
