SKI-DOO RENEGADE 850 E-TEC RENEGADE 850 E-TEC 09- Frame Renegade Engine 850 E-TEC - Package Adrenaline

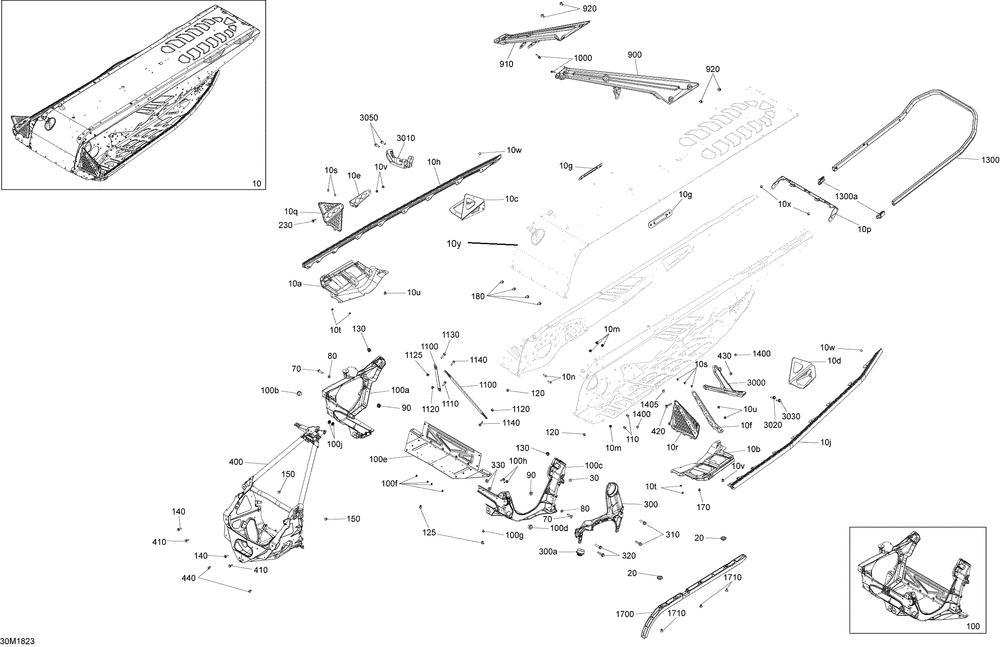

09- Frame Renegade Engine 850 E-TEC - Package Adrenaline
№ Наименование Примечание Кол-во
10>10y BLACK TUNNEL MODULE 137 1
10a FOOTREST REINFORCEMENT 1
10b FOOTREST REINFORCEMENT 1
10c RIGHT BRACKET 1
10d LEFT BRACKET 1
10e RIGHT REINFORCEMENT FOOTREST 1
10f LEFT REINFORCEMENT FOOTREST 1
10g MEMBER FIXATION PLATE 2
10h RIGHT ROLLER 1
10j LEFT ROLLER 1
10m Insert 4
10n CLINCH STUD M6 X 20 2
10p REAR CAP 1
10q RIGHT FOOTREST 1
10r LEFT FOOTREST 1
10s AVIBULB *AVIBULB 36
10t STAVEX RIVET (20.000 per pack) 4
10u HEMLOCK RIVET 6.5 MM (5.000 per pack) 8
10v HEMLOCK RIVET 6.5 MM (5.000 per pack) 10
10w HEMLOCK RIVET 6.4 MM (10.000 per pack) 10
10x HEMLOCK RIVET (10.000 per pack) 2
10y ASSEMBLY RADIATOR 1
20 BLACK PLUG (2.000 per pack) 2
30 RONDELLE *WASHER (25.000 per pack) 2
70 HEX. SCREW M8 X 30 2
80 Flat Washer 8 mm 2
90 Hex. Flanged Elastic Nut M8 2
100 RIVETED MODULE E Includes 100 to 100j 1
100a RIGHT MEMBER ASSEMBLY Includes 100a to 100b 1
100b BUSHING 1
100c LEFT MEMBER ASSEMBLY Includes 100c to 100d 1
100e BOTTOM PLATE 1
100g INSERT 1
100h HEX. FLANGED SCREW M6 X 20 2
100j Hex. Flanged Elastic Nut M6 2
125 HEMLOCK RIVET 6.5 MM (4.000 per pack) 2
140 Hex. Flanged Screw M6 X 20 2
180 Hex. Flanged Screw M6 X 16 4
230 Hex. Flanged Screw M6 X 20, Scotch Grip 1
300 ASSEMBLY BRACE Includes 300 to 300a 1
300a RUBBER MOUNT 1
310 SCREW-FORMING HEX.HD.FL. DIN.7500D 2
320 HEX. FLANGED SCREW M8 X 35 (10.000 per pack) 2
400 S MODULE 1
410 SCREW-FORMING HEX.HD.FL. M6 X 16 2
420 Hex. Flanged Screw M6 X 35 1
900 LEFT MEMBER BLACK 1
910 RIGHT MEMBER BLACK 1
920 PAN HEAD TORX SCREW M8 X 12 4
1000 PROTRUDING STUD M5 X 20 2
1100 UPPER COLUMN 2
1125 Elastic Flanged Nut M6 X 1.0 1
1130 Hex. Flanged Screw M6 X 25 1
1300 REAR BUMPER 1
1300a CAP 2
1400 BLACK DART 8 MM 3
1405 Black Dart 10 mm 2
1700 FRONT PROTECTOR 1
1710 POP RIVET 3/16tahos_ (25.000 per pack) 3
3000 BLACK TOE-HOLD 1
3010 BLACK TOE-HOLD 1
3020 Hex. Flanged Screw M6 X 25 1
3030 Flanged Hex. Screw S.GRIP M6 X 20 1
3050 Hex. Flanged Forming Screw M6 X 25 2
