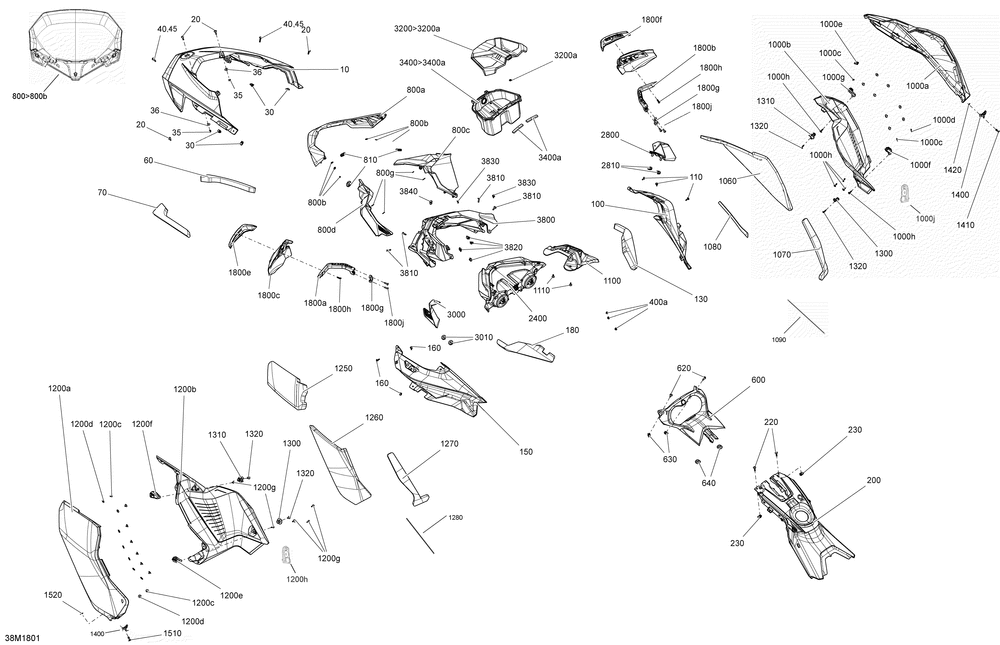

SKI-DOO RENEGADE 850 E-TEC RENEGADE 850 E-TEC 09- Hood Renegade - 850 E-TEC
09- Hood Renegade - 850 E-TEC
№ Наименование Примечание Кол-во
10 HOOD - FRONT 1
10 HOOD - FRONT 1
10 HOOD - FRONT Package XRS Silver Model 1
10 HOOD - FRONT Manta Green Model Package X only 1
10 HOOD - FRONT Package BackCountry X only 1
20 Torx Screw M5 X 20 4
30 PANEL NUT M5 X 0.8 (10.000 per pack) 4
35 Elastic Flanged Nut M5 2
36 FLAT WASHER (3.000 per pack) 2
40 TORX SCREW M5 X 26 2
45 WASHER 2
60 MOUSSE CAPOT FOAM 1
70 FOAM 1
100 RH HOOD 1
100 RH HOOD 1
100 RH HOOD Silver Model 1
100 RH HOOD Package X only 1
100 RH HOOD Package BackCountry X only 1
110 Screw M4 X 16 3
130 FOAM 1
150 LH HOOD 1
150 LH HOOD 1
150 LH HOOD Silver Model 1
150 LH HOOD Package XRS only 1
150 LH HOOD Package BackCountry X only 1
180 FOAM 1
190 JOINT ETANCHE *GASKET 2
200 CONSOLE-REAR Package Adrenaline 1
200 CONSOLE-REAR 1
200 CONSOLE-REAR Package BackCountry & BackCountry X 1
240 CONSOLE NUT 1
600 INDICATEUR SUPPORT Package Adrenaline 1
600 INDICATEUR SUPPORT Package TNT 1
600 INDICATOR SUPPORT 1
800 LOW WINDSHIELD KIT Includes 800 to 800b 1
800 MEDIUM WINDSHIELD KIT Package TNT Includes 800 to 800g 1
800 WINDSHIELD Package XRS Europe Only Includes 800 to 800g 1
800a SUPPORT 1
800a WINDSHIELD SUPPORT Package TNT 1
800a SUPPORT Package XRS Europe Only 0
800b Push Nut 0
800e SCREW M4 X 16 6
800g Rubber Washer 5 mm 4
810 RONDELLE *GROMMET 0
1000a RH PANEL 1
1000a RH PANEL Electrical Start 1
1000a RH PANEL 1
1000a RH PANEL Silver Model 1
1000a RH PANEL Package BackCountry & BackCountry X 1
1000a RH PANEL Package BackCountry X only 1
1000b RH PANEL TRIM 1
1000c Pop Rivet 3/16" 0
1000d RONDELLE *WASHER (10.000 per pack) 0
1000e PLAQUE *PLATE 0
1000f LATCH REAR RH 1
1000g LATCH 1
1000j HOOK - RIGHT 1
1060 FOAM 1
1060 FOAM 1
1070 FOAM 1
1070 FOAM 1
1080 RUBBER SHEET 1
1090 FOAM 1
1100 GRILL 1
1200a LH PANEL 1
1200a LH PANEL 1
1200a LH PANEL 1
1200a LH PANEL 1
1200a LH PANEL Silver Model 1
1200a LH PANEL Package BackCountry X only 1
1200b LH PANEL TRIM 1
1200e LATCH REAR LH 1
1200f LATCH FRONT LEFT 1
1200h HOOK - LEFT 0
1250 FOAM 1
1260 FOAM 1
1260 FOAM 1
1270 FOAM 1
1270 FOAM 1
1280 FOAM 1
1300 STUD - REAR 2
1310 STUD-FRONT 2
1400 LATCH - RIGHT 1
1400 LATCH - LEFT 1
1410 POP RIVET 3/16" (50.000 per pack) 1
1800a LH ARM 1
1800b RH ARM 1
1800c LH DEFLECTOR 1
1800d RH DEFLECTOR 1
1800e BLACK LH CAP 1
1800e CAP Package X 1
1800f BLACK RH CAP 1
1800f CAP Package X 1
1800g BRIDE *BRIDE 2
1800h Torx Screw Truss Head K50X20 T20 2
1800j Torx Screw M5 X 20 4
2400 HEADLAMP 1
2400a HALOGEN BULB 60/55 W 12 V Not shown 2
2800 DEFLECTOR-AIR RH 1
2810 RONDELLE *GROMMET (10.000 per pack) 2
3000 DEFLECTOR-AIR LH 1
3200 COVER ASS Y Includes 3200 to 3200a 1
3400 TRUNK ASSEMBLY Includes 3400 to 3400a 1
3400a SEAL JOINT 2
3800 FAIRING - HEAD-LAMP 1
3800 FAIRING - HEAD-LAMP Package XRS Europe Only 1
3840 Tuflok Plastic Rivet 1
