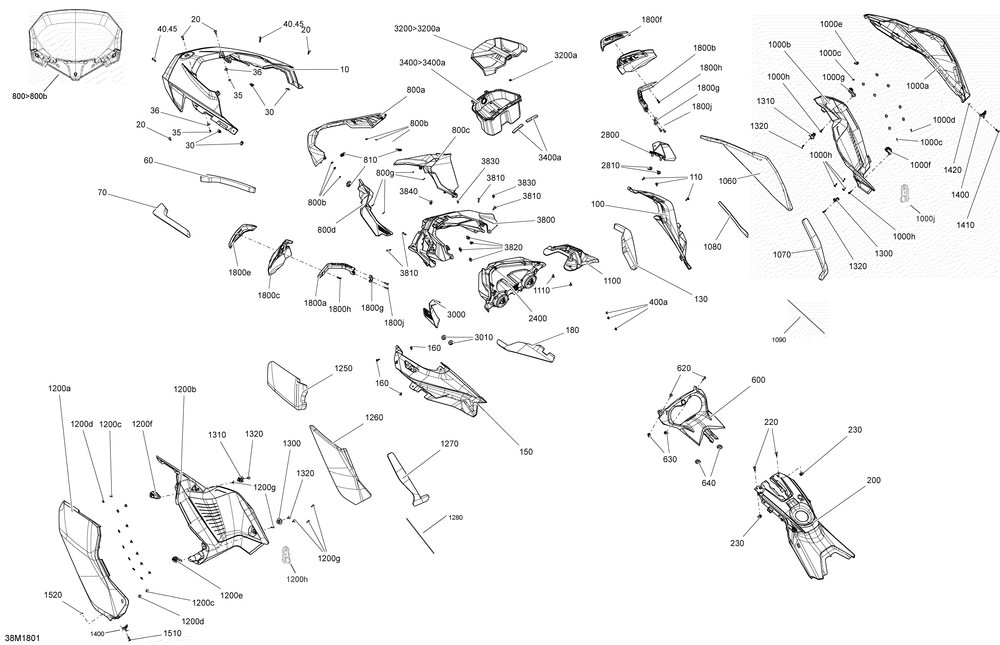

09- Hood Renegade - 850 E-TEC - XRS North America

Корзина пуста
SKI-DOO RENEGADE 850 E-TEC RENEGADE 850 E-TEC 09- Hood Renegade - 850 E-TEC - XRS North America
09- Hood Renegade - 850 E-TEC - XRS North America
№ Наименование Примечание Кол-во
10 HOOD - FRONT 1
10 HOOD - FRONT Package XRS Silver Model 1
20 Torx Screw M5 X 20 4
30 PANEL NUT M5 X 0.8 (10.000 per pack) 4
35 Elastic Flanged Nut M5 2
36 FLAT WASHER (3.000 per pack) 2
40 TORX SCREW M5 X 26 2
45 WASHER 2
60 MOUSSE CAPOT FOAM 1
70 FOAM 1
100 RH HOOD 1
100 RH HOOD Silver Model 1
110 Screw M4 X 16 3
130 FOAM 1
150 LH HOOD 1
150 LH HOOD Silver Model 1
180 FOAM 1
190 JOINT ETANCHE *GASKET 2
200 CONSOLE-REAR 1
240 CONSOLE NUT 1
600 INDICATOR SUPPORT 1
800 DEFLECTEUR WIND 1
800 DEFLECTEUR WIND 1
810 RONDELLE *GROMMET 3
1000a RH PANEL 1
1000a RH PANEL Silver Model 1
1000b RH PANEL TRIM 1
1000c Pop Rivet 3/16" 6
1000d RONDELLE *WASHER (10.000 per pack) 5
1000e PLAQUE *PLATE 1
1000f LATCH REAR RH 1
1000g LATCH 1
1000j HOOK - RIGHT 1
1060 FOAM 1
1070 FOAM 1
1080 RUBBER SHEET 1
1090 FOAM 1
1100 GRILL 1
1200a LH PANEL 1
1200a LH PANEL Silver Model 1
1200b LH PANEL TRIM 1
1200e LATCH REAR LH 1
1200f LATCH FRONT LEFT 1
1200h HOOK - LEFT 1
1250 FOAM 1
1260 FOAM 1
1270 FOAM 1
1280 FOAM 1
1300 STUD - REAR 2
1310 STUD-FRONT 2
1400 LATCH - RIGHT 1
1400 LATCH - LEFT 1
1410 POP RIVET 3/16" (50.000 per pack) 1
1800a LH ARM 1
1800b RH ARM 1
1800c LH DEFLECTOR 1
1800d RH DEFLECTOR 1
1800e BLACK LH CAP 1
1800e CAP Package X 1
1800f BLACK RH CAP 1
1800f CAP Package X 1
1800g BRIDE *BRIDE 2
1800h Torx Screw Truss Head K50X20 T20 2
1800j Torx Screw M5 X 20 4
2400 HEADLAMP 1
2400a HALOGEN BULB 60/55 W 12 V Not shown 2
2800 PLATE 1
3000 PLATE 1
3200 COVER ASS Y Includes 3200 to 3200a 1
3200a Push Nut 1
3400 TRUNK ASSEMBLY Includes 3400 to 3400a 1
3400a SEAL JOINT 2
3800 FAIRING - HEAD-LAMP 1
3800 FAIRING - HEAD-LAMP Package XRS Europe Only 1
3840 Tuflok Plastic Rivet 1
