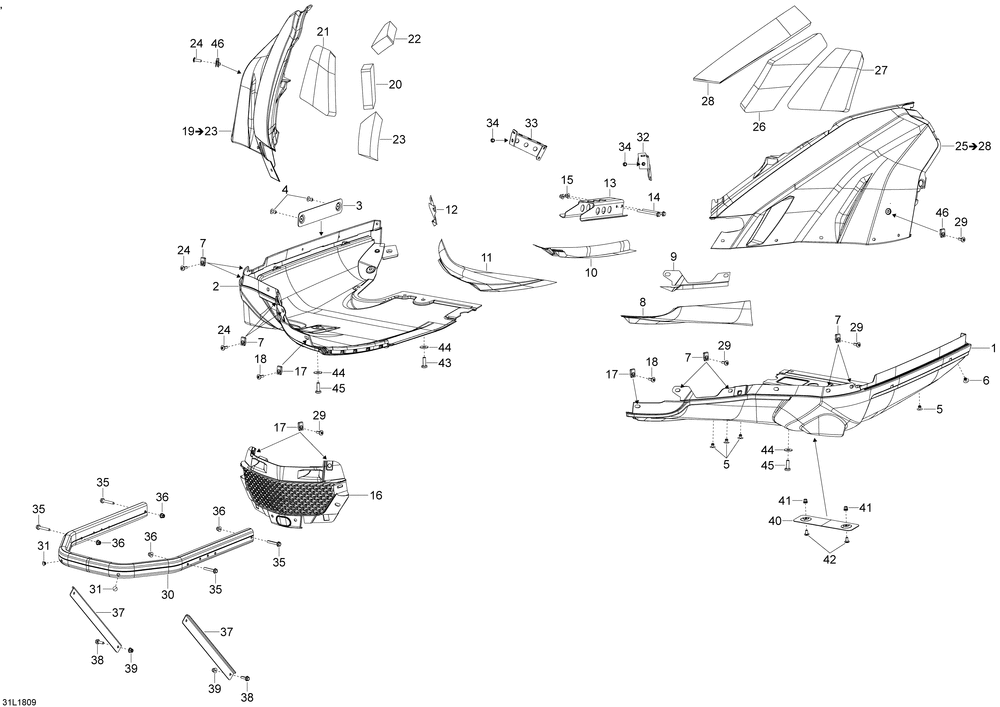

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BOTTOM-PAN LOWER LH. | 1 | |
| 2 | BOTTOM-PAN LOWER RH. | 1 | |
| 3 | HEAT ISOLATION PLATE | 1 | |
| 4 | RIVET 4.8X12 AL BLACK(1 PAC 50 PC) | 2 | |
| 5 | Pop Rivet 3/16" | 10 | |
| 6 | POP RIVET 3/16tahos_ (25.000 per pack) | 2 | |
| 7 | Panel Nut M6 X 1.0 | 8 | |
| 13 | SUPPORT | 1 | |
| 14 | HEX. FLANGE SCREW M6 X 70 | 2 | |
| 15 | Hex. Flanged Elastic Nut M6 | 2 | |
| 16 | FRONT GRILL | 1 | |
| 18 | Torx Screw M6 X 20 | 2 | |
| 19 | BLACK BOTTOM PAN ASS Y RH Includes 18 To 22 | 1 | |
| 20 | INSULATOR | 1 | |
| 21 | INSULATOR | 1 | |
| 23 | INSULATOR | 1 | |
| 25 | BLACK BOTTOM PAN ASS Y LH Includes 24 To 27 | 1 | |
| 26 | INSULATOR | 1 | |
| 27 | INSULATOR | 1 | |
| 28 | INSULATOR | 1 | |
| 30 | BUMPER CLEAR Model LE | 1 | |
| 31 | FULL MOON DART 8 MM Model-LE | 2 | |
| 32 | BOTTOM PAN FASTENER LH | 1 | |
| 33 | BOTTOM PAN FASTENER RH | 1 | |
| 34 | CLINCH NUT M6 HEXSERT | 2 | |
| 35 | HEX. FLANGED SCREW M6 X 40 (5.000 per pack) | 4 | |
| 37 | BUMPER SUPPORT Model-WT | 2 | |
| 38 | Hex. Flanged Screw M6 X 20 | 2 | |
| 40 | OIL PLATE LTS Model-550F | 1 | |
| 43 | SCREW-PAN HD.TORX M8X25 SCOTCH GRIP | 1 | |
| 44 | Flat Washer 8 mm | 3 |
