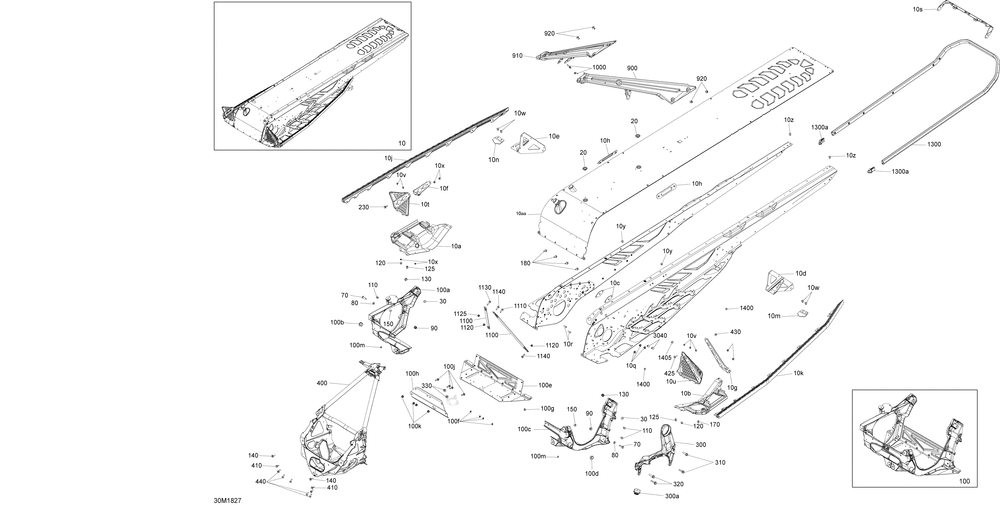

09- Frame Summit Engine 850 E-TEC - Package SP Lenght 175

SKI-DOO SUMMIT 850 E-TEC SUMMIT 850 E-TEC 09- Frame Summit Engine 850 E-TEC - Package SP Lenght 175

№	Наименование	Кол-во
10>10aa	BLACK TUNNEL MODULE 175	1
10a	FOOTREST REINFORCEMENT	1
10aa	ASSEMBLY RADIATOR	1
10b	FOOTREST REINFORCEMENT	1
10c	REINFORCEMENT PLATE Package-SP-T3 X-T3	2
10d	LH BRACKET	1
10e	RIGHT SUSPENSION BRACKET	1
10f	RIGHT REINFORCEMENT FOOTREST	1
10g	LEFT REINFORCEMENT FOOTREST	1
10h	MEMBER FIXATION PLATE	2
10j	RIGHT ROLLER	1
10k	LEFT ROLLER	1
10m	LEFT REINFORCEMENT PLATE	1
10n	RIGHT REINFORCEMENT PLATE	1
10q	Insert	4
10r	CLINCH STUD M6 X 20	2
10s	REAR CAP	1
10t	RIGHT FOOTREST	1
10u	LEFT FOOTREST	1
10v	AVIBULB *AVIBULB	26
10w	RIVET *RIVET	6
10x	HEMLOCK RIVET 6.5 MM (5.000 per pack)	4
10y	HEMLOCK RIVET 6.5 MM (5.000 per pack)	18
10z	HEMLOCK RIVET (10.000 per pack)	2
20	BLACK PLUG (2.000 per pack)	2
30	RONDELLE *WASHER (25.000 per pack)	2
70	HEX. SCREW M8 X 30	2
80	Flat Washer 8 mm	2
90	Hex. Flanged Elastic Nut M8	2
100	RIVETED MODULE E Includes 100 to 100m	1
100a	RIGHT MEMBER ASSEMBLY Includes 100a to 100b	1
100b	BUSHING	1
100c	LEFT MEMBER ASSEMBLY Includes 100c to 100d	1
100e	BOTTOM PLATE	1
100g	INSERT	1
100h	FRONT MEMBER	1
100j	HEX. FLANGED SCREW M6 X 20	4
100k	Hex. Flanged Elastic Nut M6	4
120	HEMLOCK RIVET 6.4 MM (10.000 per pack)	2
125	HEMLOCK RIVET 6.5 MM (4.000 per pack)	2
140	Hex. Flanged Screw M6 X 20	2
180	Hex. Flanged Screw M6 X 16	4
230	Hex. Flanged Screw M6 X 20, Scotch Grip	1
300	ASSEMBLY BRACE Includes 300 to 300a	1
300a	RUBBER MOUNT	1
310	SCREW-FORMING HEX.HD.FL. DIN.7500D	2
320	HEX. FLANGED SCREW M8 X 35 (10.000 per pack)	2
400	S MODULE	1
410	SCREW-FORMING HEX.HD.FL. M6 X 16	2
440	Hex. Flange Screw M6 X 16	6
900	LEFT MEMBER BLACK	1
910	RIGHT MEMBER BLACK	1
920	PAN HEAD TORX SCREW M8 X 12	4
1000	PROTRUDING STUD M5 X 20	2
1100	UPPER COLUMN	2
1125	Elastic Flanged Nut M6 X 1.0	1
1130	Hex. Flanged Screw M6 X 25	1
1300	REAR BUMPER Includes 1300 to 1300a	1
1300a	CAP	2
1400	BLACK DART 8 MM	3
1405	Black Dart 10 mm	2
3040	DART	2
