SKI-DOO TUNDRA WT 550F TUNDRA WT 550F 09- Ch
09- Ch

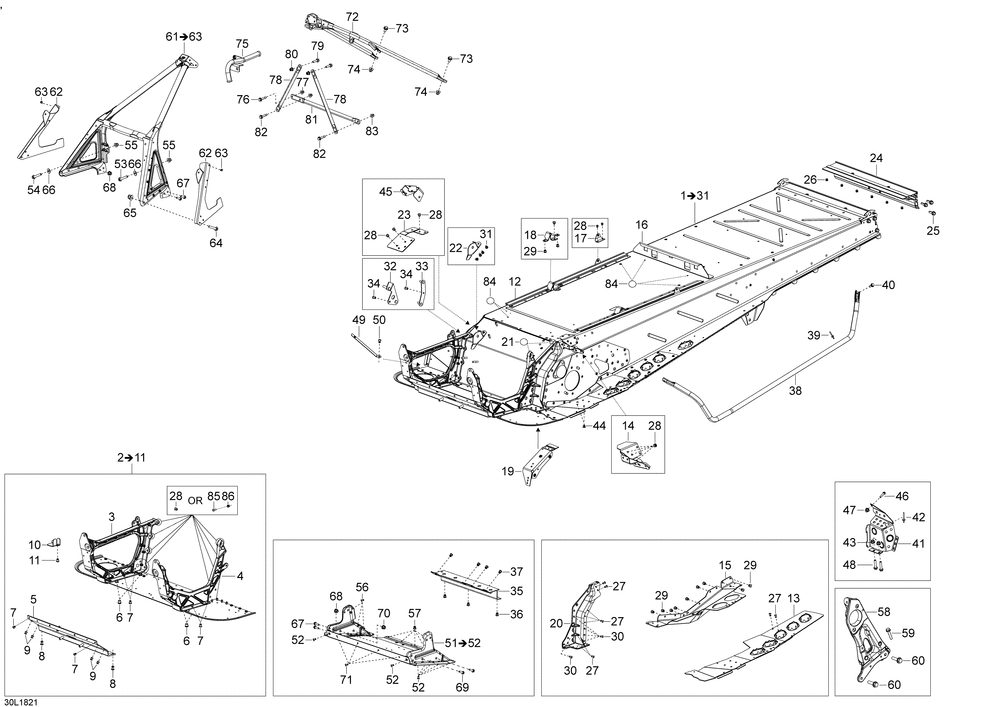

№ Наименование Примечание Кол-во
2 MODULE E 552 Includes 2 To 11 1
3 RH MEMBER 1
4 LH MEMBER 1
5 FRONT MEMBER 1
6 CLINCH NUT HEXSERT M8 4
7 AVEX RIVET (50.000 per pack) 7
8 HEMLOCK RIVET 6.5 MM (4.000 per pack) 2
9 HEMLOCK RIVET 6.5 MM (5.000 per pack) 4
11 RIVET HUCKLOK 48 MM HKLP-R6-5GAT 1
12 FASTENING RAIL 2
14 FASTENING BRACKET 1
15 DRIVE AXLE COVER LH 1
15 DRIVE AXLE COVER RH 1
16 BATTERY SUPPORT PLATE 1
17 SEAT BOX BRACKET 2
18 SUPPORT TUBE BRACKET RH 1
18 SUPPORT TUBE BRACKET LH 1
19 CLINCH NUT PLATE 1
20 FRAME CORNER LH 1
20 FRAME CORNER RH 1
21 ADHESIVE PATCH 0
22 RH.SUPPORT 1
23 CHAIN CASE SUPPORT 1
24 REAR PROFILE 59 1
25 HEX. FLANGED SCREW M8 X 25 SCOTCH GRIP 6
26 HEMLOCK RIVET 6.4 MM (10.000 per pack) 6
28 AVEX RIVET (50.000 per pack) 0
30 RIVET *RIVET 0
31 HEMLOCK RIVET 6.5 MM (5.000 per pack) 0
32 CHAIN CASE COUNTER PLATE FRONT 1
33 CHAIN CASE COUNTER PLATE REAR 1
34 Pop Rivet 3/16" 0
35 ENGINE SUPPORT 1
38 FOOTBOARD SUPPORT TUBE LH 1
38 FOOTBOARD SUPPORT TUBE RH 1
40 SCREW HEX. FLANGE M6 X 20 2
43 CLINCH NUT M6 HEXSERT 2
44 DART GS Black A19N Model (10.000 per pack) 2
45 FASTENING BRACKET 1
47 Hex. Flanged Elastic Nut M6 2
48 Torx Head Screw M6 X 16 4
49 SPRING BRACKET 1
51 MODULE S *CROSS MEMBER Includes 52 To 53 1
53 Hex. Flanged Screw M6 X 25 1
58 PULLEY SUPPORT Model-1200 4-TEC 1
60 FLANGED HEX. SCREW M8 X 30 SCOTCH GRIP 2
61 FRONT MEMBER ASSY Includes 62 To 64 1
62 BUMPER FASTENER RH 1
62 BUMPER FASTENER LH 1
64 Hex. Flanged Screw M6 X 20 6
66 FLAT WASHER (10.000 per pack) 2
72 UPPER SUPPORT TUBE WELDED M8 1
73 HEX. SCREW M8 X 20 (10.000 per pack) 2
74 Hex. Elastic Stop Nut M8 2
75 GUIDE TUBE RER 1
76 HEX. FLANGE SCREW M6 X 25 1
78 UPPER COLUMN SUPPORT Model-1200 4-TEC 2
80 Elastic Flanged Nut M6 X 1.0 2
81 UPPER COLUMN 1
