SKI-DOO TUNDRA WT 550F TUNDRA WT 550F 05- Drive Train Tundra - 550F

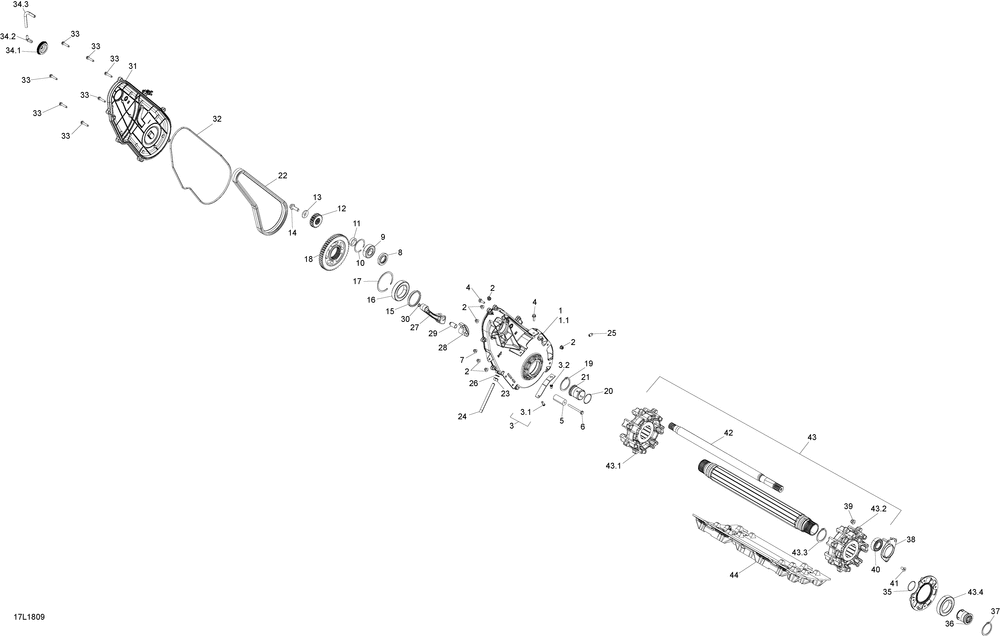

05- Drive Train Tundra - 550F
№ Наименование Примечание Кол-во
1 CHAINCASE Package Sport 1
1.1 PLATE ASSY 1
2 Hex. Flanged Elastic Nut M6 6
3 CHAINCASE COUNTER PLATE 1
3.1 CLINCH STUD M6 X 20 1
3.2 CLINCH NUT M6 HEXSERT 1
4 SCREW HEX. FLANGE M6 X 20 2
5 SLEEVE 1
6 HEX. FLANGED SCREW M6 X 70 1
7 Elastic Flanged Nut M6 X 1.0 1
8 OIL SEAL 1
9 Ball Bearing 1
10 CIRCLIP 1
11 SHIM 1
12 SPROCKET 19 TEETH Package Sport Egine 800 1
13 SPRING WASHER M10 (3.000 per pack) 1
14 HEX. FLANGED SCREW M10 X 30 SCOTCH GRIP (5.000 per pack) 1
15 SEAL 1
16 Ball Bearing 1
17 CIRCLIP 1
18 SPROCKET 49 TEETH Package SP 146 154 800ETEC 1
19 CIRCLIP 1
20 O-RING 1
21 MAGNETIC CAP 1
22 DRIVE CHAIN 104 LINKS Package Sport 1
23 Hex. Nut M10 1
24 ADJUSTMENT SCREW 1
25 MAGNETIC PLUG Package Sport 1
27 TENDEUR CHAINE *TENSIONER-CHAIN MACH. 1
28 SLIDER CHAIN 1
29 TENSIONNER AXLE 1
30 Circlip 1
31 CHAINCASE COVER ASS Y Package Sport 1
33 SCREW-FORMING HEX.HD.FL. M6 X 30 7
34.1 CAP 1
34.2 MALE CONNECTOR (5.000 per pack) 1
34.3 Hose, Polyurethane 1
38 BEARING HOUSING 1
39 Hex. Flanged Elastic Nut M8 1
40 BALL BEARING 1
41 Torx Screw M8 X 16, Scotch Grip 1
42 COUNTER SHAFT 1
43.3 BAGUE *RETAINING RING 1
44 TRACK ASS Y Includes 39 To 41 Model-North America 1
