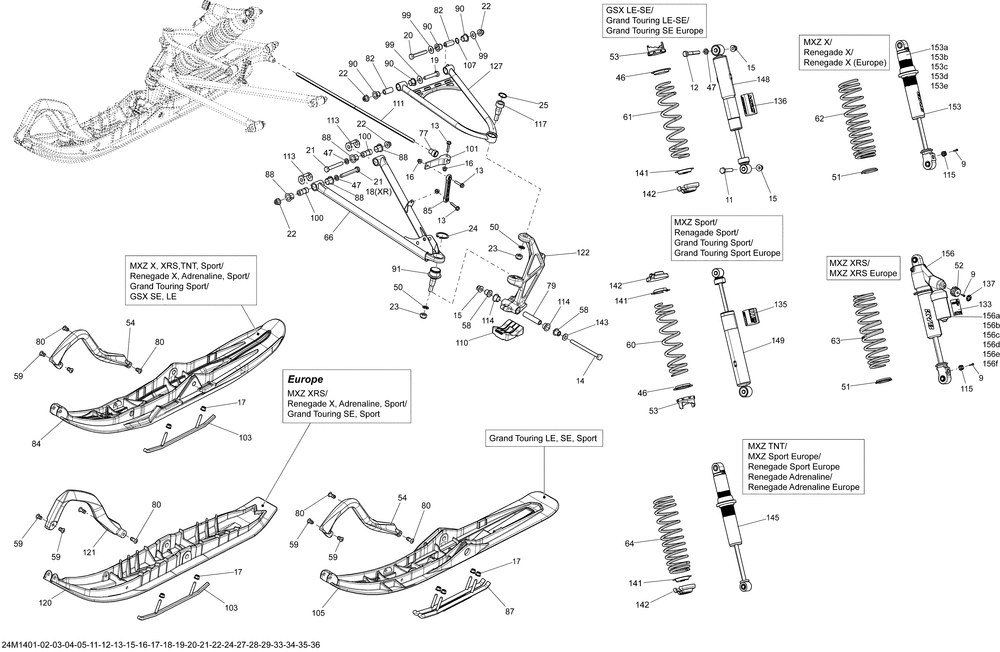

07- Front Suspension And Ski

SKI-DOO GRAND TOURING SE 12004TEC XR GRAND TOURING SE 12004TEC XR 07- Front Suspension And Ski

№	Наименование	Кол-во
11	HEX SCREW M10 X 55	2
12	HEX. SCREW M10 X 65 (5.000 per pack)	2
13	HEX FLANGED SCREW M6 X 30	6
14	HEX SCREW M10 X 130	2
15	HEX. FLANGED ELASTIC NUT M10 (10.000 per pack)	6
16	Hex. Flanged Elastic Nut M6	6
17	Hex. Flanged Elastic Nut M8	4
18	HEX. SCREW M10 X 75	2
19	SCREW HEX. M10 X 50 (4.000 per pack)	2
20	SCREW HEX. M10 X 60 (5.000 per pack)	2
21	SCREW HEX. M10 X 70	2
22	Hex. Flanged Elastic Nut M10	8
23	Hex Elastic Nut M12 X 1.25	4
24	Circlip	2
25	CIRCLIP (2.000 per pack)	2
46	Spring Guide	1
47	RONDELLE *WASHER (10.000 per pack)	6
50	RONDELLE *WASHER (5.000 per pack)	4
53	ADJUSTMENT CAM	1
53	ADJUSTEMENT CAM	1
54	BLACK HANDLE Model N	2
54	FULL MOON HANDLE Model N	2
54	BLACK HANDLE	1
58	CUSHION	4
59	RETAINER (16.000 per pack)	4
61	MAGNESUM SPRING Model-SE White-White	1
61	FULL MOON SPRING 900 ACE Model Europe	1
66	FULL MOON RH LOWER ARM	1
66	FULL MOON LH LOWER ARM	1
66	BLACK LH LOWER ARM Package-Sport	1
66	BLACK RH LOWER ARM Package-Sport	1
77	COUSSINET *BUSHING	2
79	SPACER (2.000 per pack)	2
80	RETAINER	4
82	BUSHING	4
85	Sway Bar Double Joint Link	2
87	ROUND CARBIDE RUNNER	2
88	COUSSINET *BUSHING	8
90	COUSSINET *BUSHING	8
91	LOWER BALL JOINT	2
99	RONDELLE *WASHER (5.000 per pack)	6
100	BUSHING	4
101	STABILISATOR LEVER	2
103	CARBIDE RUNNER KIT Includes 3 To 4	0
105	DEEP BLACK PILOT SKI ASS Y Model-LE	2
107	O-RING	2
110	SKI STOPPER	2
111	STABILISATEUR *STABILISATOR	1
113	WEAR PLATE	4
114	BUSHING	4
117	UPPER BALL JOINT	2
120	BLACK DS SKI 2 Includes 1 To 2	2
121	RED HANDLE	1
122	CLEAR LH SKI LEG Package-Sport	1
122	CLEAR RH SKI LEG Package-Sport	1
122	BLACK LH SKI LEG	1
122	BLACK RH SKI LEG	1
127	BLACK LH UPPER ARM 42" Package-Sport	1
127	BLACK RH UPPER ARM 42" Package-Sport	1
127	FULL MOON LH UPPER ARM 42"	1
127	FULL MOON RH UPPER ARM 42"	1
136	SHOCK DECAL HPG Package-Burton SP SP-T3	1
141	Cap	1
142	Spring Stopper	1
143	Washer	0
148	FRONT SHOCK Europe	1
