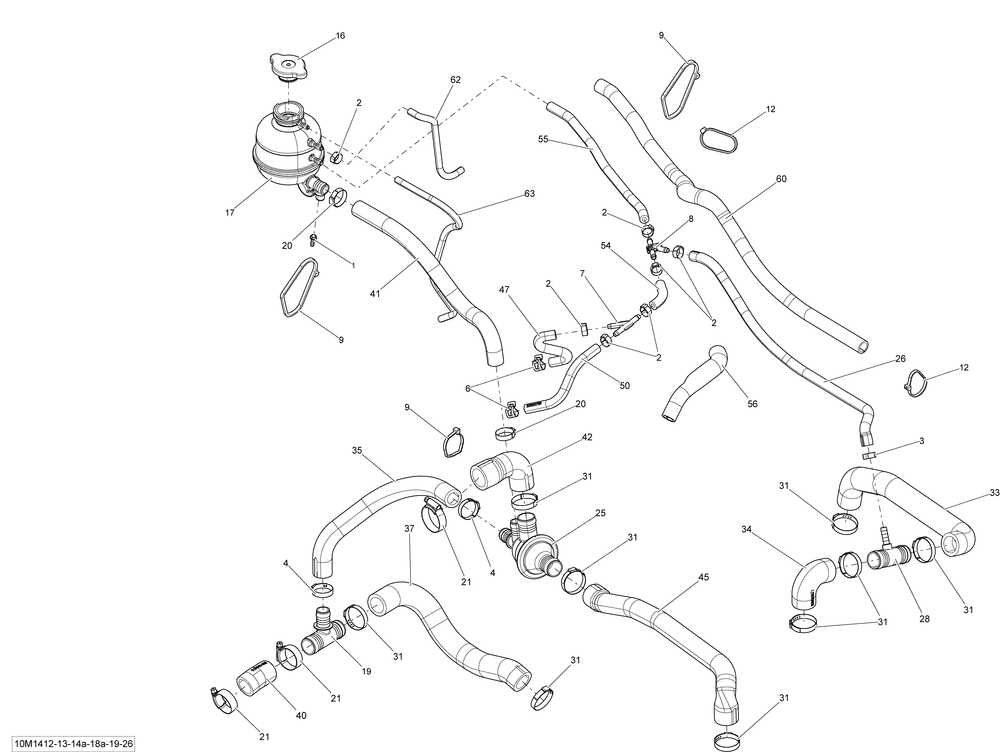

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HEX. FLANGED SCREW K50 X 16 (5.000 per pack) | 1 | |
| 2 | Oetiker Clamp | 7 | |
| 3 | Crimp Clamp | 1 | |
| 4 | Crimp Clamp | 2 | |
| 6 | NORMA SPRING CLAMP (2.000 per pack) | 2 | |
| 7 | Y-FITTING | 1 | |
| 8 | Y-FITTING | 1 | |
| 9 | Tie-Rap 350 mm | 1 | |
| 12 | Tie-Rap 180 mm | 1 | |
| 16 | Pressure Cap | 1 | |
| 17 | COOLANT TANK | 1 | |
| 19 | T-FITTING | 1 | |
| 20 | Oetiker Gear Clamp | 2 | |
| 21 | ABA GEAR CLAMP | 3 | |
| 25 | THERMOSTAT HOUSING | 1 | |
| 26 | BLEEDER HOSE | 1 | |
| 28 | T-FITTING | 1 | |
| 31 | Oetiker Gear Clamp | 9 | |
| 33 | RADIATOR HOSE | 1 | |
| 34 | RADIATOR HOSE | 1 | |
| 35 | BYPASS HOSE | 1 | |
| 37 | RADIATOR HOSE | 1 | |
| 40 | ENGINE INLET HOSE | 1 | |
| 41 | FILLING HOSE | 1 | |
| 42 | ENGINE OUTLET HOSE | 1 | |
| 45 | THERMOSTAT OUTLET HOSE | 1 | |
| 47 | BLEEDER HOSE | 1 | |
| 50 | BLEEDER HOSE | 1 | |
| 56 | PROTECTOR TUBE 16 MM | 1 | |
| 60 | Tubing 16 mm | 1 | |
| 62 | POLYURETHANE HOSE 5.2 MM (30.000 per pack) | 1 |
