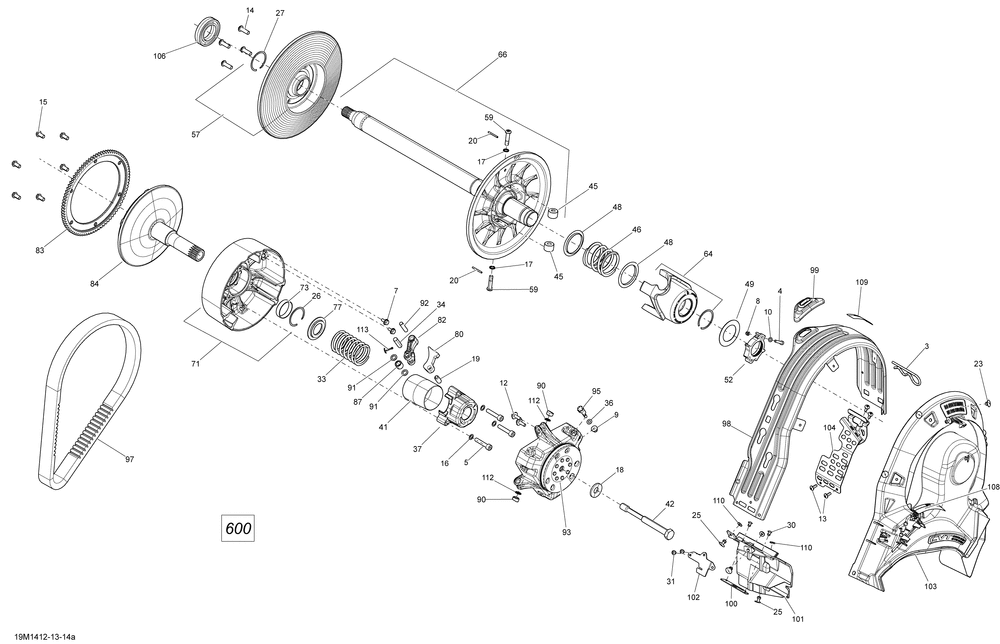

05- Pulley System

SKI-DOO MXZ SPORT 600 REV-XP MXZ SPORT 600 REV-XP 05- Pulley System _19M1412

№	Наименование	Кол-во
3	GOUP.SURETE *PIN-HAIR (5.000 per pack)	1
4	SOCKET SCREW M5 X 25 (10.000 per pack)	1
5	SOCKET HEAD SCREW M8 X 40 Model-SE (5.000 per pack)	3
7	FLANGED HEX. SCREW M6 X 12 SCOTCH GRIP (6.000 per pack)	6
8	NUT-STOP ELASTIC DIN.985 (10.000 per pack)	1
9	Hex. Flanged Elastic Nut M6	3
10	FLAT WASHER M5 (10.000 per pack)	1
12	FLANGED HEX. SCREW M6 X 18 SCOTCH GRIP (6.000 per pack)	6
13	Torx Screw M5 X 14	4
14	TORX SCREW M8 X 25 SCOTCH GRIP (4.000 per pack)	4
15	HEX. FLANGE SCREW M8 X 16 (6.000 per pack)	6
16	Lock Washer 8 mm	3
18	CONICAL SPRING WASHER M14	1
19	SPRING PIN M10 X 22 (3.000 per pack)	3
20	SPRING PIN M3 X 30 (2.000 per pack)	2
23	Black Pop Rivet 3/16"	6
25	Pop Rivet 3/16"	3
26	CIRCLIP	1
27	CIRCLIP	2
30	AVEX RIVET (50.000 per pack)	2
31	AVEX RIVET (50.000 per pack)	2
33	RESSORT *CLUTCH SPRING 600 / VIOLET & VIOLET	1
34	GOUPILLE *PIN Europe (3.000 per pack)	3
36	RONDELLE *WASHER (6.000 per pack)	3
37	SPRING COVER ASS Y	1
41	GUARD	1
42	DRIVE PULLEY BOLT	1
45	Roller	2
46	SPRING	1
48	Swivel Abutment	2
49	RONDELLE *WASHER	1
52	AJUST POULIE *PULLEY ADJUST	1
57	SLIDING FLANGE ASS Y	1
59	PIVOT STUD	2
64	CAM ASS Y	1
66	FIX FLANGE ASS Y	1
71	SLIDING FLANGE ASS Y	1
73	BUSHING	1
77	SPRING SEAT	1
80	RAMP 412 (3.000 per pack)	3
82	LEVER	3
83	RING GEAR	1
84	FIXED FLANGE ASS Y	1
87	ROLLER (3.000 per pack)	3
90	SLIDER SHOE (6.000 per pack)	6
91	STOPPER WASHER (6.000 per pack)	6
92	LEVER AXLE (3.000 per pack)	3
93	GOVERNOR CUP ASS Y	1
95	CALIBRATION SCREW (3.000 per pack)	3
97	Ремень приводной	1
98	BELT GUARD	1
99	GUIDE	1
100	REINFORCEMENT PLATE	1
101	FRONT SUPPORT	1
102	FRONT BRACKET	1
103	CVT AIR DUCT	1
104	BELT GUARD BRACKET	1
106	BALL BEARING	1
108	DECAL ENGLISH	1
109	SAFETY BELT GUARD DECAL	1
110	FLAT WASHER (10.000 per pack)	3
112	O-RING (6.000 per pack)	6
113	COTTER PIN (3.000 per pack)	3
