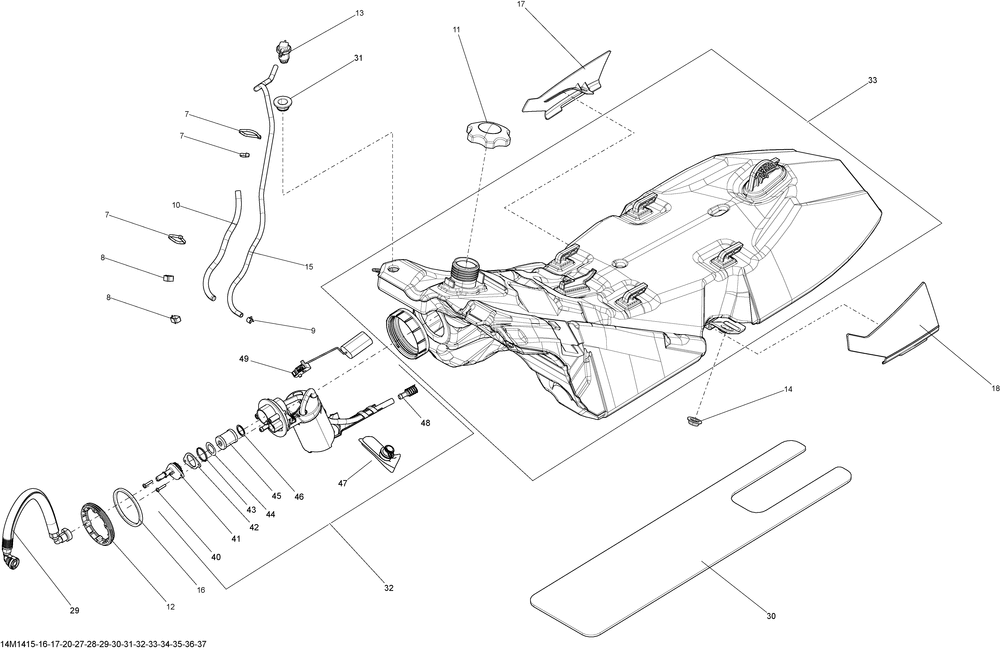

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 7 | Tie-Rap 180 mm | 0 | |
| 9 | Spring Clamp | 1 | |
| 10 | PROTECTOR TUBE | 1 | |
| 11 | FUEL TANK CAP Model-North America | 1 | |
| 11 | FUEL TANK CAP Europe Model | 1 | |
| 12 | RING | 1 | |
| 13 | CHECK VALVE | 1 | |
| 14 | SHOULDER BUSHING | 2 | |
| 15 | Hose, Polyurethane | 1 | |
| 16 | GASKET | 1 | |
| 17 | CAPUCHON DROIT *R.H. CAP | 1 | |
| 18 | CAPUCHON GAU. *L.H. CAP BOM | 1 | |
| 29 | BOYAU ASSEMBLEE*HOSE ASS`Y Includes 24 To 25 Model-1200 4-TEC | 1 | |
| 30 | INSULATING FOAM | 1 | |
| 31 | GROMMET | 1 | |
| 32 | FUEL PUMP ASS Y | 1 | |
| 33 | FUEL TANK | 1 | |
| 40 | VIS*SCREW | 1 | |
| 41 | COVER | 1 | |
| 42 | FUEL PUMP RING | 1 | |
| 43 | O-RING | 1 | |
| 44 | RONDELLE*WAVE WASHER | 1 | |
| 45 | FUEL FILTER | 1 | |
| 46 | O-RING | 1 | |
| 47 | FUEL FILTER | 1 | |
| 48 | FUEL FILTER | 1 | |
| 49 | FUEL LEVEL SENSOR | 1 |
