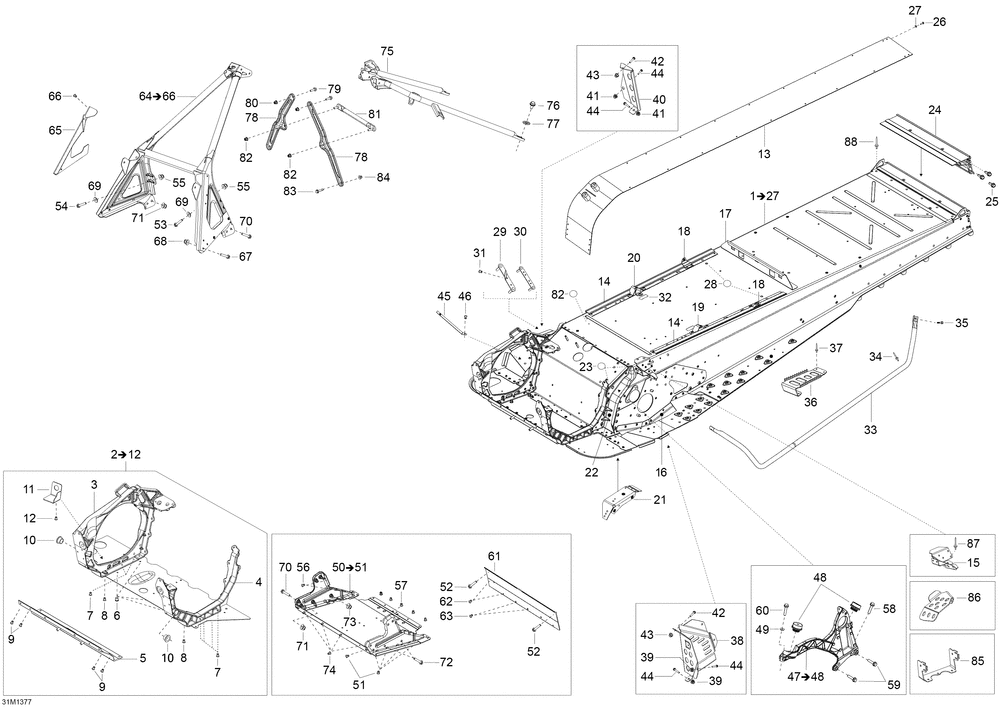

SKI-DOO Skandic SWT 600 ACE (4-strokes) XU Skandic SWT 600 ACE (4-strokes) XU 09- Frame
09- Frame
№ Наименование Примечание Кол-во
1 FRAME Includes 1 To 27 Includes 1 To 27 1
2 E MODULE Includes 2 To 11 1
3 RH SIDE MEMBER 1
4 LH SIDE MEMBER 1
5 FRONT MEMBER 1
6 CLINCH NUT HEXSERT M8 4
7 AVEX RIVET (50.000 per pack) 7
8 HEMLOCK RIVET 6.5 MM (4.000 per pack) 2
9 HEMLOCK RIVET 6.5 MM (5.000 per pack) 4
10 BUSHING 2
12 RIVET HUCKLOK 48 MM HKLP-R6-5GAT 1
13 RADIATOR TUNNEL 1
14 FASTENING RAIL 2
18 SEAT BOX BRACKET 2
19 SUPPORT TUBE BRACKET LH 1
20 SUPPORT TUBE BRACKET RH 1
21 CLINCH NUT PLATE 1
23 ADHESIVE PATCH 2
24 REAR PROFILE 1
25 HEX. FLANGED SCREW M8 X 25 SCOTCH GRIP 6
26 SCREW-SOCKET HD.DIN.912 (2.000 per pack) 1
29 GEARBOX FRONT PLATE 1
30 GEARBOX REAR PLATE 1
31 Pop Rivet 3/16" 3
32 RUBBER COVER 2
33 FOOTBOARD SUPPORT TUBE RH 1
33 FOOTBOARD SUPPORT TUBE LH 1
35 SCREW-HEX.FLANGE DIN.6921 (10.000 per pack) 2
36 FOOTREST (2.000 per pack) 2
38 TOE HOOK LH 1
39 CLINCH NUT M6 HEXSERT 2
40 TOE HOOK RH 1
43 Hex. Flanged Elastic Nut M6 2
44 TORX SCREW M6 X 16 (12.000 per pack) 4
45 SPRING BRACKET 1
46 AVEX RIVET (50.000 per pack) 1
47 BRACE ASS Y LH Includes 47 To 48 Includes 47 To 48 1
48 RUBBER MOUNT 2
49 CONICAL SPRING WASHER M8 (10.000 per pack) 1
50 MODULE S *CROSS MEMBER Includes 52 To 53 1
52 HEX. FORMING SCREW M6 X 20 (10.000 per pack) 2
53 Hex. Flanged Screw M6 X 25 1
59 HEX. FLANGED SCREW M8 X 35 SCOTCH GRIP (4.000 per pack) 2
60 HEX. FLANGED SCREW M8 X 40 SCOTCH GRIP (10.000 per pack) 1
61 ENGINE SUPPORT 1
64 FRONT MEMBER ASS Y Includes 66 To 68 1
65 BUMPER FASTENER LH 1
65 BUMPER FASTENER RH 1
67 Hex. Flanged Screw M6 X 20 6
69 FLAT WASHER (10.000 per pack) 2
75 UPPER SUPPORT TUBE WELDED 1
78 UPPER COLUMN SUPPORT Model-900 ACE 2
81 CENTER COLUMN SUPPORT Model-900 ACE 1
83 HEX FLANGED SCREW M6 X 25 (5.000 per pack) 2
85 FUSEBOX SUPPORT 1
86 BRAKE HOSE COVER Model-SWT 1
88 HEMLOCK RIVET 6.4 MM (10.000 per pack) 6
