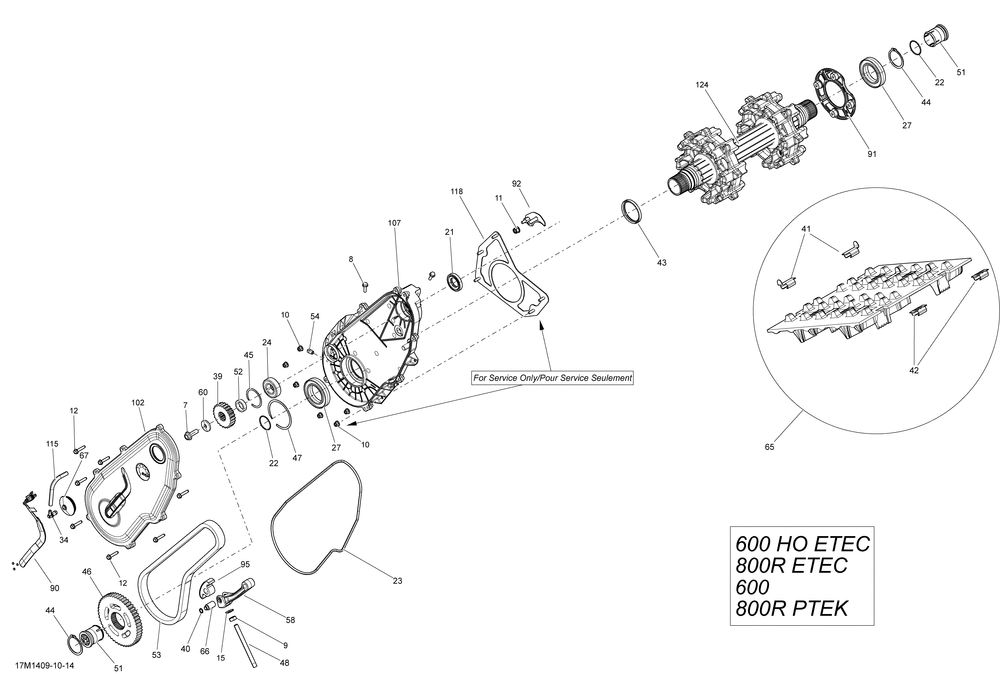

05- Drive System 800R ETEC

№	Наименование	Кол-во
7	HEX. FLANGED SCREW M10 X 30 SCOTCH GRIP (5.000 per pack)	1
8	Hex. Flanged Screw M6 X 20	2
9	Hex. Nut M10	1
10	FLANGED ELASTIC NUT M6 (8.000 per pack)	6
11	Hex. Flanged Elastic Nut M8	1
12	HEX. FLANGED SCREW M6 X 30 (10.000 per pack)	7
15	BONDED WASHER 3/8 X 7/8 (5.000 per pack)	1
21	OIL SEAL	1
22	O-RING	2
23	O-RING	1
24	Ball Bearing	1
27	Ball Bearing	2
34	MALE CONNECTOR (5.000 per pack)	1
39	SPROCKET 21 TEETH Engine 600 ETEC Package XRS	1
39	SPROCKET 19 TEETH Package Sport Egine 800	1
40	Circlip	1
41	GUIDE *CLIP Model-Europe	0
42	AGRAFE DE GUIDE*CLEAT-GUIDE	0
43	SEAL	1
44	CIRCLIP	2
45	CIRCLIP	1
46	SPROCKET 51 TEETH UJGA UJGB UJGC UJGD UXGC UXGD UXGG UXGH UXGJ	1
46	SPROCKET 49 TEETH Package SP 146 154 800ETEC	1
47	CIRCLIP	1
48	ADJUSTMENT SCREW	1
51	MAGNETIC CAP	2
52	SHIM	1
53	DRIVE CHAIN 104 LINKS Package Sport	1
53	DRIVE CHAIN 106 LINKS	1
54	MAGNETIC PLUG	1
58	CHAIN TENSIONER	1
60	SPRING WASHER M10 (3.000 per pack)	1
65	TRACK ASS Y 16" X 146" X 2.50" Package SP 146	1
65	TRACK ASS Y 16" X 154" X 2.50" Package Burton SP 154 X 154	1
65	TRACK ASS Y 16" X 163" X 2.50" Package SP 163	1
65	TRACK ASS Y 16" X 146" X 2.2"PSH Model N	1
65	TRACK ASS Y 16" X 154" X 2.2"PSH Model N	1
66	TENSIONNER AXLE	1
67	CAP	1
90	CAPTEUR *SENSOR	1
91	HOUSING BEARING	1
92	BEARING HOUSING	1
95	SLIDER CHAIN	1
102	CHAINCASE COVER ASS Y	1
107	CHAINCASE	1
115	Hose, Polyurethane	1
118	PLATE ASSY	1
124	DRIVE AXLE ASS Y	1
