SKI-DOO TUNDRA XTREME 600HOE XU TUNDRA XTREME 600HOE XU 01- Engine And Engine Support

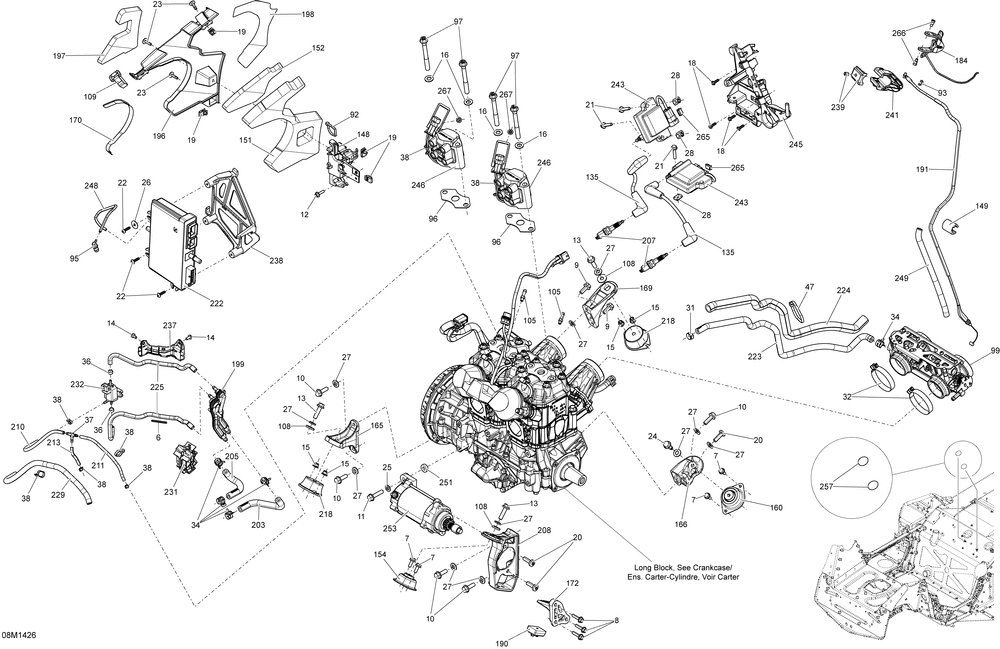

01- Engine And Engine Support
№ Наименование Примечание Кол-во
6 SPRING 1
7 Hex. Flanged Screw M6 X 16, Scotch Grip 4
8 HEX. FLANGED SCREW M6 X 25 SCOTCH GRIP (10.000 per pack) 3
9 Hex. Flanged Screw M8 X 20, Scotch Grip 2
10 HEX. FLANGED SCREW M8 X 25 SCOTCH GRIP 5
11 HEX FLANGED SCREW M8 X 35 SCOTCH GRIP 1
12 FLANGED HEX. SCREW M5 X 20 1
13 HEX. FLANGED SCREW M8 X 30 (10.000 per pack) 3
14 HEX. FLANGED SCREW M5 X 11 (10.000 per pack) 2
15 Hex. Flanged Elastic Nut M6 4
16 Flat Washer 10 mm 4
18 HEX. FLANGED SCREW K50 X 16 (5.000 per pack) 4
19 PANEL NUT M5 X 0.8 (10.000 per pack) 4
20 TORX SCREW M8 X 25 SCOTCH GRIP 3
21 FLANGED HEX. SCREW M6 X 30 (5.000 per pack) 3
22 TRUSS HEAD TORX SCREW K50 X 20 3
23 Torx Screw M5 X 20 3
24 HEX. SCREW M8 1
25 FLAT WASHER WITH TEFLON 8 MM (5.000 per pack) 1
26 FLAT WASHER (3.000 per pack) 1
27 CONICAL SPRING WASHER M8 11
28 NUT M6 (6.000 per pack) 3
31 Oetiker Clamp 1
32 GEMI CLAMP 2
34 NORMA SPRING CLAMP 5
36 OETIKER CLAMP 2
37 T-FITTING (10.000 per pack) 1
38 Tie-Rap 94 mm 7
47 Tie-Rap 350 mm 1
92 Tie-Rap 180 mm 1
93 CIRCLIP (10.000 per pack) 1
95 MALE CONNECTOR (5.000 per pack) 1
96 JOINT *GASKET 2
97 FLANGED TORX SCREW M10 X 90 4
99 THROTTLE BODY 1
105 HOSE NIPPLE 2
108 Washer Yellow 3
109 VELCRO STRIP 1
135 IGNITION CABLE 177 MM 2
148 SOLENOID SUPPORT 1
149 PROTECTOR 1
151 INTERIOR NOISE FOAM 1
152 UPPER EXTERIOR NOISE FOAM 1
154 RUBBER MOUNT 1
160 Rubber Mount 1
165 SUPPORT MOTEUR *ENGINE SUPPORT 1
166 REAR SUPPORT PTO 1
169 REAR SUPPORT MAG 1
170 HEAT SHIELD 1
172 STOPPER SUPPORT 1
184 THROTTLE HANDLE (Includes 31 To 31a ) 1
190 STOPPER 1
191 THROTTLE CABLE 1
196 NOISE SHIELD 1
197 LOWER EXTERIOR NOISE FOAM 1
198 HEAT SHIELD 1
199 MANIFOLD 1
203 RH FORMED HOSE 1
205 LH FORMED HOSE 1
207 SPARK PLUG (4.000 per pack) 2
208 SUPPORT *SUPPORT 1
210 BOYAU 4.3MM *HOSE-4.3MM (15.000 per pack) 1
218 RUBBER MOUNT 2
222 CALIBRATED MODULE 1
223 FORMED HOSE OUTPUT 1
224 Tubing 16 mm 1
225 Hose, Polyurethane 2
229 Tubing 9 mm (10.000 per pack) 1
231 MANIFOLD SUPPORT 1
232 SOLENOID VALVE 1
237 HOSE SUPPORT 1
238 CALIBRATED MODULE SUPPORT 1
239 UPPER HOUSING 1
241 LOWER HOUSING 1
243 IGNITION COIL 2
245 SUPPORT 1
246 FUEL INJECTOR 2
248 BOYAU AMORCE *LINE-PRIMER (30.000 per pack) 1
251 RONDELLE *WASHER 1
253 STARTER 1
257 ADHESIVE PATCH 2
265 CLIP 2
266 FLANGED SCREW (10.000 per pack) 2
267 Push Nut 2
