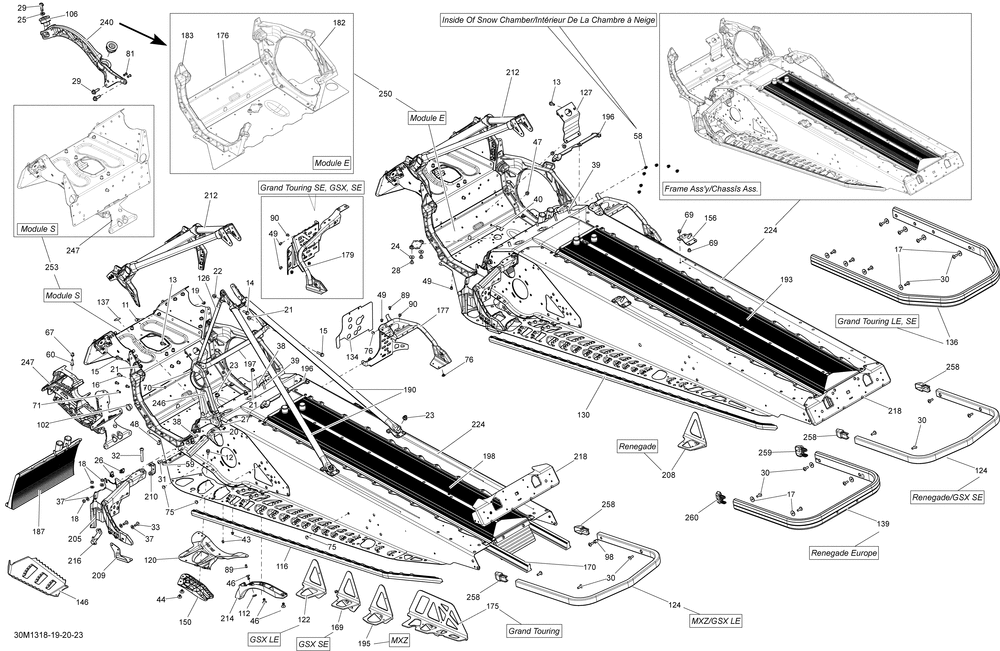

SKI-DOO GSX LE & SE 1200 XR GSX LE & SE 1200 XR 09- Frame
09- Frame
№ Наименование Примечание Кол-во
11 HEX. SCREW M6 X 14 (10.000 per pack) 1
12 Hex. Flanged Screw M6 X 12, Scotch Grip 2
13 Hex. Flanged Screw M6 X 16 2
14 Hex. Flanged Screw M6 X 20 6
15 Hex. Flanged Screw M6 X 25 4
16 HEX. FLANGED SCREW M6 X 16 (10.000 per pack) 2
17 FLAT WASHER (10.000 per pack) 0
18 Elastic Stop Nut M6 3
19 Hex. Elastic Stop Nut M6 1
20 Hex. Flanged Nut M6 0
21 Hex. Flanged Elastic Nut M6 2
22 Elastic Flanged Nut M6 X 1.0 2
23 Hex. Flanged Elastic Nut M8 0
24 Flat Washer 6 mm 2
25 CONICAL SPRING WASHER M8 (10.000 per pack) 1
26 PANEL NUT M5 X 0.8 (10.000 per pack) 2
27 TORX SCREW M8 X 25 SCOTCH GRIP 1
28 TORX TRUSS SCREW M6 X 10 2
29 HEX. FLANGED SCREW M8 X 25 NYLON (5.000 per pack) 3
30 TORX-TRUSS SCREW M6 X 18 (5.000 per pack) 0
31 Tork Screw M6 X 16 1
32 TORX SCREW M8 X 55 1
33 TORK SCREW M6 X 18 2
37 FLAT WASHER (10.000 per pack) 5
38 CLINCH STUD M6 X 20 0
39 CLINCH STUD M6 X 30 Eingine 600 H.O. E-TEC (2-Strokes) (4.000 per pack) 0
40 CLINCH STUD 0
43 Rivet 3/16" 4
44 Pop Rivet 3/16" 4
46 POP RIVET 3/16tahos_ (25.000 per pack) 3
47 HEMLOCK RIVET 6.5 MM (5.000 per pack) 0
48 HEMLOCK RIVET 6.5 MM (4.000 per pack) 0
49 STAVEX RIVET (20.000 per pack) 0
58 HENROB RIVET (10.000 per pack) 12
59 HEMLOCK RIVET (10.000 per pack) 0
69 HEMLOCK RIVET 6.4 MM (10.000 per pack) 5
70 MONOBOLT RIVET 6.4 (2.000 per pack) 2
71 MONOBOLT RIVET 4.8 MM (4.000 per pack) 6
75 BLACK DART 8 MM 0
76 FULL MOON DART 5 MM 0
81 POP RIVET 3/16tahos_ (50.000 per pack) 2
89 AVEX RIVET (50.000 per pack) 0
90 AVEX RIVET (50.000 per pack) 0
98 INSERT 1
102 BUSHING 2
106 RUBBER MOUNT 2
112 RONDELLE *WASHER (10.000 per pack) 1
116 ROULEAU DROIT *ROLLER-RH 1
116 ROULEAU *ROLLER-LH 1
120 RENFORT DR *REINFORCEMENT 1
120 RENFORT GA *REINFORCEMENT 1
122 RH SLIDE BRACKET 1
122 LH SLIDE BRACKET 1
124 BLACK REAR BUMPER North America Model 1
126 UPPER COLUMN SUPPORT Model-1200 4-TEC 2
127 MAG ENGINE SUPPORT Model-1200 4-TEC 1
130 RH ROLLER 1
130 LH ROLLER Grand Touring SE 1
130 LH ROLLER GSX SE 1200 1
134 HEAT SHIELD 1
137 ADHESIVE PATCH 1
150 RH DEFLECTOR 1
150 LH DEFLECTOR 1
156 RH REAR BASE 1
156 LH REAR BASE 1
169 RH SLIDE BRACKET 1
169 LH SLIDE BRACKET 1
170 PROT. CHASSIS *TUNNEL PROT. 2
176 FRONT MEMBER 1
177 ETRIER DROIT *RH.STIRUP 1
179 ETRIER GA *LH.STIRUP GSX Grand Touring SE 1
182 RH SIDE MEMBER 1
183 LH SIDE MEMBER 1
187 FRONT RADIATOR ASS Y 1
190 REAR MEMBER 1
193 REAR RADIATOR ASS Y 1
196 JOINT *SEAL 1
197 CENTER COLUMN SUPPORT Model-1200 4-TEC 1
198 REAR RADIATOR ASS Y 1
205 ETRIER GA. *LH.STIRUP 1
209 SUPPORT 1
210 U-ATTACH 1
212 FRONT MEMBER Model-1200 4-TEC 1
214 FRONT PROTECTOR 1
216 ATTACHE *ATTACH 1
218 REAR CAP 1
224 FRAME GSX SE XR BLACK GSX SE 1200 1
224 FRAME 120 XR BLACK GSX LE 1
240 BRACE ASS Y Includes 53 To 54 Model-1200 4-TEC 1
246 PULLEY SUPPORT 1
247 FRONT SUSPENSION SUPPORT 1
250 E MODULE 1
253 MODULE S *CROSS MEMBER Grand Touring GSX SE 1
253 MODULE S *CROSS MEMBER 1
258 BLACK CAP North America Model 2
