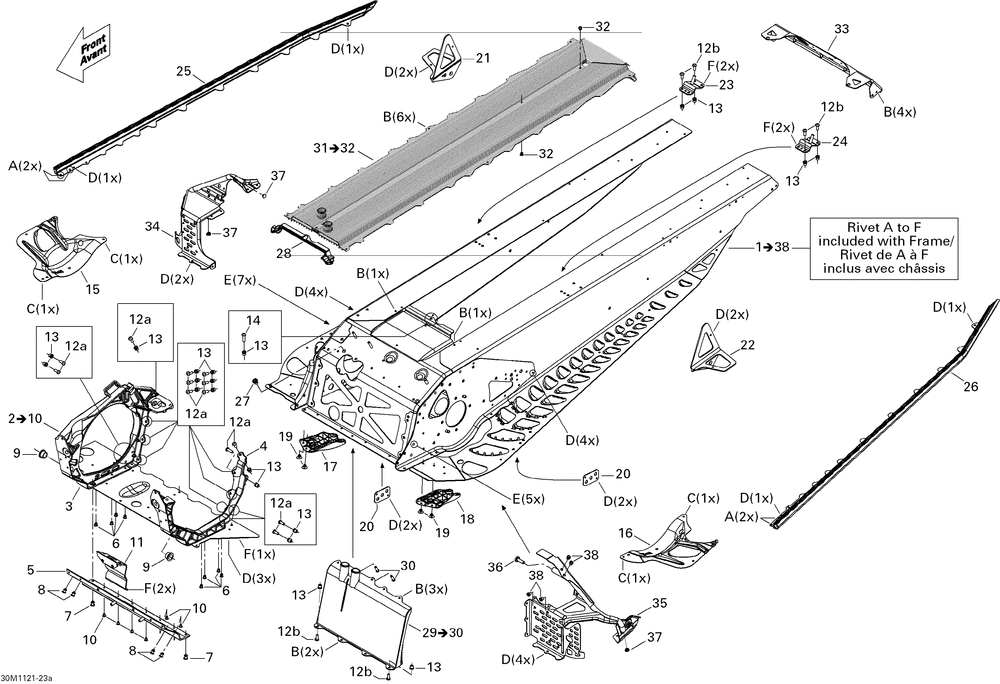

09- Frame LE

№	Наименование	Кол-во
A	Pop Rivet 3/16"	4
B	AVEX RIVET (50.000 per pack)	17
C	AVEX RIVET (50.000 per pack)	4
E	HENROB RIVET (10.000 per pack)	12
F	HEMLOCK RIVET 6.4 MM (10.000 per pack)	7
1	FRAME 120" ASS Y Includes 1 to 38	1
2	E-MODULE ASS Y Includes 2 to 10	1
3	RH MEMBER	1
4	LH MEMBER	1
5	FRONT MEMBER	1
6	STAVEX RIVET (20.000 per pack)	8
7	HEMLOCK RIVET 6.5 MM (4.000 per pack)	2
8	HEMLOCK RIVET 6.5 MM (5.000 per pack)	4
9	BUSHING	2
11	MAG ENGINE SUPPORT Model-1200 4-TEC	1
12a	Hex. Flanged Screw M6 X 20	13
12b	Hex. Flanged Screw M6 X 16	6
13	Hex. Flanged Elastic Nut M6	20
15	RENFORT DR *REINFORCEMENT	1
16	RENFORT GA *REINFORCEMENT	1
17	RH DEFLECTOR	1
18	LH DEFLECTOR	1
19	Pop Rivet 3/16"	4
20	REINFORCEMENT PLATE	2
21	RH SLIDE BRACKET	1
22	LH SLIDE BRACKET	1
23	RH REAR BASE	1
24	LH REAR BASE	1
25	ROULEAU DROIT *ROLLER-RH	1
26	ROULEAU *ROLLER-LH	1
27	INSERT	1
28	JOINT *SEAL	1
29	FRONT RADIATOR ASS Y	1
30	CLINCH STUD M6 X 20	2
31	REAR RADIATOR ASS Y	1
33	REAR CAP	1
34	ETRIER DROIT *RH.STIRUP	1
35	ETRIER GA *LH.STIRUP GSX Grand Touring SE	1
36	TORX SCREW M8 X 25 SCOTCH GRIP	1
37	FULL MOON DART 5 MM	3
38	INSERT	4
