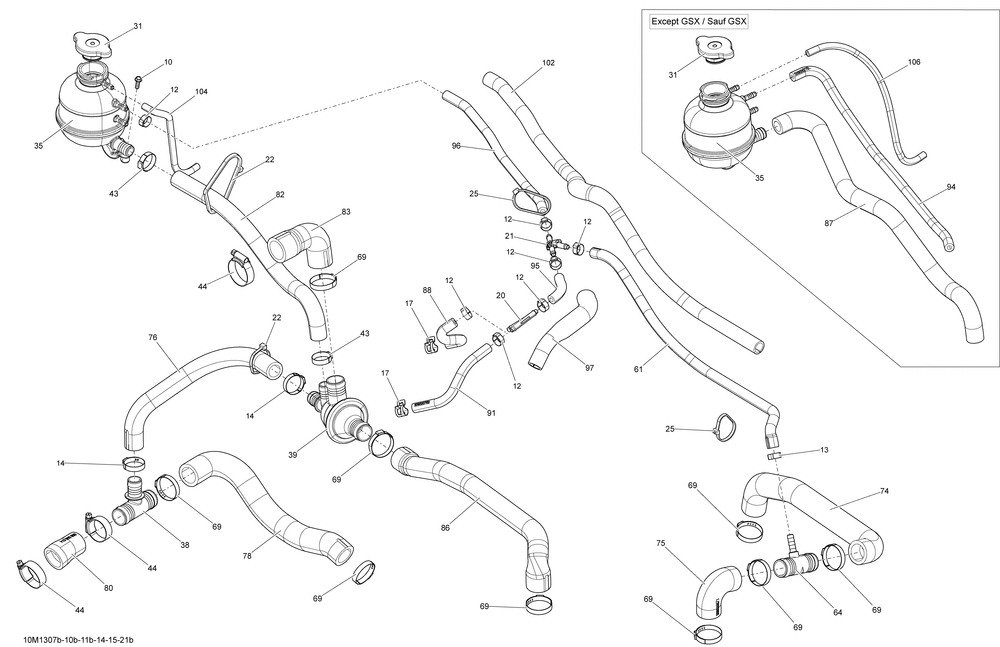

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 10 | HEX. FLANGED SCREW K50 X 16 (5.000 per pack) | 1 | |
| 12 | Oetiker Clamp | 7 | |
| 13 | Crimp Clamp | 1 | |
| 14 | Crimp Clamp | 2 | |
| 17 | NORMA SPRING CLAMP (2.000 per pack) | 2 | |
| 20 | Y-FITTING | 1 | |
| 21 | Y-FITTING | 1 | |
| 22 | Tie-Rap 350 mm | 0 | |
| 25 | Tie-Rap 180 mm | 2 | |
| 31 | Pressure Cap | 1 | |
| 35 | COOLANT TANK | 1 | |
| 38 | T-FITTING | 1 | |
| 39 | THERMOSTAT HOUSING | 1 | |
| 43 | Oetiker Gear Clamp | 2 | |
| 44 | ABA GEAR CLAMP | 3 | |
| 61 | BLEEDER HOSE | 1 | |
| 64 | T-FITTING | 1 | |
| 69 | Oetiker Gear Clamp | 9 | |
| 74 | RADIATOR HOSE | 1 | |
| 75 | RADIATOR HOSE | 1 | |
| 76 | BYPASS HOSE | 1 | |
| 78 | RADIATOR HOSE | 1 | |
| 80 | ENGINE INLET HOSE 800R E-TEC | 1 | |
| 83 | ENGINE OUTLET HOSE | 1 | |
| 86 | THERMOSTAT OUTLET HOSE | 1 | |
| 87 | FILLING HOSE 800R ETEC Except GSX | 1 | |
| 88 | BLEEDER HOSE | 1 | |
| 91 | BLEEDER HOSE | 1 | |
| 94 | BLEEDER HOSE 800R ETEC Except GSX | 1 | |
| 97 | PROTECTOR TUBE 16 MM | 1 | |
| 102 | Tubing 16 mm | 1 | |
| 106 | POLYURETHANE HOSE 5.2 MM (30.000 per pack) | 1 |
