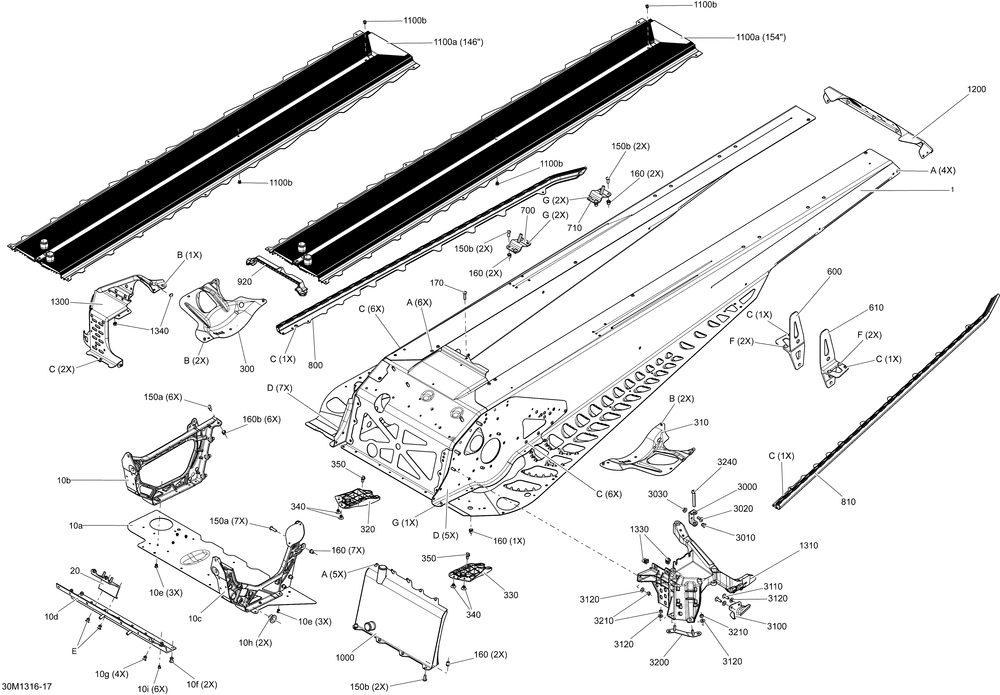

09- Frame 154

№	Наименование	Кол-во
A	AVEX RIVET (50.000 per pack)	15
B	AVEX RIVET (50.000 per pack)	5
D	HENROB RIVET (10.000 per pack)	12
G	HEMLOCK RIVET 6.4 MM (10.000 per pack)	5
1	FRAME ASS Y Includes 1 to G	1
10a	FRONT E MODULE	1
10b	RH MEMBER	1
10c	LH MEMBER	1
10d	FRONT MEMBER	1
10e	STAVEX RIVET (20.000 per pack)	6
10f	HEMLOCK RIVET 6.5 MM (4.000 per pack)	2
10g	HEMLOCK RIVET 6.5 MM (5.000 per pack)	4
10h	BUSHING	2
20	MAG ENGINE SUPPORT	1
150a	Hex. Flanged Screw M6 X 20	13
150b	Hex. Flanged Screw M6 X 16	6
160	Hex. Flanged Elastic Nut M6	20
300	RENFORT DR *REINFORCEMENT	1
310	RENFORT GA *REINFORCEMENT	1
320	RH DEFLECTOR	1
330	LH DEFLECTOR	1
340	Pop Rivet 3/16"	4
350	Hex. Flanged Screw M6 X 12, Scotch Grip	2
600	RH SUSPENSION BRACKET	1
610	LH SUSPENSION BRACKET	1
700	RH REAR BASE	1
710	LH REAR BASE	1
800	ROULEAU DROIT *RH.ROLLER	1
810	ROULEAU GAUCHE *LH.ROLLER	1
920	JOINT *SEAL	1
1000	FRONT RADIATOR	1
1100a	REAR RADIATOR ASS Y 154" 154"	1
1200	REAR CAP	1
1300	ETRIER DROIT *RH.STIRUP	1
1310	ETRIER GA. *LH.STIRUP	1
1330	PANEL NUT M5 X 0.8 (10.000 per pack)	2
1340	FULL MOON DART 5 MM	2
3000	U-ATTACH	1
3010	HEMLOCK RIVET (10.000 per pack)	1
3020	Tork Screw M6 X 16	1
3030	Hex. Flanged Nut M6	1
3100	SUPPORT	1
3110	TORK SCREW M6 X 18	2
3120	FLAT WASHER (10.000 per pack)	5
3200	ATTACHE *ATTACH	1
3210	Elastic Stop Nut M6	3
3240	TORX SCREW M8 X 55	1
