SKI-DOO FREERIDE 137, 146, 154, 800RE XP FREERIDE 137, 146, 154, 800RE XP 07- Front Suspension And Ski

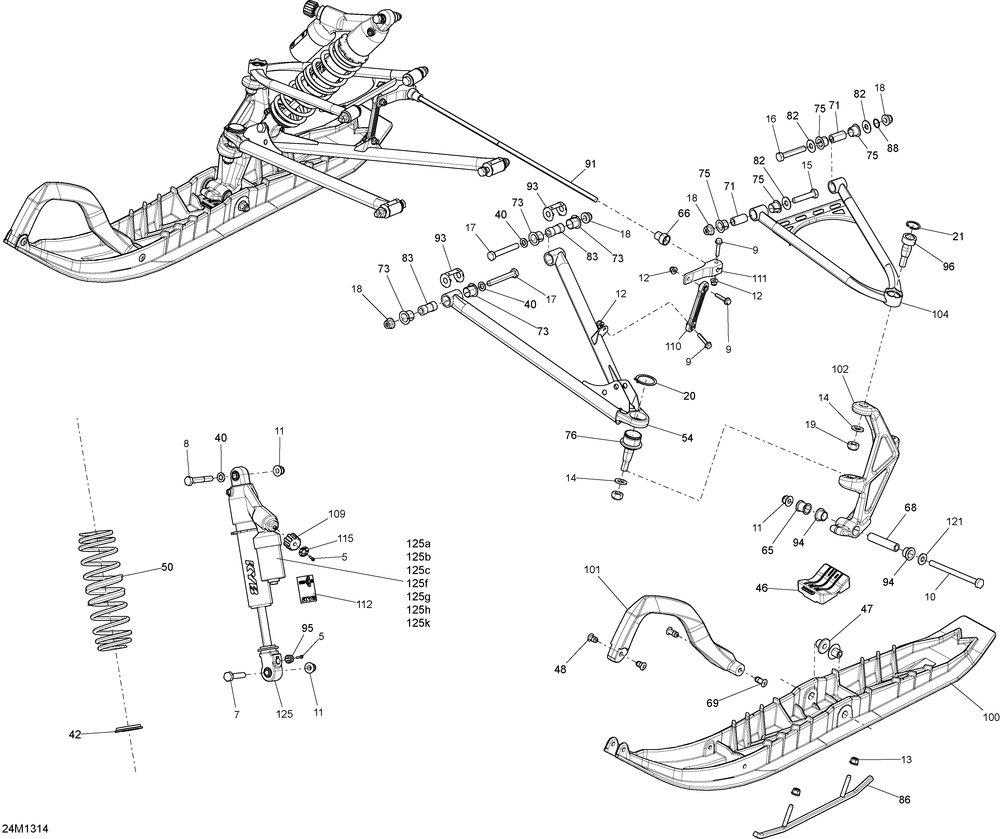

07- Front Suspension And Ski
№ Наименование Примечание Кол-во
5 Allen Screw M3 X 0.5 X 10 4
7 HEX SCREW M10 X 55 2
8 HEX. SCREW M10 X 65 (5.000 per pack) 2
9 HEX FLANGED SCREW M6 X 30 4
10 HEX SCREW M10 X 130 2
11 Hex. Elast. Flanged Nut M10 6
12 Hex. Flanged Elastic Nut M6 6
13 Hex. Flanged Elastic Nut M8 4
14 RONDELLE *WASHER (5.000 per pack) 4
15 SCREW HEX. M10 X 50 (4.000 per pack) 2
16 SCREW HEX. M10 X 60 (5.000 per pack) 2
17 SCREW HEX. M10 X 70 4
18 HEX. ELASTIC HEX. NUT M10 (5.000 per pack) 8
19 Hex Elastic Nut M12 X 1.25 4
20 Circlip 2
21 CIRCLIP (2.000 per pack) 2
40 RONDELLE *WASHER (10.000 per pack) 6
42 SPRING STOPPER Package BCX Europe 2
46 SKI STOPPER 2
47 CUSHION 4
48 RETAINER (16.000 per pack) 4
50 DEEP BLACK SPRING Package-XRS 2
54 BLACK LH LOWER ARM 1
54 BLACK RH LOWER ARM 1
65 SPACER 2
66 COUSSINET *BUSHING 2
68 SPACER (2.000 per pack) 2
69 RETAINER 2
71 BUSHING 4
73 COUSSINET *BUSHING 8
75 COUSSINET *BUSHING 8
76 LOWER BALL JOINT 2
82 RONDELLE *WASHER (5.000 per pack) 6
83 BUSHING Package-X-T3 X 4
86 CARBIDE RUNNER KIT North America models 2
88 O-RING 2
91 STABILISATEUR *STABILISATOR 1
93 WEAR PLATE 4
94 BUSHING 4
95 ADJUSTMENT KNOB 2
96 UPPER BALL JOINT 2
100 BLACK PILOT SKI ASS Y GTX Europe 2
101 BLACK HANDLE 2
102 ORANGE RH SKI LEG FREERIDE 1
102 ORANGE LH SKI LEG FREERIDE 1
104 LH UPPER ARM 1
104 RH UPPER ARM 1
109 ADJUSTMENT KNOB ASS Y 2
110 DOUBLE BALL JOINT LINK 1
110 DOUBLE BALL JOINT LINK 1
111 STABILISATOR LEVER 2
112 SHOCK ADJUSTMENT DECAL Package-XRS 2
115 SHOCK KNOB ADJUSTMENT DECAL 2
121 Washer 2
125 LH FRONT SHOCK 1
125 RH FRONT SHOCK 1
125a O-RING 2
125b SCREW *VIS 2
125c AIR VALVE 2
125g O-RING 2
125h PISTON RING 2
125k O-RING 2
