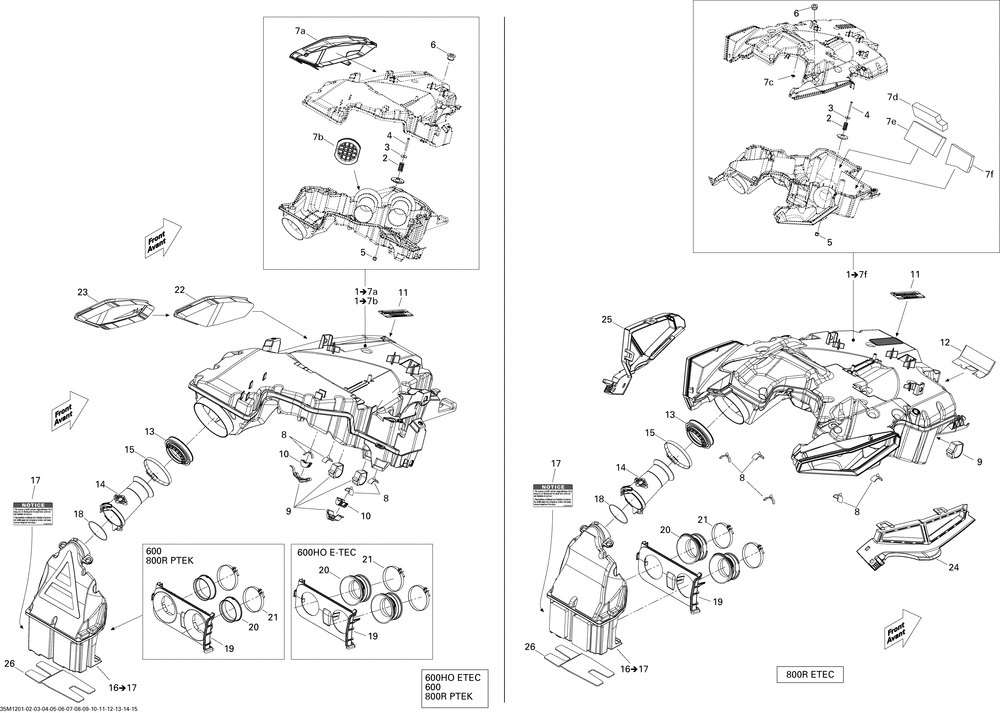

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SECONDARY CHAMBER ASS Y 800RE | 1 | |
| 2 | SPRING | 1 | |
| 3 | Flat Washer | 1 | |
| 4 | SOCKET HEAD SCREW M4 X 40 SM5 (10.000 per pack) | 1 | |
| 5 | Elastic Stop Nut M4 | 1 | |
| 6 | GROMMET | 1 | |
| 7c | PUSH NUT (10.000 per pack) | 1 | |
| 7d | LH UPPER FOAM 800RE | 1 | |
| 7e | LH LOWER FOAM 800RE | 1 | |
| 7f | RH LOWER FOAM 800RE | 1 | |
| 8 | STOPPER | 5 | |
| 9 | VELCRO STRIP | 1 | |
| 11 | CAUTION DECAL HOT PARTS | 1 | |
| 12 | HEAT SHIELD 800RE | 1 | |
| 13 | INTAKE ADAPTOR | 1 | |
| 14 | FLUTE | 1 | |
| 15 | NORMA CLAMP | 1 | |
| 16 | PRIMARY CHAMBER ASS Y Includes 32 To 32a | 1 | |
| 17 | DECAL AIR INTAKE | 1 | |
| 18 | O-RING | 1 | |
| 19 | PLATE ADAPTER | 1 | |
| 20 | AIR INTAKE ADAPTER | 2 | |
| 21 | Gemi Clamp | 2 | |
| 24 | RH INTAKE AIR FILTER 800RE | 1 | |
| 25 | LH INTAKE AIR FILTER 800RE | 1 | |
| 26 | INSULATED FOAM | 1 |
