SKI-DOO MXZ X 800RETEC XP MXZ X 800RETEC XP 08- Rear Suspension Front Arm And Base

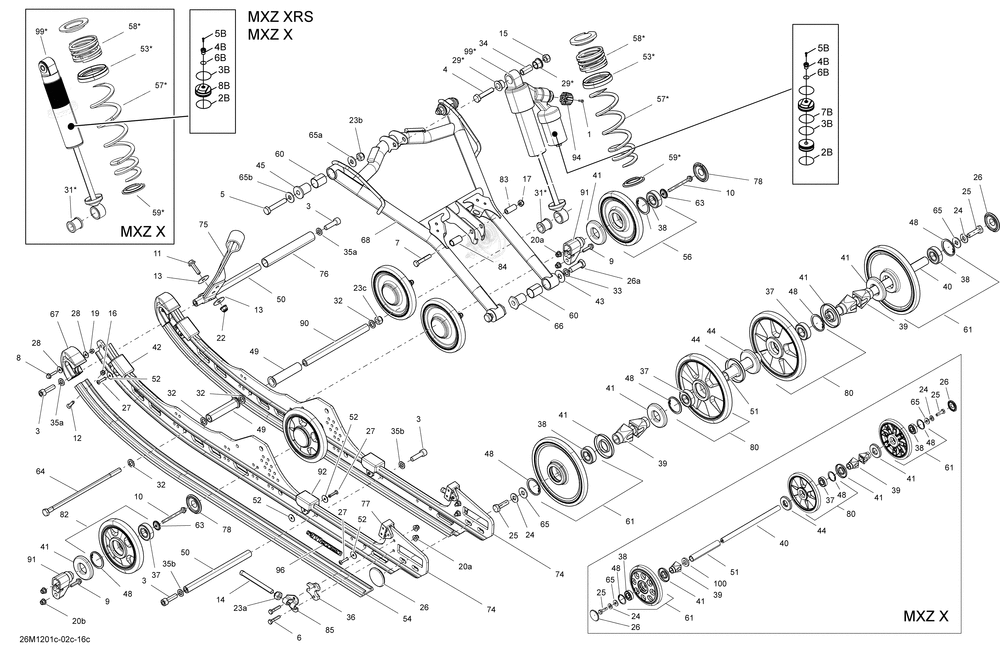

08- Rear Suspension Front Arm And Base
№ Наименование Примечание Кол-во
1 SOCKET SCREW M3 X 10 Package Backcountry X (5.000 per pack) 1
2B O-RING 1
3 SOCKET HEAD SCREW M10 X 35 4
4 HEX. SCREW M10 X 50 (10.000 per pack) 1
4B AIR VALVE 1
5 Hex. Cap Screw M10 X 60 2
5B SCREW *VIS 1
6 HEX. CAP SCREW M6 X 30 (2.000 per pack) 4
6B O-RING 1
8 HEX. FLANGED SCREW M5 X 25 2
9 HEX. FLANGE SCREW M6 X 25 6
10 HEX. FLANGE SCREW M6 X 70 6
11 HEX. FLANGED SCREW M8 X 30 (10.000 per pack) 1
12 PHILLIPS SCREW M6 X 25 (4.000 per pack) 2
13 FLAT WASHER (25.000 per pack) 2
14 HEX SCREW M10 X 100 2
15 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 1
16 Elastic Stop Nut M6 2
19 FLANGED ELASTIC NUT M5 (4.000 per pack) 2
20a Hex. Flanged Elastic Nut M6 12
20b Elastic Flanged Nut M6 X 1.0 4
22 Hex. Flanged Elastic Nut M8 1
23a Elastic Locking Nut M10 2
24 CONICAL SPRING WASHER 10 MM (10.000 per pack) 2
25 HEX. SCREW WITH NYLON (10.000 per pack) 2
26 BLACK WHEEL CAP 2
26a HEX. CAP SCREW M12 X 35 (5.000 per pack) 2
27 POP RIVET 3/16" (5.000 per pack) 6
28 RONDELLE *WASHER (50.000 per pack) 4
29 Bushing Urethane 2
31 COUSSINET URETH*CUSHION-URETH. 1
32 RONDELLE *WASHER (25.000 per pack) 4
33 RONDELLE *WASHER (5.000 per pack) 2
34 Bushing 1
35a RONDELLE *WASHER (10.000 per pack) 2
35b Washer 2
36 SPACER 2
37 BALL BEARING 4
39 REAR WHEEL SPACER 10
40 REAR AXLE 1
41 LABYRINTH SEAL 16
42 RUBBER STOPPER 2
43 RONDELLE *WASHER (5.000 per pack) 2
44 LABYRINTH SEAL 4
45 AXE *AXLE 2
48 RETAINING RING 0
49 ENTRETOISE *SPACER 2
50 AXLE STRAP 2
51 SPACER 1
52 RONDELLE * WASHER (6.000 per pack) 12
53 SPRING SPACER 1
54 BLACK SLIDER SHOE 120" 2
56 WHEEL 141 ASS Y 4
57 BLACK SPRING 1
58 BLACK SPRING 1
59 SPRING STOPPER Package BCX Europe 1
60 COUSSINET *BUSHING 4
61 DEEP BLACK WHEEL ASS Y 180 MM 2
63 WHEEL CUP M6 6
64 BOLT M10 X 251MM 1
65 RONDELLE *WASHER (3.000 per pack) 2
65a RONDELLE *WASHER (4.000 per pack) 2
66 LOWER AXLE 2
67 SLIDE PROTECTOR 2
68 BARS AVANT S. *FRONT ARM W. 1
74 BLACK RUNNER 120 Black-Black Model 1
74 YELLOW RUNNER 120 Black-White Model 1
75 STOPPER STRAP 1
76 SPACER 1
77 RUBBER STOPPER 2
80 DEEP BLACK WHEEL ASS Y 180 MM 1
82 DEEP BLACK WHEEL ASS Y 141 MM 2
84 COUSSINET *CUSHION 1
85 TENDEUR *TENSIONER 2
90 PIVOT AXLE 1
91 CASTED SUPPORT 6
92 RUBBER STOPPER 2
94 SHOCK ADJUSTER KNOB 1
96 RUNNER DECAL 2
99 CENTER SHOCK ASS Y Includes 90a to 49g 1
100 RONDELLE *WASHER 1
