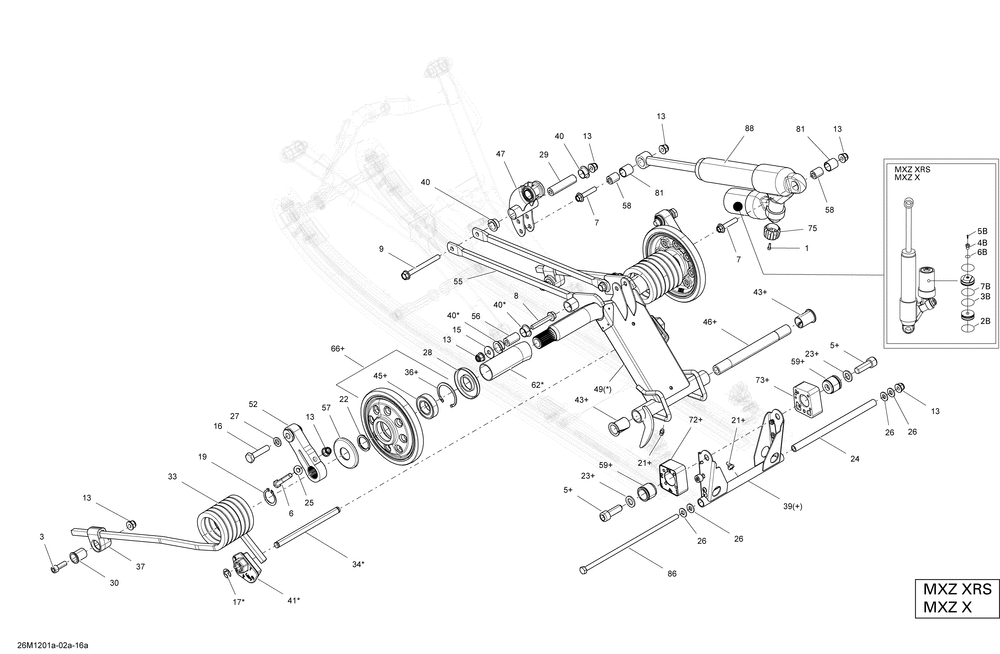

08- Rear Suspension Rear Arm Fixe

№	Наименование	Кол-во
1	SOCKET SCREW M3 X 10 Package Backcountry X (5.000 per pack)	1
2B	O-RING	1
3	SOCKET SCREW M8 X 25 (2.000 per pack)	2
3B	PISTON RING	1
4B	AIR VALVE	1
5	SOCKET HEAD SCREW M12 X 35 SCOTCH GRIP (5.000 per pack)	2
5B	SCREW *VIS	1
6	HEX. SCREW M8 X 50 (10.000 per pack)	1
6B	O-RING	1
7	Hex. Flanged Screw M8 X 40	2
7B	O-RING	1
8	HEX. FLANGED SCREW M8 X 50 Not Shown (10.000 per pack)	2
9	SCREW-HEX.FLANGE DIN.6921 (2.000 per pack)	1
13	Hex. Flanged Elastic Nut M8	9
15	Flat Washer 8 mm	2
16	CAP SCREW HEX. M10 X 40	2
19	RETAINING RING	2
21	GREASE FITTING (10.000 per pack)	1
22	AXLE SPRING	2
23	FLAT WASHER (10.000 per pack)	2
24	PIVOT ARM AXLE	1
25	Washer	1
26	Washer	4
27	Washer	2
28	LABYRINTH SEAL	2
29	AXLE BAR (LONG) Model-LE	1
30	RETAINER CUSHION (2.000 per pack)	2
33	BLACK RH SPRING SQUARE	1
33	BLACK LH SPRING SQUARE	1
36	RETAINING RING	2
37	SPRING SUPPORT	2
39	PIVOT ARM ASS Y	1
40	SWIVEL BUSHING	2
43	CUSHION	2
45	BALL BEARING	2
46	LOWER SHAFT	1
47	ROCKER	1
49	REAR ARM ASS`Y	1
52	EXTENSION ARM ASS Y Includes 64a to 64e	2
55	TIGE ACCEL. *LINK ROD	2
56	AXE BARRE *AXLE-BAR	2
57	LABYRINTH RING	2
58	REAR SHOCK AXLE	2
59	GUIDE BLOCK	2
62	BUSHING	2
66	BLACK WHEEL ASS Y 155 MM	2
72	LH CAM BLOCK	1
73	RH CAM BLOCK	1
75	SHOCK ADJUSTER KNOB	1
81	BUSHING	2
86	BOLT M8 X 248MM	1
88	REAR SHOCK (Includes 95 To 95f North America )	1
