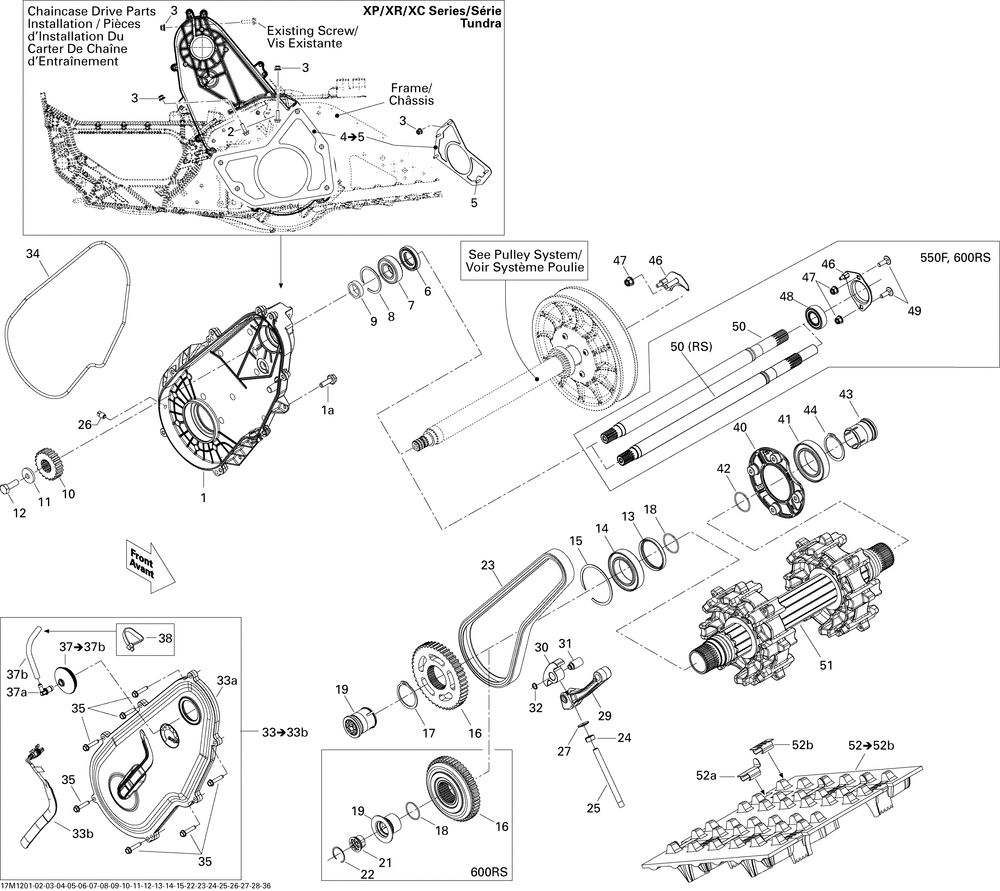

05- Drive System 600 HO ETEC

№	Наименование	Кол-во
1	CHAINCASE	1
2	Hex. Flanged Screw M6 X 20	2
3	FLANGED ELASTIC NUT M6 (8.000 per pack)	6
4	PLATE ASSY	1
6	OIL SEAL	1
7	Ball Bearing	1
8	CIRCLIP	1
9	SHIM	1
10	SPROCKET 21 TEETH Engine 600 ETEC Package XRS	1
10	SPROCKET 19 TEETH Package Sport Egine 800	1
11	SPRING WASHER M10 (3.000 per pack)	1
12	HEX. SCREW M10 X 30 (10.000 per pack)	1
13	SEAL	1
14	Ball Bearing	1
15	CIRCLIP	1
16	SPROCKET 49 TEETH Package SP 146 154 800ETEC	1
16	SPROCKET 51 TEETH UJGA UJGB UJGC UJGD UXGC UXGD UXGG UXGH UXGJ	1
17	CIRCLIP	1
18	O-RING	1
19	MAGNETIC CAP	1
23	DRIVE CHAIN 106 LINKS	1
23	DRIVE CHAIN 104 LINKS Package Sport	1
24	Hex. Nut M10	1
25	ADJUSTMENT SCREW	1
26	MAGNETIC PLUG Package Sport	1
27	BONDED WASHER 3/8 X 7/8 (5.000 per pack)	1
29	CHAIN TENSIONER	1
30	SLIDER CHAIN	1
31	TENSIONNER AXLE	1
32	Circlip	1
33	CHAINCASE COVER ASS Y Includes 52 to 53	1
33a	CHAINCASE COVER	1
33b	CAPTEUR *SENSOR	1
34	O-RING	1
35	FLANGED HEX. SCREW M6 X 30 Package Sport (10.000 per pack)	7
37	CAP	1
37a	MALE CONNECTOR (5.000 per pack)	1
37b	Hose, Polyurethane	1
40	HOUSING BEARING	1
46	BEARING HOUSING	1
47	Hex. Flanged Elastic Nut M8	1
51	DRIVE AXLE ASS Y	1
52	TRACK ASS Y 16" X 146" X 2.50" TR16X146X2.5PII	1
52	TRACK ASS Y 16" X 154" X 2.50" TR16X154X2.5PII	1
52	TRACK ASS Y 16" X 163" X 2.50" Includes 52 to 52b 2.5PII	1
52	TARCK ASS Y 16" X 146" X 2.31"	1
52	TRACK ASS Y 16" X 163" X 2.31" Includes 52 to 52b 2.2P	1
52	TRACK ASS Y 16" X 137" X 2.25"	1
52	TRACK ASS Y 16" X 154" X 2.2"P	1
52a	GUIDE *CLIP Model-Europe	26
52b	AGRAFE DE GUIDE*CLEAT-GUIDE	26
