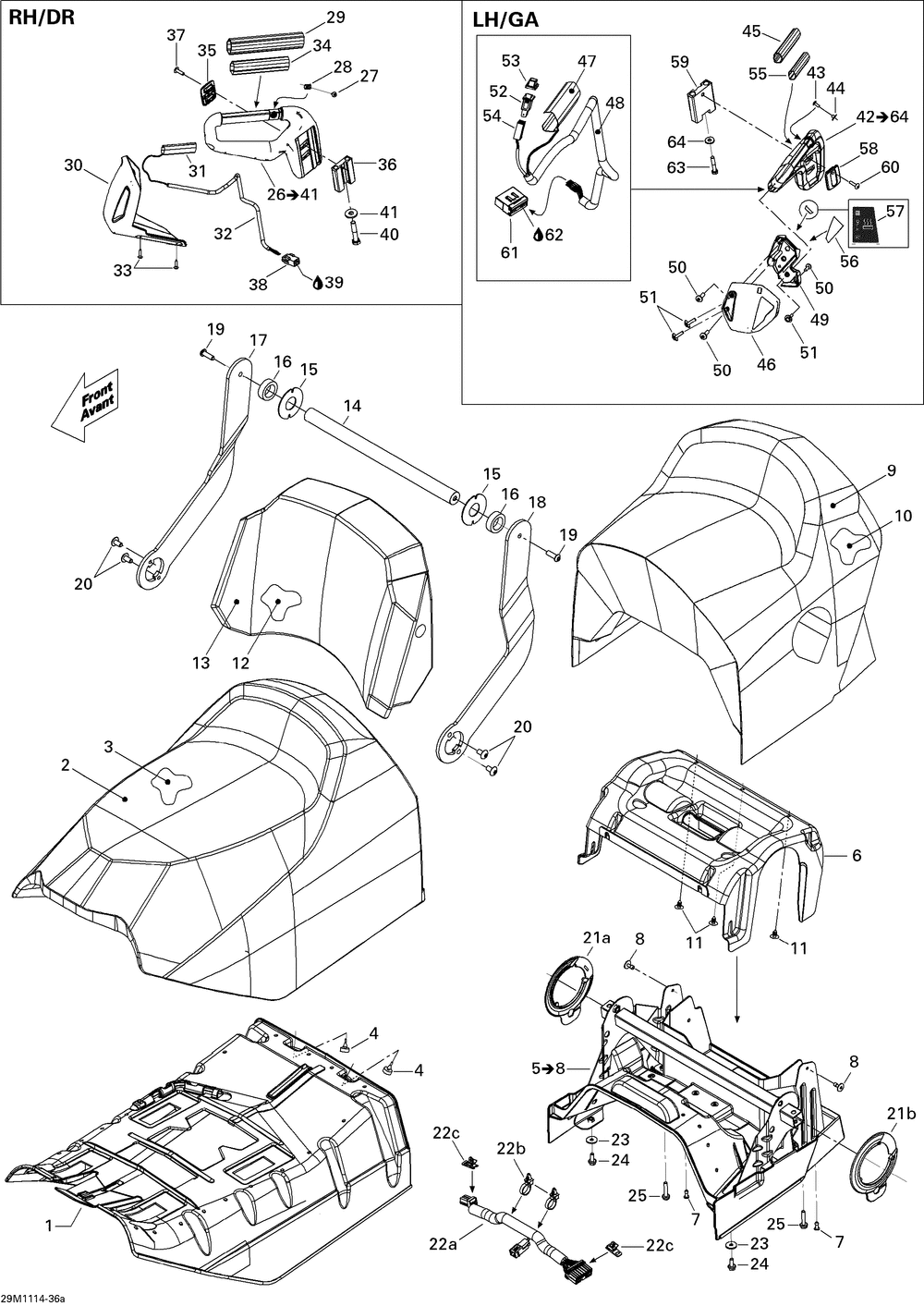

09- Seat North America

№	Наименование	Кол-во
1	FRONT SEAT BASE	1
2	SEAT COVER	1
3	FRONT SEAT FOAM	1
4	Rubber Stopper	2
5	SEAT BASE ASS Y Includes 5 to 8	1
6	FOAM SUPPORT	1
7	POP RIVET 3/16tahos_ (25.000 per pack)	2
8	POP RIVET 3/16" (50.000 per pack)	2
9	SEAT COVER	1
10	REAR SEAT FOAM	1
11	DART GS Black A19N Model (10.000 per pack)	3
12	BACKREST FOAM	1
13	BACKREST COVER	1
14	UPPER BACKREST AXLE	1
15	RONDELLE *WASHER	2
16	RUBBER SHIM	2
17	RH ARM BLACK	1
18	LH ARM BLACK	1
19	TORX SCREW M8 X 25 SCOTCH GRIP (4.000 per pack)	2
20	TORX TRUSS SCREW M8 X 16 (5.000 per pack)	4
21a	SPACER RH	1
21b	SPACER LH	1
22a	SEAT HARNESS	1
22b	Tie Rap	2
22c	Housing Support	2
23	FLAT WASHER (10.000 per pack)	2
24	HEX. SCREW M6 X 16 SCOTCH GRIP (25.000 per pack)	2
25	Hex. Flanged Screw M6 X 30, Scotch Grip	2
26	RH HANDLE ASS Y Includes 26 to 41	1
27	TORX SCREW M6 X 16 (12.000 per pack)	1
28	NUT M6 (6.000 per pack)	1
29	GAINE POIGNEE *GRIP-HANDLE	1
30	RH AIR DEFLECTOR	1
31	HEATED ELEMENT	1
32	GAINE EXP.TRES.*TUBING-EXP.BRAIDED (2.000 per pack)	0
33	SCREW PLASTITE TYPE K-40 M4 X 16 (2.000 per pack)	2
34	HANDLE REINFORCEMENT	1
35	MOULDING	1
36	HANDLE LINK	1
37	TORX TRUSS SCREW M8 X 30 (6.000 per pack)	1
38	MALE HOUSING 3 CIRCUITS (5.000 per pack)	1
39	DIELECTRIC GREASE 150 G	0
40	HEX. SCREW M8 X 45 (10.000 per pack)	1
41	Washer Yellow	1
42	LH HANDLE ASS Y Includes 42 to 64	1
46	LH AIR DEFLECTOR	1
49	HOUSING SWITCH	1
50	TRUSS HEAD TORX SCREW K50 X 16 (5.000 per pack)	3
52	ROCKER SWITCH	1
53	SWITCH PROTECTOR	1
54	HANDLE HARNESS	1
56	CONNECTOR DECAL	1
57	HEATED HANDLE DECAL	1
61	MALE CONNECTOR	1
