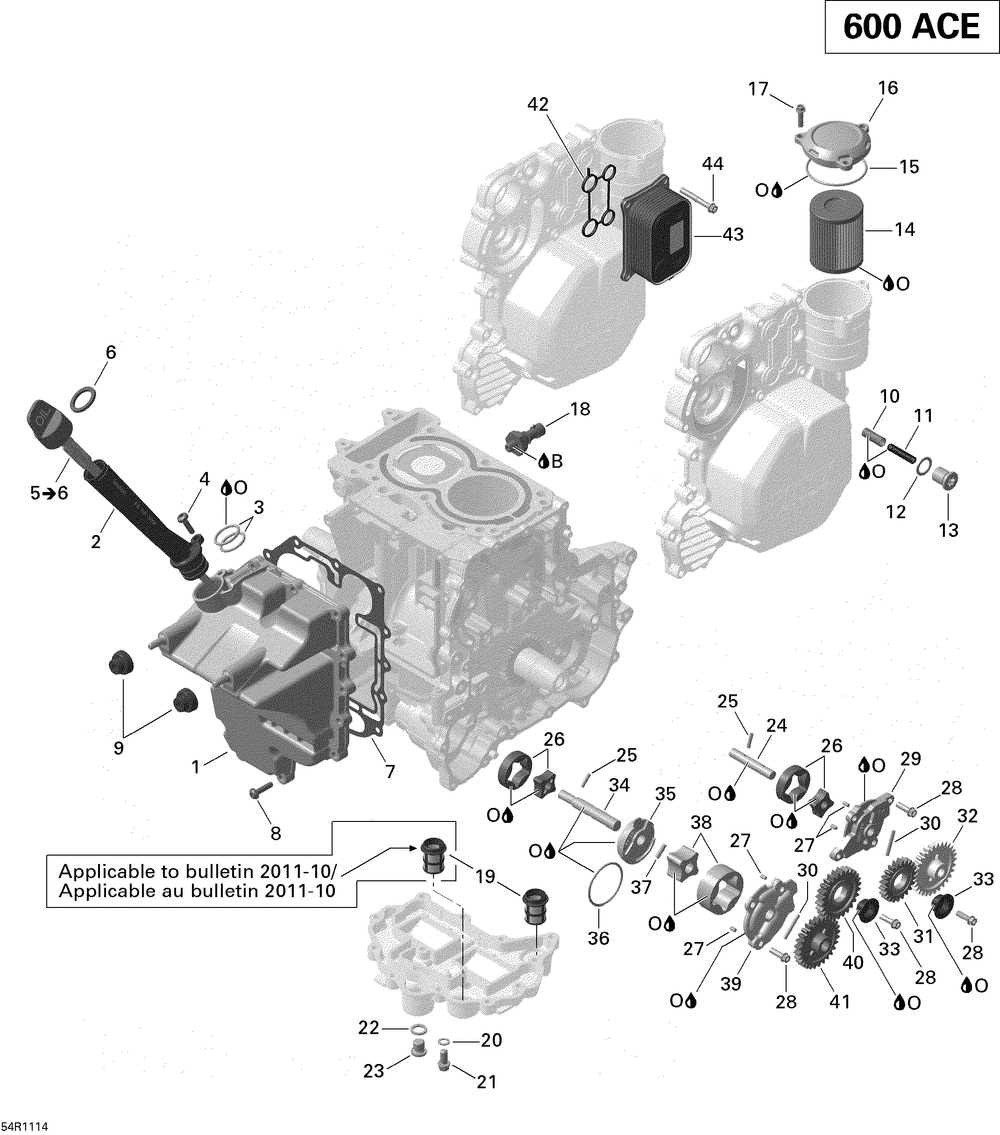

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| B | LOCTITE 243 10 ML | 0 | |
| 1 | Oil Pump Cover | 1 | |
| 2 | OIL FILLER TUBE | 1 | |
| 3 | O-Ring | 2 | |
| 4 | FLANGED TORX SCREW M6 X 20 | 1 | |
| 5 | OIL LEVER TUBE Includes 5 To 6 | 1 | |
| 6 | Gasket Ring | 1 | |
| 7 | Gasket | 1 | |
| 8 | FLANGED TORX SCREW M6 X 25 Tightening Torque 9 Nm +/- 12% | 14 | |
| 9 | Rubber Grommet | 2 | |
| 10 | PRESSION REGULATING PISTON | 1 | |
| 11 | Spring | 1 | |
| 12 | O-Ring | 1 | |
| 13 | PLUG SCREW Tightening Torque 17 Nm +/- 12% | 1 | |
| 14 | Oil Filter | 1 | |
| 15 | O-Ring | 1 | |
| 16 | OIL FILTER COVER | 1 | |
| 17 | Flanged Torx Screw M6 X 20 | 3 | |
| 18 | OIL PRESSURE SWITCH | 1 | |
| 19 | Oil Sieve | 1 | |
| 20 | Sealing Ring | 1 | |
| 21 | Flanged Torx Screw M8 X 16 | 1 | |
| 22 | Copper Washer | 1 | |
| 23 | PLUG SCREW M12 X 1.5 Tightening Torque 15 Nm +/- 12% | 1 | |
| 24 | Oil Pump Shaft | 1 | |
| 25 | NEEDLE PIN | 2 | |
| 26 | OIL PUMP ROTOR | 2 | |
| 27 | Needle Pin | 4 | |
| 29 | Oil Pump Cover | 1 | |
| 30 | NEEDLE PIN | 2 | |
| 31 | IDLE GEAR 22 TEETH | 1 | |
| 32 | Oil Pump Gear 29 Teeth | 1 | |
| 33 | GRADUATED SPACER | 2 | |
| 34 | Oil Pump Shaft | 1 | |
| 35 | Oil Pump Cover | 1 | |
| 36 | O-Ring | 1 | |
| 37 | NEEDLE PIN | 1 | |
| 38 | OIL PUMP ROTOR | 1 | |
| 39 | OIL PUMP COVER | 1 | |
| 40 | IDLE GEAR 26 TEETH | 1 | |
| 41 | OIL PUMP GEAR 28 TEETH | 1 |
