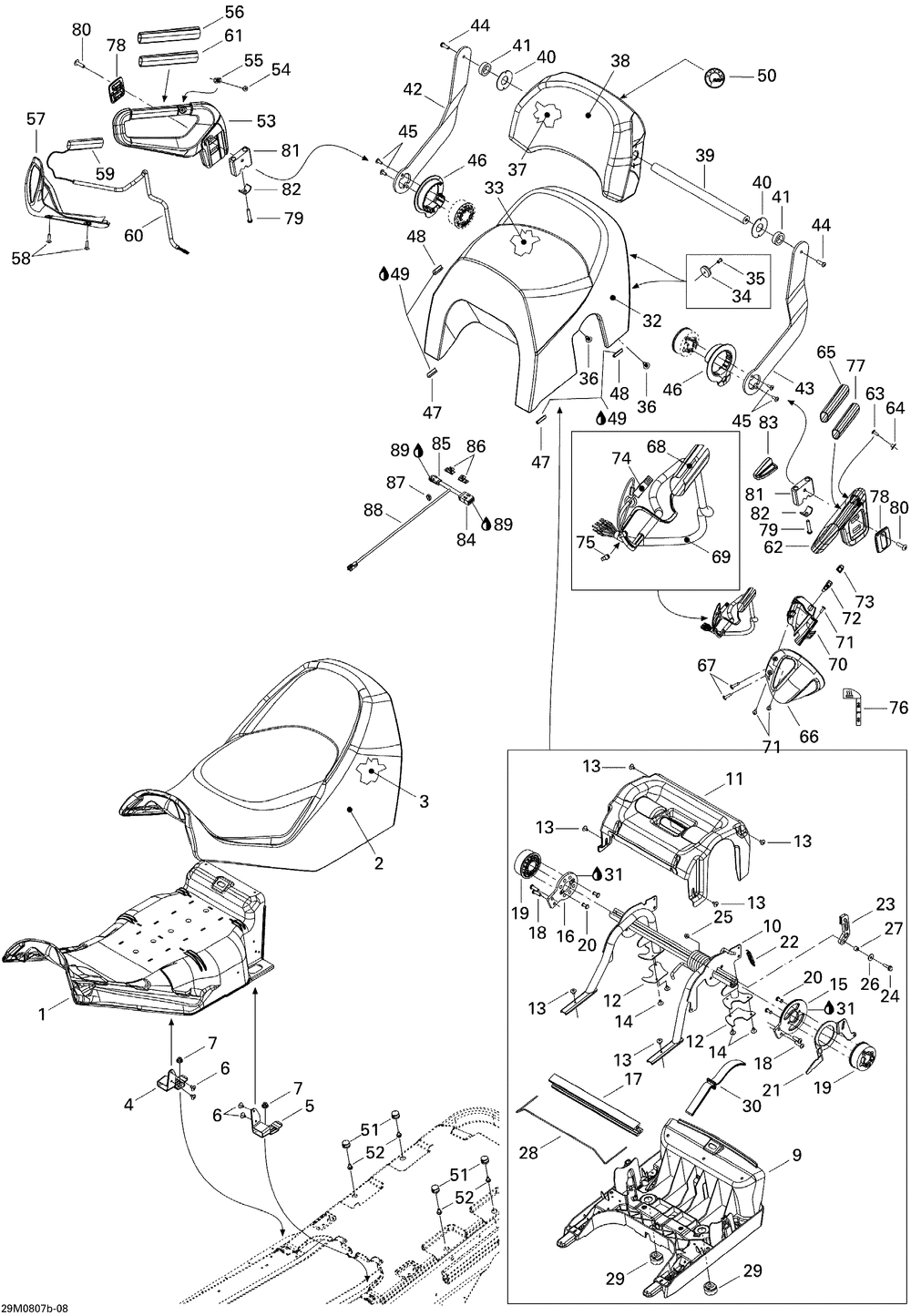

SKI-DOO GTX Sport 500SS GTX SPORT 500SS 09- Seat
09- Seat
№ Наименование Примечание Кол-во
1 FRONT SEAT BASE FAN 1
2 SEAT COVER BLACK 1
3 FRONT SEAT FOAM FAN 1
4 RH FIXATION PLATE BLACK FAN 1
5 LH FIXATION PLATE BLACK FAN 1
6 Pop Rivet 3/16" 4
7 Hex. Flanged Elastic Nut M8 2
9 SEAT BASE FAN 1
10 SUPPORT 1
11 FOAM SUPPORT 1
12 WEAR PLATE FAN 2
14 POP RIVET 3/16tahos_ (25.000 per pack) 4
15 SPROCKET 1
16 LINK PLATE 1
17 LINK TUBE 1
18 SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP 4
19 SPACER 2
20 STEEL RIVET (4.000 per pack) 4
21 MANETTE NOIRE *HANDLE BLACK 1
22 HANDLE SPRING 1
23 ADJUSTMENT PIVOT 1
24 Hex. Flanged Screw M6 X 25 1
25 Hex. Flanged Elastic Nut M6 1
26 FLAT WASHER (10.000 per pack) 1
27 BUSHING 1
28 ANCHOR SPRING FAN 1
30 COURROIE *BELT FAN 1
31 LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ 0
32 REAR SEAT COVER BLACK B-160 1
33 REAR SEAT FOAM FAN 1
34 RUBBER STOPPER (5.000 per pack) 2
35 POP RIVET 1/8" BLACK FAN (50.000 per pack) 2
36 BLACK DART FAN (10.000 per pack) 2
37 BACKREST FOAM 1
38 BACKREST COVER BLACK 1
39 UPPER BACKREST AXLE 1
40 RONDELLE *WASHER 2
41 RUBBER SHIM 2
42 RH ARM BLACK 1
43 LH ARM BLACK 1
45 TORX TRUSS SCREW M8 X 16 (5.000 per pack) 4
46 SPACER FAN 2
47 FRONT SEAT CORNER FAN 2
48 REAR SEAT CORNER FAN 2
49 LOCTITE 414 29.5 CC 0
50 BRP LOGO VINYL 1
51 SEAT STUD 2
52 FLANGED SCREW M6 X 10 SCOTCH GRIP (5.000 per pack) 2
53 RH HANDLE 1
54 TORX SCREW M6 X 16 (12.000 per pack) 1
55 NUT M6 (6.000 per pack) 1
56 GAINE POIGNEE *GRIP-HANDLE 1
57 RH DEFLECTOR 1
58 SCREW 25MM 2
59 ELEMENT CHAUFF.*HEATED FILM 1
60 GAINE EXP.TRES.*TUBING-EXP.BRAIDED (2.000 per pack) 0
61 HANDLE REINFORFORCEMENT 1
62 LH HANDLE 1
66 LH DEFLECTOR 1
70 SWITCH HOUSING 1
71 TRUSS HEAD TORX SCREW K50 X 16 (5.000 per pack) 3
72 ROCKER SWITCH 1
73 SWITCH PROTECTOR 1
74 LH HANDLE HARNESS 1
75 Tie-Rap 180 mm 1
76 HANDLE HEATER DECAL 1
78 MOULDING 2
79 SOCKET HEAD SCREW M8 X 45 (5.000 per pack) 2
80 TORX TRUSS SCREW M8 X 30 (6.000 per pack) 2
81 HANDLE LINK 2
82 HANDLE CLAMP (2.000 per pack) 2
83 GRIP 1
84 MALE TERMINAL HOUSING 8 CIRCUITS 1
85 MALE HOUSING 3 CIRCUITS (5.000 per pack) 1
86 Housing Support 2
88 SEAT HARNESS 1
89 DIELECTRIC GREASE 150 G 0
