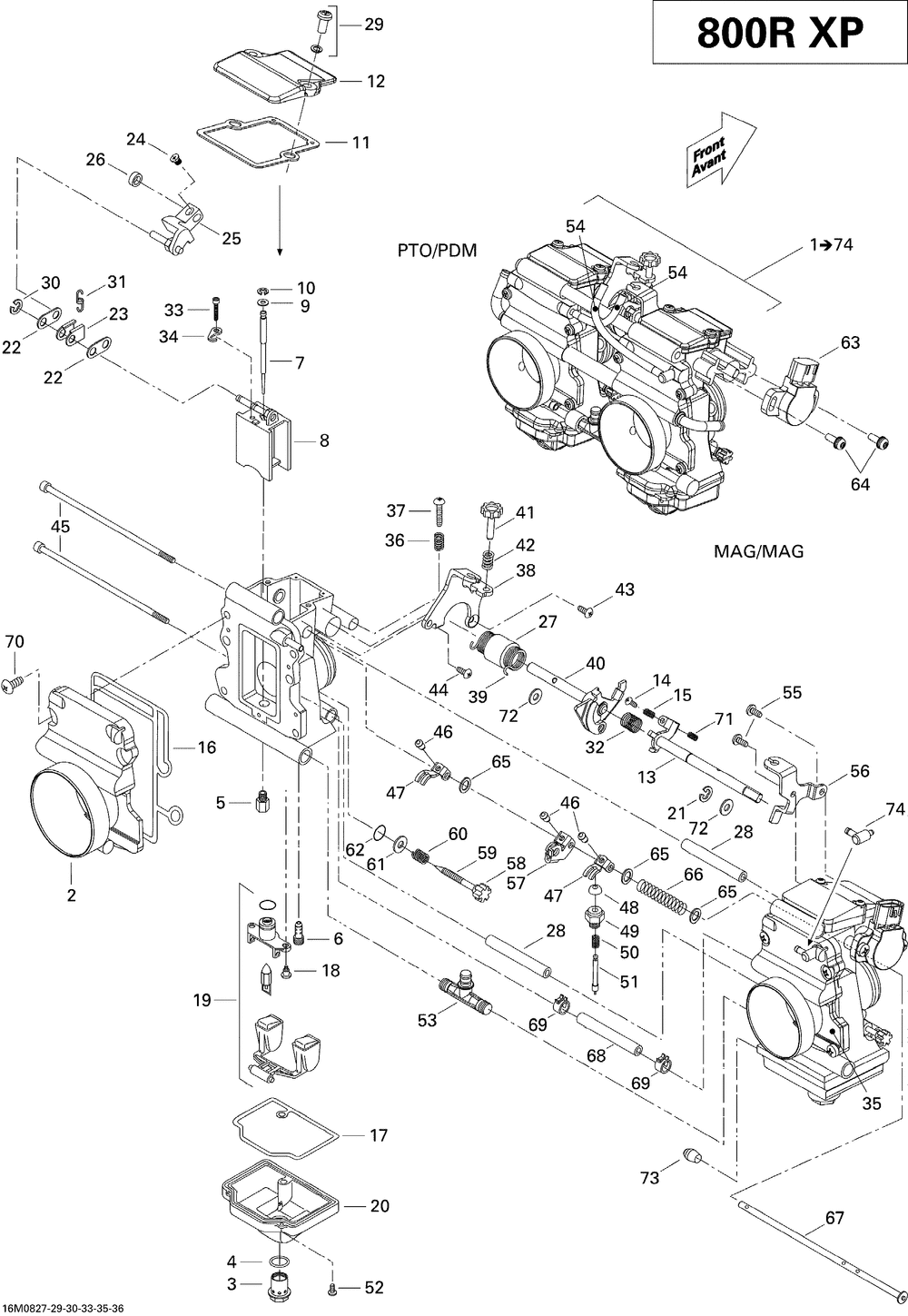

02- Carburetor 800R

№	Наименование	Кол-во
1	CARBURATOR KIT TM40-B397 Includes 1 to 74	1
2	FUNNEL PTO	1
3	DRAIN SCREW	2
4	O-RING	2
5	MAIN JET MJ 480	2
6	PILOT JET 17.5 (10.000 per pack)	2
7	NEEDLE J8-9EGI04-58	2
8	VALVE PISTON 2.0	2
9	JOINT TAMPON *PACKING (10.000 per pack)	2
10	E-RING (5.000 per pack)	2
11	JOINT *GASKET	2
12	COVER	2
13	THROTTLE SHAFT	1
14	VIS *SCREW	1
15	ADJUSTMENT SPRING	1
16	O-RING	2
17	O-RING (2.000 per pack)	2
18	VIS *SCREW	4
19	FLOAT	2
20	BODY FLOAT ASS Y	2
21	E-RING	1
22	PLAQUE *PLATE	4
23	HOLDER	2
24	VIS *SCREW	2
25	LEVER	2
26	RING	2
27	RING	1
28	RING	2
29	VIS *SCREW	4
30	E-RING	2
31	SPRING	2
32	SPRING	1
33	VIS *SCREW	2
34	PLAQUE *PLATE	2
35	FUNNEL MAG	1
36	SPRING	1
37	VIS *SCREW	1
39	SPRING	1
40	THROTTLE SHAFT	1
41	ADJUSTMENT SCREW	1
42	SPRING	1
43	VIS *SCREW	1
44	VIS *SCREW	1
45	VIS *SCREW	2
46	VIS *SCREW	3
47	LEVER	1
48	CAP	2
49	GUIDE HOLDER	2
50	SPRING	2
51	PLUNGER ASS Y	2
52	VIS *SCREW (10.000 per pack)	2
53	NIPPLE	1
54	DURITE *HOSE	1
55	VIS *SCREW	2
57	STARTER LEVER	1
58	CAP	2
59	ADJUSTER	2
60	SPRING	2
61	RONDELLE *WASHER	2
62	PACKING	2
63	SENSOR ASS Y	1
64	VIS *SCREW	2
65	PACKING	3
66	SPRING	1
68	DURITE *HOSE	1
69	CLIP	2
70	VIS *SCREW	8
71	SPRING	1
72	JOINT TAMPON *PACKING	2
73	CAPUCHON OBTUR.*CAP-CLOSURE	2
74	ELBOW 90	1
