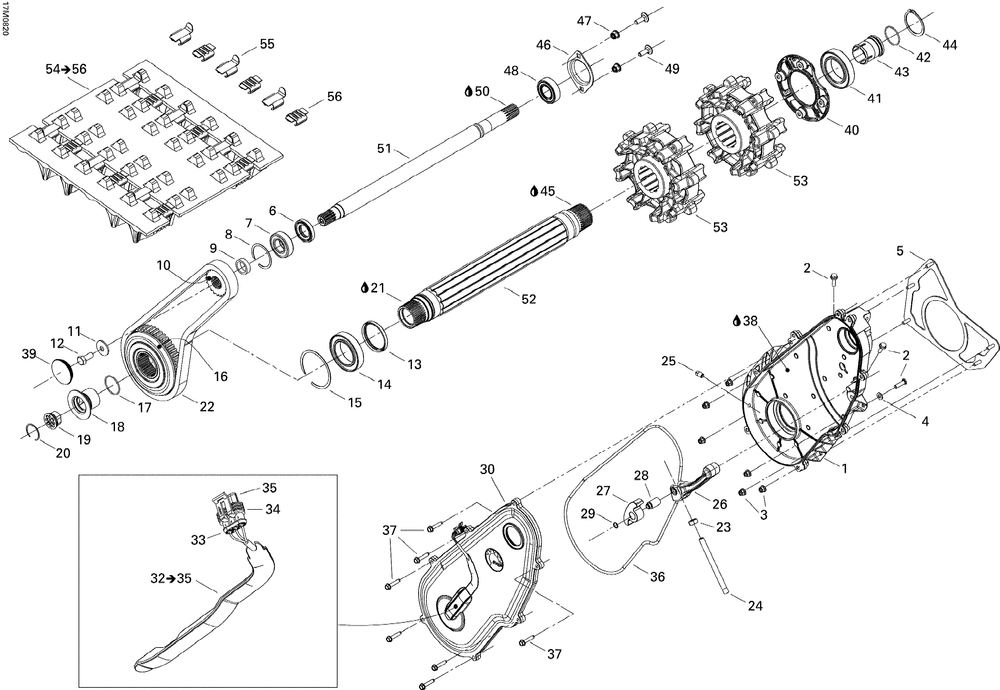

05- Drive System

№	Наименование	Кол-во
1	CHAINCASE COVER ASS Y	1
2	Hex. Flanged Screw M6 X 20	3
3	FLANGED ELASTIC NUT M6 (8.000 per pack)	6
4	FLAT WASHER 6 MM (10.000 per pack)	1
5	PLATE ASSY	1
6	OIL SEAL	1
7	Ball Bearing	1
8	CIRCLIP	1
9	SHIM	1
10	SPROCKET 23 TEETH (LARGE) Grand Touring 600. Grand Touring 700.	1
11	SPRING WASHER M10 (3.000 per pack)	1
12	HEX. SCREW M10 X 25 (10.000 per pack)	1
13	SEAL	1
14	Ball Bearing	1
15	CIRCLIP	1
16	SPROCKET 49 TEETH	1
17	O-RING	1
18	THREADED CAP	1
19	MAGNETIC ADAPTOR	1
20	CIRCLIP (2.000 per pack)	1
21	SUSPENSION GREASE 10 X 400 G	0
22	DRIVE CHAIN 106 LINKS	1
23	Hex. Nut M10	1
24	ADJUSTMENT SCREW	1
25	MAGNETIC PLUG Package Sport	1
26	CHAIN TENSIONER	1
27	SLIDER CHAIN	1
28	TENSIONER AXLE	1
29	Circlip	1
30	CHAINCASE COVER ASS Y	1
32	CAPTEUR *SENSOR	1
33	Wire Seal	3
34	Female Housing, 3 Circuits	1
35	Female Terminal	3
36	O-RING	1
37	SCREW-FORMING HEX.HD.FL.DIN.7500D (10.000 per pack)	7
38	HUILE *XPS SYNTH OIL CHAINCASE OIL (16.000 per pack)	0
39	MALE CONNECTOR (5.000 per pack)	1
40	BEARING HOUSING	1
43	MAGNETIC CAP	1
44	CIRCLIP	1
46	FLANGE	1
47	Hex. Flanged Elastic Nut M8	2
48	ENS ROULEMENT BILLE*BALL BEARING KIT	1
49	CARRIAGE BOLT M8 X 30 (10.000 per pack)	2
50	LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ	0
51	COUNTER SHAFT	1
52	DRIVE AXLE ASS Y	1
53	SPROCKET 8 TEETH	2
54	TRACK ASS Y 15" X 120" X 1.75" Includes 9 to 11	1
55	GUIDE *CLIP	28
56	CLEAT Model-Europe (50.000 per pack)	56
