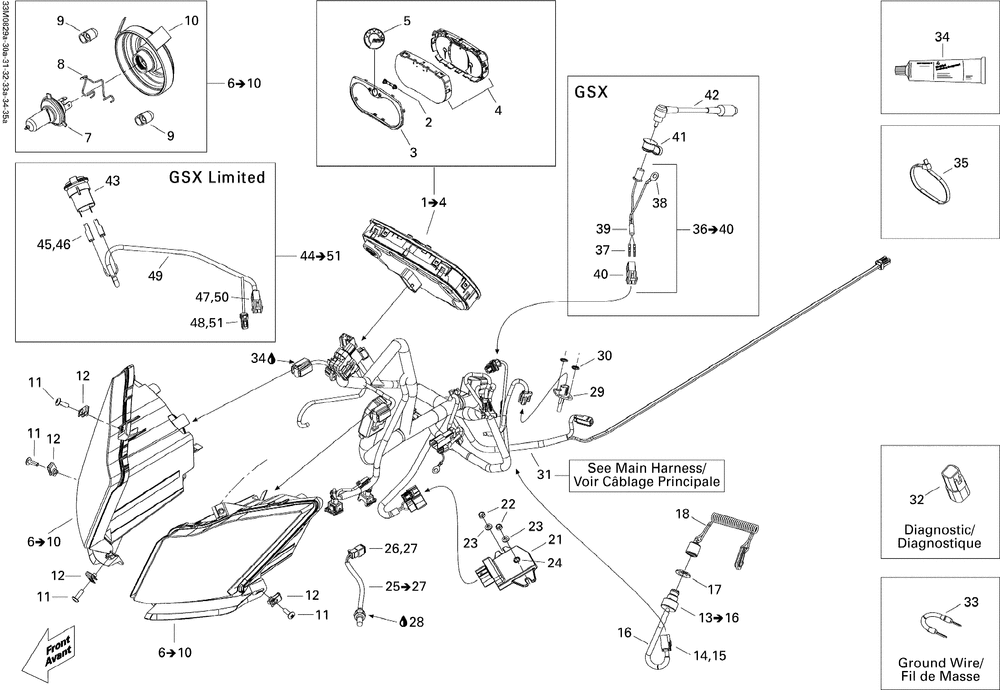

10- Electrical System 800R REN

№	Наименование	Кол-во
1	SPEEDOMETER Includes 1 to 4	1
2	SPEEDOMETER BUTTON	1
3	GAUGE RING	1
4	Lens	1
5	BRP LOGO 20MM	1
6	RH HEADLAMP ASS Y Includes 6 to 10	1
6	LH HEADLAMP ASS Y Includes 6 to 10	1
7	Halogen Bulb, 60/55 W, 12 V ( H4 )	1
9	CAP	2
10	COVER	1
11	TORX SCREW M6 X 20 Model-RT STD	5
12	Panel Nut M6 X 1.0	5
13	DESS SWITCH Includes 25 to 27	1
14	MALE TERMINAL (10.000 per pack)	3
15	MALE HOUSING 3 CIRCUITS (5.000 per pack)	1
16	TUBING 12 MM	0
17	SAFETY NUT	1
18	DESS CAP	1
21	VOLTAGE REGULATOR	1
22	Elastic Stop Nut M6	2
23	FLAT WASHER 6 MM (10.000 per pack)	2
24	EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack)	1
25	TEMPERATURE SENSOR Includes 21 to 23	1
26	Female Terminal Housing, 2 Circuits	1
27	Female Terminal	2
28	LOCTITE 592 PIPE SEALANT 50 ML Package T	0
29	AIR TEMPERATURE SENSOR	1
30	PUSH NUT (10.000 per pack)	2
31	MAIN HARNESS ASS Y Includes 1 to 954	1
32	DIAGNOSTIC CONNECTOR	1
33	GROUND WIRE	1
34	DIELECTRIC GREASE 150 G	0
35	Tie-Rap 94 mm	1
35	Tie-Rap 142 mm	1
35	Tie-Rap 350 mm	1
35	Tie-Rap 180 mm	1
