SKI-DOO Expedition V-1300 Expedition V-1300 07- Front Suspension And Ski

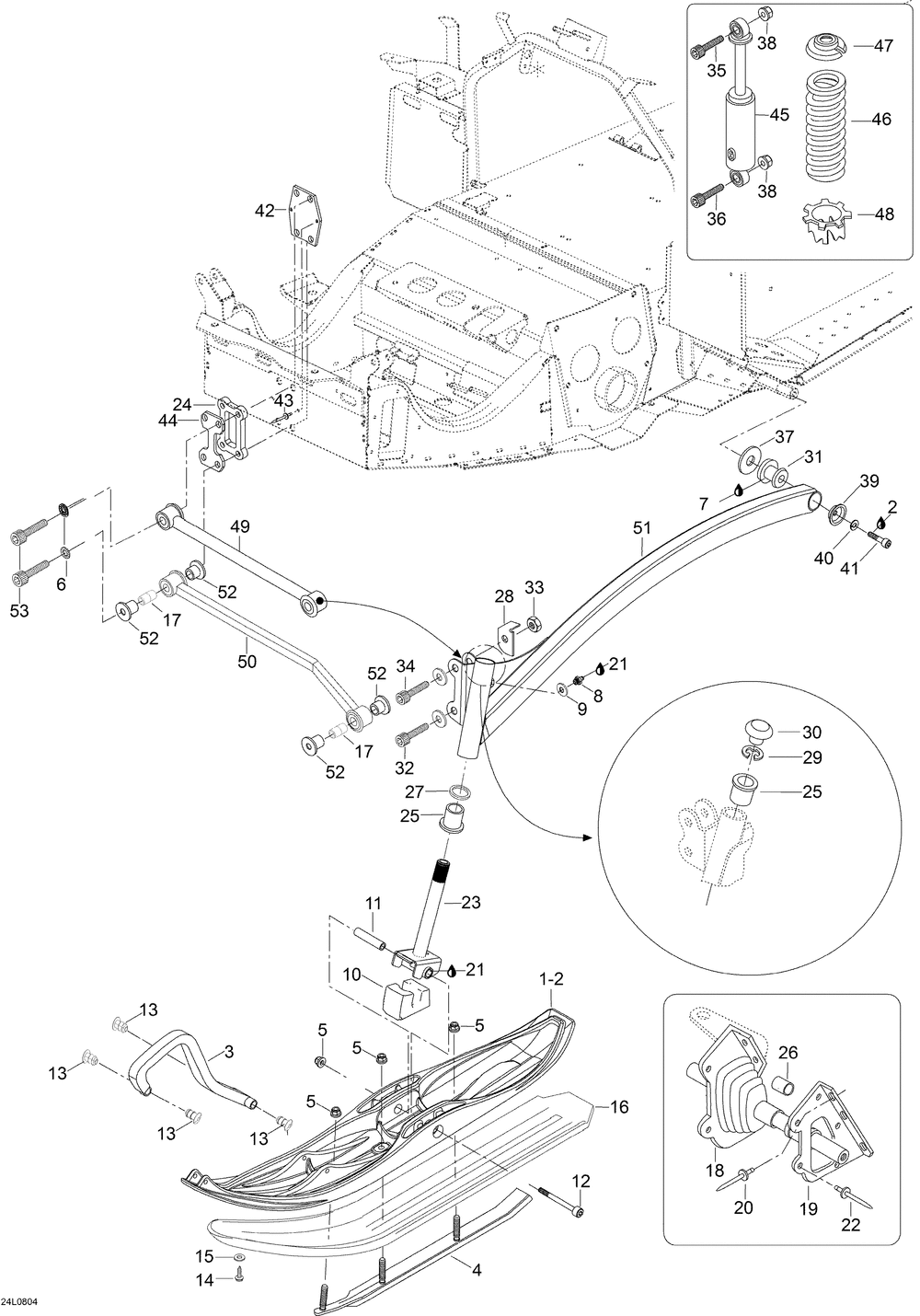

07- Front Suspension And Ski
№ Наименование Примечание Кол-во
1 SKI *ADJ-SKI 2
2 LOCTITE 243 10 ML 0
3 BLACK HANDLE Model N 2
4 CARBIDE SKI RUNNER ASS Y 1
5 NUT-FLANGE ELASTIC M10X1.5 (1=10PCS) (10.000 per pack) 6
6 WASHER-LOCK 4
7 GRAISSE *GREASE 0
8 GREASE FITTING M6 X 100(1=10PCS) (10.000 per pack) 2
9 RONDELLE *WASHER 2
10 SKI STOPPER 2
11 SPACER (2.000 per pack) 2
12 ALLEN SCREW M10X140 8.8ZN(1=10PCS) (10.000 per pack) 2
13 RETAINER (16.000 per pack) 8
14 SCREW-HEX. 4
15 WASHERS A43 DIN9021-ST M ZNE(1=10PCS) (10.000 per pack) 4
16 SKI LINER 2
17 BUSHING 4
18 LH TIE ROD CAP 1
18 RH TIE ROD CAP 1
19 LH COVER PLATE 1
19 RH COVER PLATE 1
20 RIVET BLACK 48X16 AL D14(1=50PCS) (50.000 per pack) 6
21 SUSPENSION GREASE 10 X 400 G 0
22 RIVET BLACK 4.8X16 AL LONG MAND.(1=25PC (25.000 per pack) 10
23 SKI LEG 2
24 SPACER 17.5 1
25 CUSHION 4
26 BUSHING 2
27 RONDELLE *WASHER (10.000 per pack) 2
28 RH LOCKING PLATE 1
28 LH LOCKING PLATE 1
29 CIRCLIP (10.000 per pack) 2
30 CAP 2
31 DAMPER 2
32 SCREW ALLEN M12 X 55 2
33 Elastic Stop Nut M6 4
34 VIS*SCREW M12X60 (10.000 per pack) 2
35 ALLEN SCREW M10X55 DIN 912 (1=10PCS) (10.000 per pack) 2
36 ALLEN SCREW M10 X 50 (1=10PCS) (10.000 per pack) 2
37 RONDELLE *WASHER (10.000 per pack) 2
38 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 7
39 CUP 2
40 WASHER-LOCK DIN.127B (50.000 per pack) 2
41 SCREW -KOLOR M8X20 DIN912 (1=10PCS) (10.000 per pack) 2
42 PLAQUE *PLATE 1
43 RIVET *RIVET (10.000 per pack) 2
44 MIDDLE PLATE 1
45 AMORTISSEUR*SHOCK 2
46 SPRING 2
47 SPRING STOPPER 2
48 CAME *CAM 2
49 UPPER ARM ASSY 2
50 LOWER ARM 2
51 LH SWING ARM 1
51 RH SWING ARM 1
52 CUSHION 8
53 SCREW-SOCKET HD.DIN.912 4
