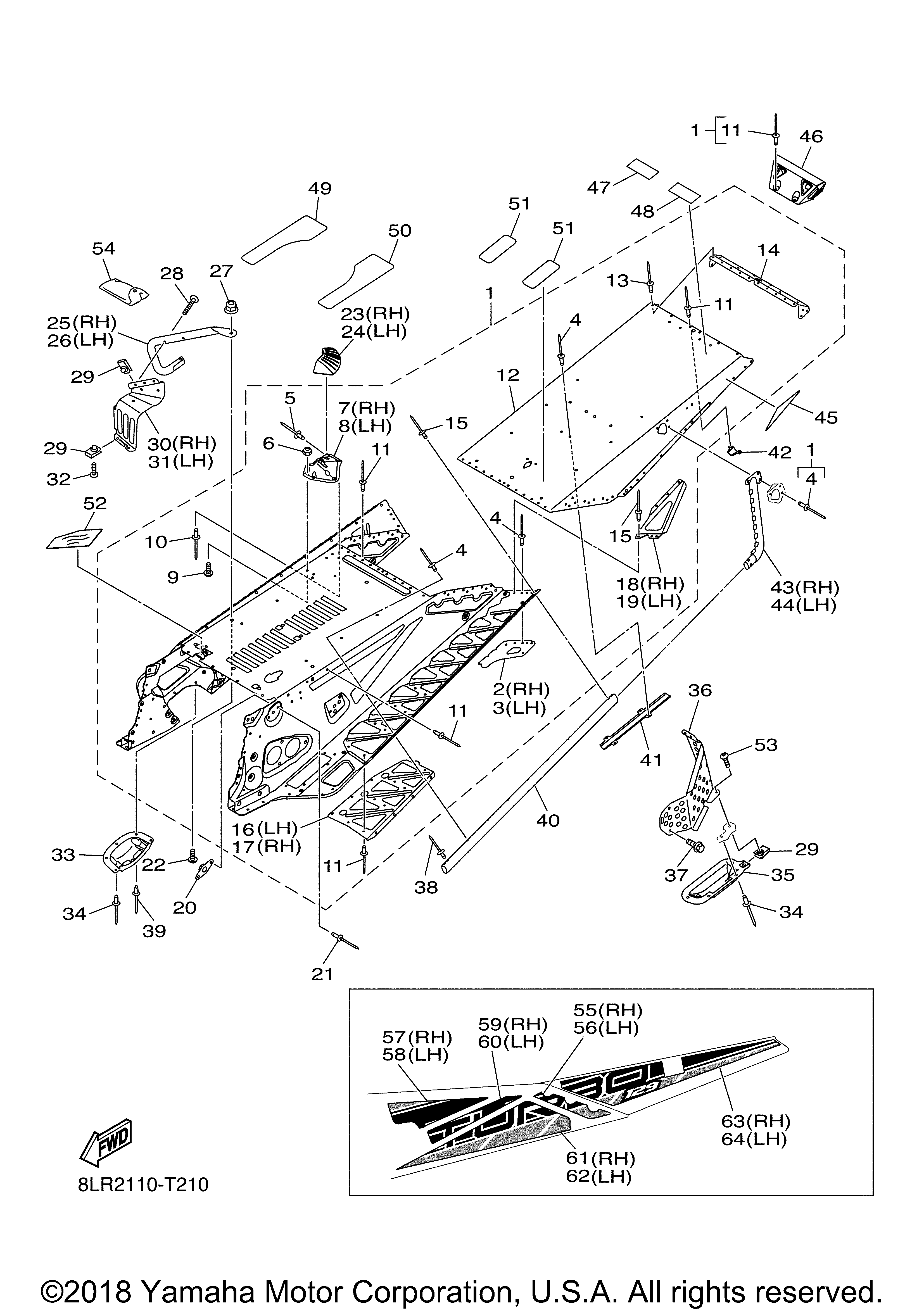

Yamaha SIDEWINDER R TX LE 50TH (SW1NRLJW) SIDEWINDER R TX LE 50TH (SW1NRLJW) FRAME 2
FRAME 2
№ Наименование Примечание Кол-во
1 REAR FRAME COMP. 1
2 . . BRACKET REAR TRACK SUSPENS 1
3 . . BRACKET REAR TRACK SUSPENS 1
4 RIVET 11 UR UN (10 per pack) 1
5 RIVET 20 (5 per pack) 14
6 NUT HEX. LOCKING (8 per pack) 6
7 . . BRACKET MEMBER 2 1
8 . .BRACKET MEMBER 1 1
9 SCREW 5 (6 per pack) 6
10 RIVET 3/16 (10 per pack) 4
11 RIVET 17 UR (25 per pack) 55
12 . .PANEL SUB FRAME 1 1
13 RIVET 5 10
14 . .REINEFORCEMENT FRAME REAR 1 1
15 RIVET 3/16 UN (5 per pack) 1
16 . . REINEFORCEMENT FRAME REAR 1
17 . . REINFORCEMENT FRAME FRONT 1
18 GUSSET 1
19 GUSSET 1
20 BRACKET 1
21 RIVET 10 (10 per pack) 2
22 SCREW M8X1.25X20 2
23 SUPT. FUEL TANK 2 1
24 SUPT. FUEL TANK 1 1
25 REINFORCEMENT FRA 1
26 REINFORCEMENT FRA 1
27 NUTHEX FLG-NYL LOCK 2
28 SCREW M5X0.8X35 (4 per pack) 4
29 NUT CLIP M5 (4 per pack) 9
30 REINFORCEMENT SUB FRAME FR 2 1
31 REINFORCEMENT SUB FRAME FR 1 1
32 SCREW M5X1.0X16 (2 per pack) 4
33 PROTECTOR CHAIN 1
34 RIVET 14 (10 per pack) 8
35 PROTECTOR DISK BR 1
36 PROTECTOR DISC BRAKE 1
37 BOLT FLG. M6X1.0X (2 per pack) 2
38 RIVET 3/16 UN (6 per pack) 2
39 RIVET 15 (10 per pack) 1
40 REINFORCEMENT FOOTREST 1 2
41 PROTECTER WIRE HA 1
42 EXTENSION WIRE HA 1
43 GUSSET 1
44 GUSSET 1
45 LABEL 1 2
46 BRACKET TAILLIGHT 1
47 LABEL WARNING 2 (ENGLISH) 1
48 LABEL WARNING 2 (FRENCH) 1
49 PROTECTOR FRAME 3 1
50 PROTECTOR FRAME 1
51 PROTECTOR FRAME A 2
52 . . ..PROTECTOR 7 1
53 SCREW M5X0.8X20 (4 per pack) 1
54 TOOL KIT 1
55 GRAPHIC 8 1
56 GRAPHIC 7 1
57 GRAPHIC 4 1
58 GRAPHIC 3 1
59 GRAPHIC 6 1
60 GRAPHIC 5 1
61 GRAPHIC 2 1
62 GRAPHIC 1 1
63 DECAL FRAME 16 1
64 DECAL FRAME 15 1
