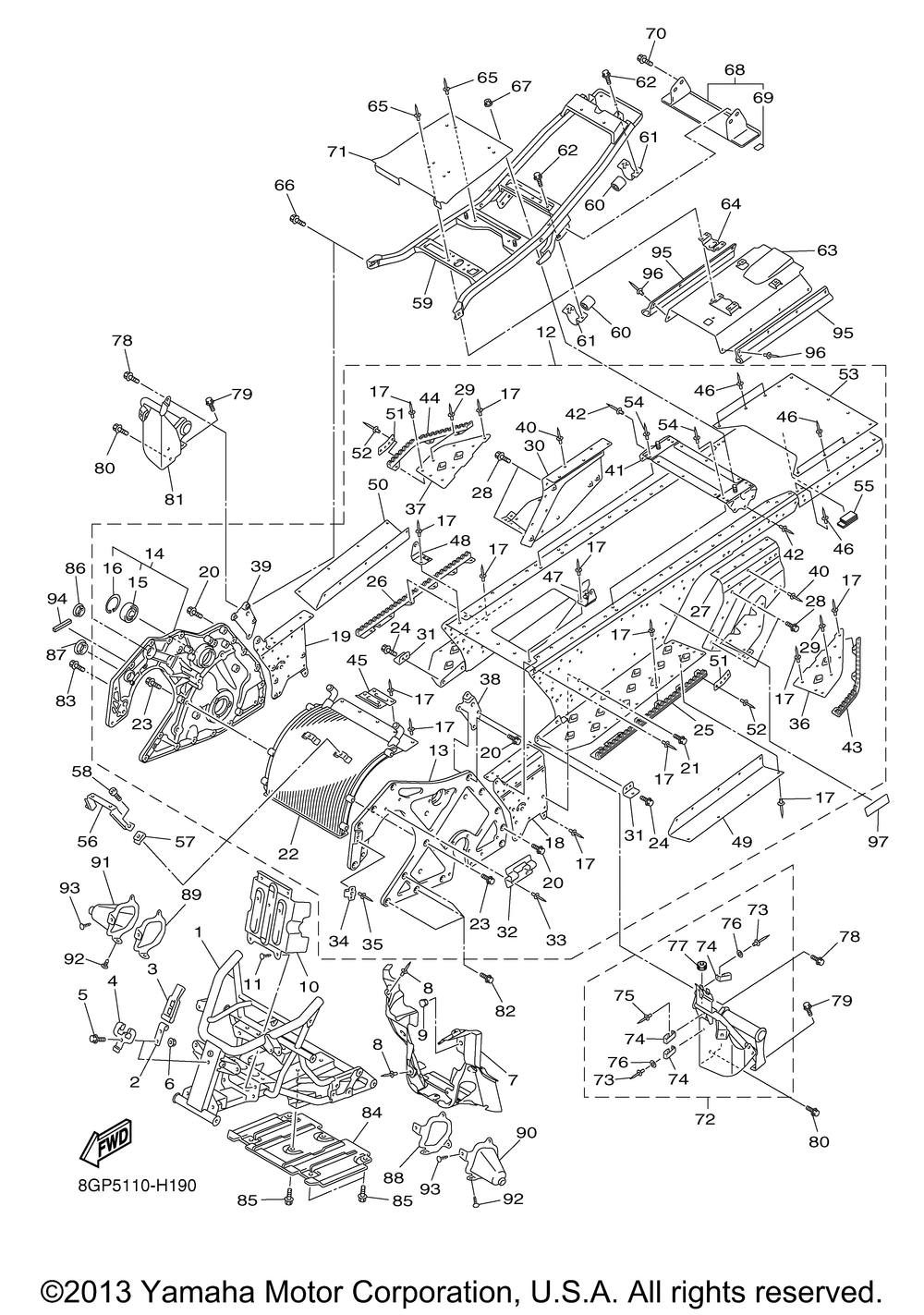

Yamaha PHAZER MTX PZ50MTYO/PZ50MTYW PHAZER MTX PZ50MTYO/PZ50MTYW FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BRACKET 3 1
3 BAND 1
4 BRACKET 4 1
5 BOLT BUTTON HEAD 1
6 NUTFLANGE (SILVER) 1
7 PANEL SUB FRAME 1 1
8 RIVETBLIND (4.8X19 BLACK) (5 per pack) 5
9 PLUGSPEC'L SHAPE 1
10 PROTECTOR FRAME A 1
11 RIVET 4
12 REAR FRAME COMP. 1
13 REINF. PANELL FRAME 1
14 HOUSING REINF SUB-A (R.H) 1
15 BEARING 1
16 CIRCLIP 1
17 RIVET BLIND (4.7X16.4 YELLOW) 1
18 . . ..BRACKET MAIN TRACK 1 1
19 . . ..BRACKET MAIN TRACK 2 1
20 BOLT FLANGE 10
21 BOLT FLANGE 2
22 . .HEAT EXCHANGER ASSY 1
23 BOLTFLANGE(8AB) 6
24 BOLT FLANGE 2
25 . . ..REINFORCEMENT FOOTREST 1 1
26 . . ..REINFORCEMENT FOOTREST 2 1
27 . . BRACKET REAR TRACK SUSPENS 1
28 BOLT FLANGE 4
30 . . BRACKET REAR TRACK SUSPENS 1
31 PATCH 7 2
32 HOOK 1
34 PLATE SPRING 1
35 RIVET BLIND (3.2X13.8) 2
36 . . ..BRACKET FOOTREST 1 1
37 . . ..BRACKET FOOTREST 2 1
38 . .PATCH 3 1
39 . .PATCH 4 1
41 . . ..BRACKET SEAT 1 1
43 . . REINFORCEMENT REAR FOOTRES 1
44 . . REINFORCEMENT REAR FOOTRES 1
45 . .STAY 2 1
47 . . ..BRACKET 1
48 . . ..BRACKET 2 1
49 . . ..PATCH 1 1
50 . . ..PATCH 2 1
51 . . ..PATCH 8 2
52 RIVET BLIND (4.8X12 YELLOW) 8
53 . . ..PANEL SUB-FRAME 7 1
54 RIVET BLIND (5 per pack) 8
55 . . ..TAPE 2 1
56 STAY 1 1
57 NUT SPRING (4ES) 2
58 BOLT (4MY) 2
59 SEAT RAIL COMP 1
60 DAMPER MUFFLER 2
61 BRACKET DAMPER 2
62 BOLTFLANGE 4
63 SHIELD HEAT 1
64 BRACKET SILENCER 1 1
66 BOLTFLANGE (3HP) 2
67 NUT SELF LOCKING 2
68 SEAT BRACKET ASSY 1
69 PAD 1 4
71 PANEL SUB FRAME 6 1
72 FOOTREST COMP. 1 1
74 CLAMP (51Y) 3
75 RIVETBLIND (4.8X15.2 SILVER) 1
76 WASHER PLATE 2
77 GROMMET FOR CALIFORNIA 1
78 BOLTFLANGE 2
79 BOLT FLANGE 4
80 BOLT FLANGE 2
81 FOOTREST COMP. 2 1
83 BOLTFLANGE (JN5) 2
84 PROTECTOR 1
85 BOLT 6
86 GROMMET 1
87 GROMMET 1
88 PLATE STEERING BRACKET 1 1
89 PLATE STEERING BRACKET 2 1
90 COVER 1 1
91 COVER 3 1
93 RIVET 2
94 DAMPER 1 1
95 DAMPER 2
96 RIVET BLIND (5X23.6) 8
97 PLATE EPA OFFROAD 2 1
