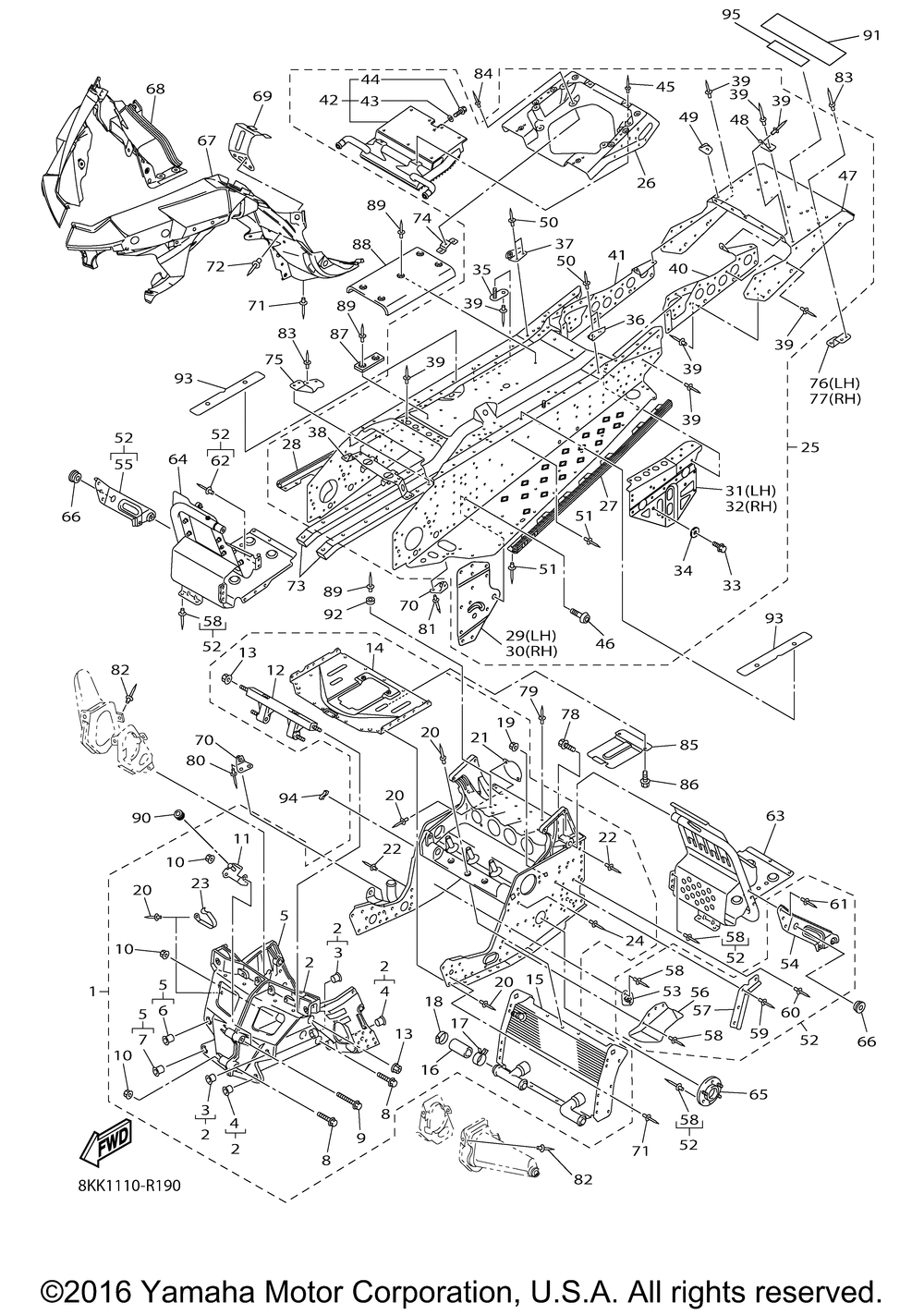

Yamaha RS VECTOR XTX 1.75 RS90XT75HL RS VECTOR XTX 1.75 RS90XT75HL FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 BUSH SOLID 2
4 BUSH SOLID 2
5 BULKHEAD 2 1
8 BOLTFLANGE 3
9 BOLTFLANGE 1
10 NUT SELF LOCKING 4
11 BRACKET 2 1
12 BRACKET STEERING 1 1
13 NUTSELF-LOCKING 4
14 PROTECTOR 1
15 HEAT EXCHANGER ASSY 1
16 HOSE 7 1
17 CLIPSCISSOR 1
18 HOSE CLAMP ASSY 1
20 RIVET BLIND (4.7X16.4 YELLOW) 43
21 PLATE COVER 1
22 RIVET BLIND (4.8X17 YELLOW) 12
23 CLAMP 1
24 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 16
25 REAR FRAME COMP. 1
26 REINEFORCEMENT FRAM 1
27 REINFORCEMENT FOOTR 1
28 REINFORCEMENT FOOTR 1
29 BRACKET MAIN TRACK 1
30 BRACKET MAIN TRACK 1
31 BRACKETRR.TRACK SUS 1
32 BRACKETRR.TRACK SUS 1
33 BOLT FLANGE 4
34 WASHER PLATE 4
35 BRACKET FUEL TANK 2
36 BRACKET 1 1
37 BRACKET 2 1
38 PROTECTOR MUFFLER 1
40 PATCH 3 1
41 PATCH 4 1
42 HEAT EXCHANGER ASSY 1
43 WASHERSEAL 1
44 BOLT FLANGE 1
45 RIVET BLIND (5 per pack) 2
46 BOLT BUTTON HEAD 2
47 PANEL SUB FRAME 5 1
48 PATCH 8 1
49 PATCH 9 1
50 RIVET BLIND (5 per pack) 8
51 RIVET BLIND (4.8X12.1 YELLOW) 30
52 FRAME CONNECTION KIT 1
53 BRACKET CHAIN HOUSI 2
54 BRACKET 5 1
55 BRACKET 6 1
56 COVER 2 1
57 CLAMP WIREHARNESS 1
59 RIVET BLIND (4.8X18.6 BLACK) 4
63 FOOTREST COMP. 1 1
64 FOOTREST COMP. 2 1
65 HOUSING REINF SUB-A (L.H) 1
66 GROMMET 2
67 FRAME UNDER 1 1
68 FRAME UNDER 2 1
69 BRACKET GUARD FITTI 1
70 BRACKET 3 6
72 RIVETBLIND (4.7X16.4 BLACK) 3
73 PROTECTOR FRAME 2
74 BRACKET 7 2
75 BRACKET 7 4
76 BRACKET 3 1
77 BRACKET 4 1
78 BOLTFLANGE(8AB) 2
79 RIVET BLIND 12
80 RIVETBLIND (4.8X15.2 SILVER) 8
85 PROTECTOR FRAME FR 1
86 BOLT BUTTON HEAD 2
87 SPACER 4
88 SHIELD HEAT 1
89 RIVETBLIND (4.8X12.3) 14
90 GROMMET (5 per pack) 1
91 LABEL WARNING 2 1
92 STOPPER 1
93 DAMPER 1 2
94 TAPE 4 1
95 LABEL WARNING 5 1
