SHROUD

Корзина пуста

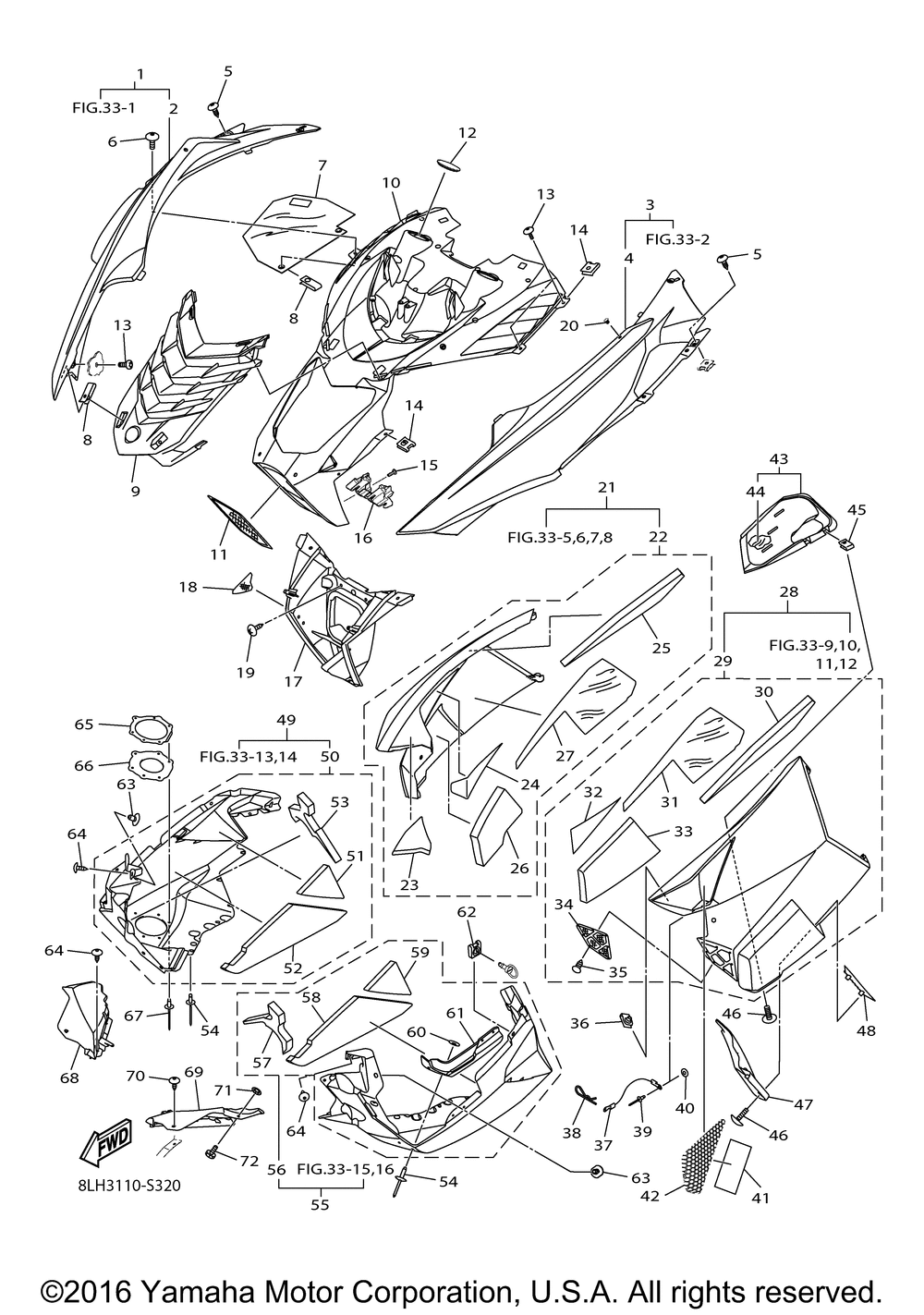

Yamaha SRVIPER B TX LE SR10BLHL SRVIPER B TX LE SR10BLHL SHROUD
SHROUD
№ Наименование Примечание Кол-во
2 HOOD 4 1
4 HOOD 3 1
5 SCREW 10-12X3/4 (5 per pack) 6
6 SCREW 10-12X1.00 (5 per pack) 2
7 SHIELD HEAT 1
8 NUT CLIP 10 (6 per pack) 4
9 PANEL CONSOLE 1 1
10 SHROUD 1
11 GRILL FRONT 1
12 CAP PLUG (2 per pack) 2
13 SCREWSELF TAP-TSTRH (10 per pack) 4
14 NUT CLIP 10 (2 per pack) 4
15 SCREW 13 (6 per pack) 2
16 BRACKET 1 1
17 DUCT INTAKE 1
18 TAPE REFLECTOR 2
19 SCREWSELF TAP-TXSTR (5 per pack) 4
20 RIVET 1 (5 per pack) 2
21 SIDE PANEL COMP.(R (R.H) 1
22 SHELL SIDE PANEL A 1
23 DAMPER NOISE 17 1
24 PROTECTOR 1 1
25 DAMPER NOISE 19 1
26 DAMPER NOISE 18 1
27 PROTECTOR 2 1
28 SIDE PANEL COMP.(L (L.H) 1
29 SHELL SIDE PANEL A 1
30 DAMPER NOISE 13 1
31 DAMPER NOISE 14 1
32 DAMPER NOISE 15 1
33 DAMPER NOISE 16 1
34 SCREEN 1
35 RIVET 1 (5 per pack) 8
36 NUT CLIP M5 (4 per pack) 1
37 WIRE 2
38 CLIP 5 (5 per pack) 2
39 RIVET 6 (20 per pack) 2
40 WASHER 8X0.375X0. (20 per pack) 2
41 TAPEALUM FOIL - 6" UN 1
42 TAPE5 1
43 DUCT 1
44 PROTECTOR 3 1
47 DEFLECTOR 1 1
48 DEFLECTOR 2 1
49 HOOD 2 1
50 HOOD 4 1
51 PROTECTOR 4 1
52 PROTECTOR 5 1
53 PROTECTOR 6 1
54 RIVET 14 (10 per pack) 21
55 HOOD 1 1
56 HOOD 3 1
57 PROTECTOR 1 1
58 PROTECTOR 2 1
59 PROTECTOR 3 1
60 WASHERFLAT .194X.50 (4 per pack) 3
61 REINFORCEMENT 1 1
62 NUT CLIP 1/4 2
63 RIVET 4 (2 per pack) 2
65 PLATE 1 1
66 SEAL EXT. 1 1
68 PATCH 2 1
69 PATCH 1 1
71 NUT 3/16 (4 per pack) 1
72 SCREW THUMB M5X0.8X (4 per pack) 1
