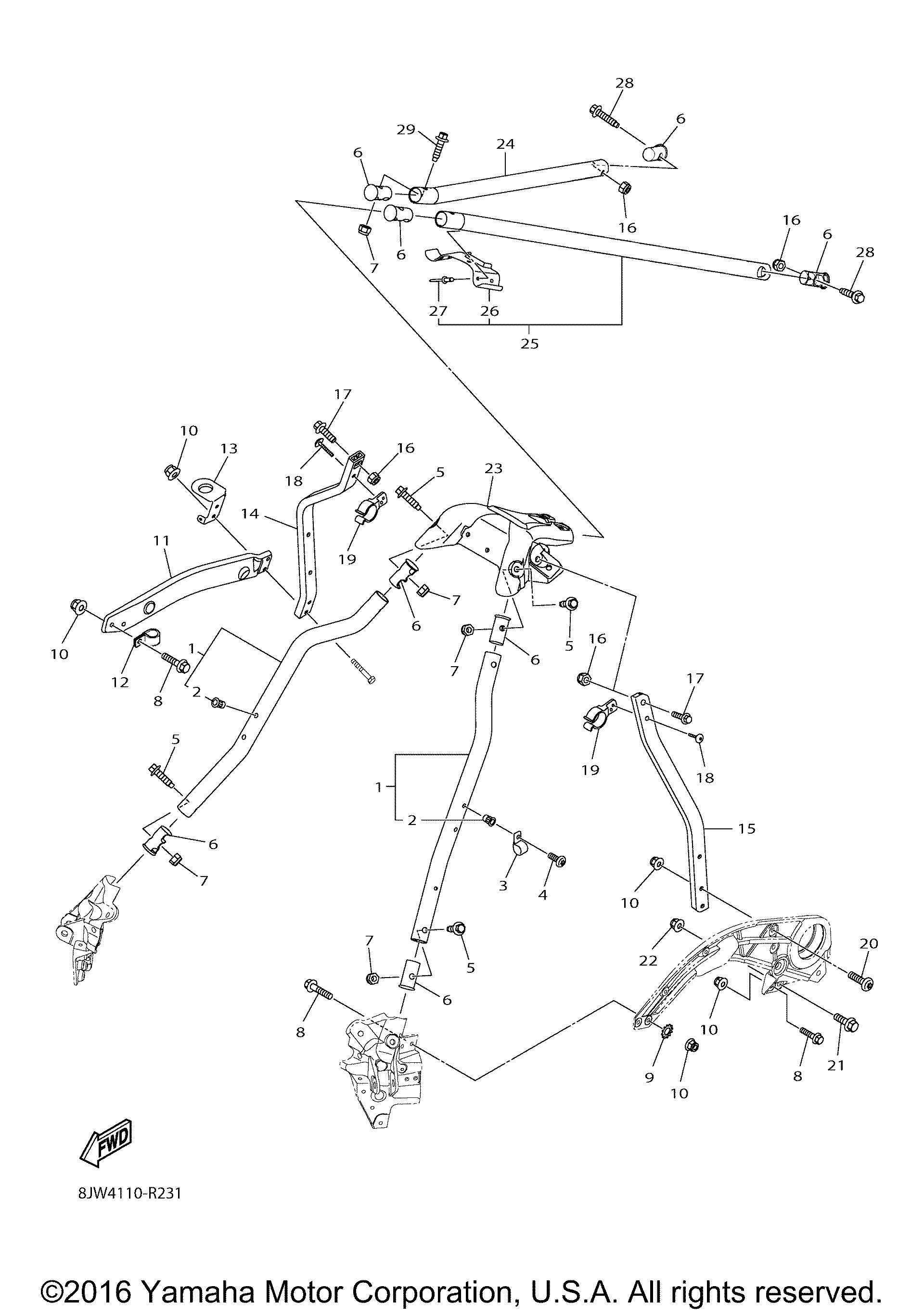

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PIPE CROSS 6 | 2 | |
| 2 | NUT HEXAGON M8 (2 per pack) | 4 | |
| 3 | CLAMP 5 | 1 | |
| 4 | SCREW M5X1.0X16 (2 per pack) | 1 | |
| 5 | SCREW 8 (4 per pack) | 4 | |
| 6 | CAP MAIN PIPE | 8 | |
| 7 | NUT HEX. LOCKING | 6 | |
| 8 | BOLT FLG. M6X1.0X | 5 | |
| 9 | WASHERLOCK-1/4 EXT (5 per pack) | 1 | |
| 10 | NUTFLG. M6-1.0 (5 per pack) | 9 | |
| 11 | GUSSET | 1 | |
| 12 | CLAMP 3 | 1 | |
| 13 | BRACKET 5 | 1 | |
| 14 | MEMBER SIDE 1 | 1 | |
| 15 | MEMBER SIDE 2 | 1 | |
| 16 | NUT HEX. LOCKING | 4 | |
| 17 | BOLT FLG. M8X1.25 (4 per pack) | 2 | |
| 18 | SCREW 10-12X1.00 (5 per pack) | 2 | |
| 19 | CLIP (2 per pack) | 2 | |
| 20 | SCREW M6X1.0X30 (4 per pack) | 2 | |
| 21 | SCREWCAP-HFH M8X1.2 | 2 | |
| 22 | NUTHEX FLG-NYL LOCK | 1 | |
| 23 | GATE STEERING | 1 | |
| 24 | PIPE CROSS 7 | 1 | |
| 25 | PIPE CROSS 8 | 1 | |
| 26 | SUPPORT SEAT | 1 | |
| 27 | RIVET 5 | 2 | |
| 28 | BOLT FLG. M8X1.25 (4 per pack) | 2 | |
| 29 | BOLT FLG. M10X1.2 | 2 |
