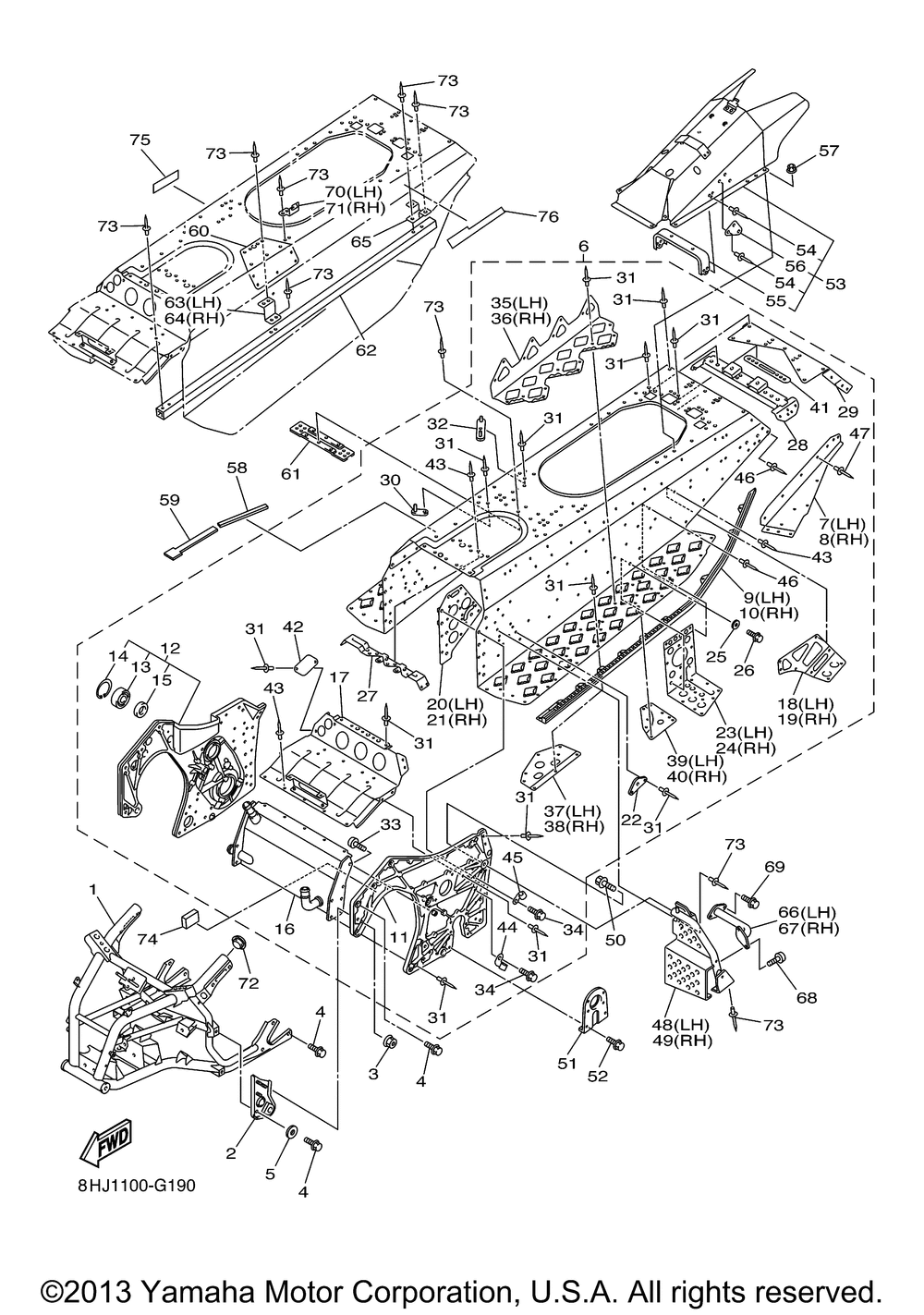

Yamaha FX NYTRO RTX (no reverse) FX10RTXL FX NYTRO RTX (no reverse) FX10RTXL FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BRACKET ENGINE 1
3 NUTSELF-LOCKING 3
4 BOLTFLANGE (JN5) 12
5 WASHERPLATE 1
6 REAR FRAME COMP. 1
7 BRACKET FOOTREST 1 1
8 BRACKET FOOTREST 2 1
9 REINFORCEMENT FOOTR 1
10 REINFORCEMENT FOOTR 1
11 REINF. HOUSING 1 1
12 HOUSING REINF SUB-A (R.H) 1
13 BEARING 1
14 CIRCLIP 54G 1
15 OIL SEAL 1
16 HEAT EXCHANGER ASSY 1
17 PANEL SUB FRAME 4 1
18 PATCH 3 1
19 PATCH 4 1
20 BRACKET MAIN TRACK 1
21 BRACKET MAIN TRACK 1
22 BRACKET MAIN TRACK 2
23 BRACKET RR.TRACK SU 1
24 BRACKET RR.TRACK SU 1
25 WASHER PLATE 2
26 BOLT FLANGE 2
27 PROTECTOR MUFFLER 1
28 BRACKET 7 1
29 REINEFORCEMENT FRAM 1
30 BRACKET FUEL TANK 2
31 RIVET BLIND (4.7X16.4 YELLOW) 1
32 BRACKET 8 4
33 BOLT BUTTON HEAD 2
34 BOLT FLANGE 8
35 REINFORCEMENT RR. F 1
36 REINFORCEMENT RR. F 1
37 PATCH 1 1
38 PATCH 2 1
39 PATCH 5 1
40 PATCH 6 1
41 NUT 1
42 PLATE COVER 1
43 RIVET BLIND (4.8X12 YELLOW) 47
44 CLAMP 1
45 CLAMP 1
46 RIVET BLIND 14
47 RIVET BLIND (4.8X12.1 YELLOW) 10
48 FOOTREST COMP. 1 1
49 FOOTREST COMP. 2 1
50 BOLTFLANGE 2
51 HOUSING REINF SUB-A (L.H) 1
52 BOLT FLANGE 2
53 PANEL SUB FRAME 5 1
55 STAY MUFFER 1
56 BRACKET SEAT FITTIN 2
57 NUTCROWN (5 per pack) 8
58 SEAL GUARD 2
59 SEAL GUARD 2
60 PATCH 7 2
61 PATCH 8 1
62 PROTECTOR FRAME 2
63 BRACKET 5 1
64 BRACKET 6 1
65 BRACKET PROTECTOR R 2
66 BAR FOOTREST 1 1
67 BAR FOOTREST 2 1
68 BOLT BUTTON HEAD 4
69 BOLT FLANGE 4
70 BRACKET REAR FENDER 1
71 BRACKET REAR FENDER 1
72 CAP 2
74 DAMPER 1
75 PLETE EPA OFFROAD 2 1
76 GRAPHIC 1 2
