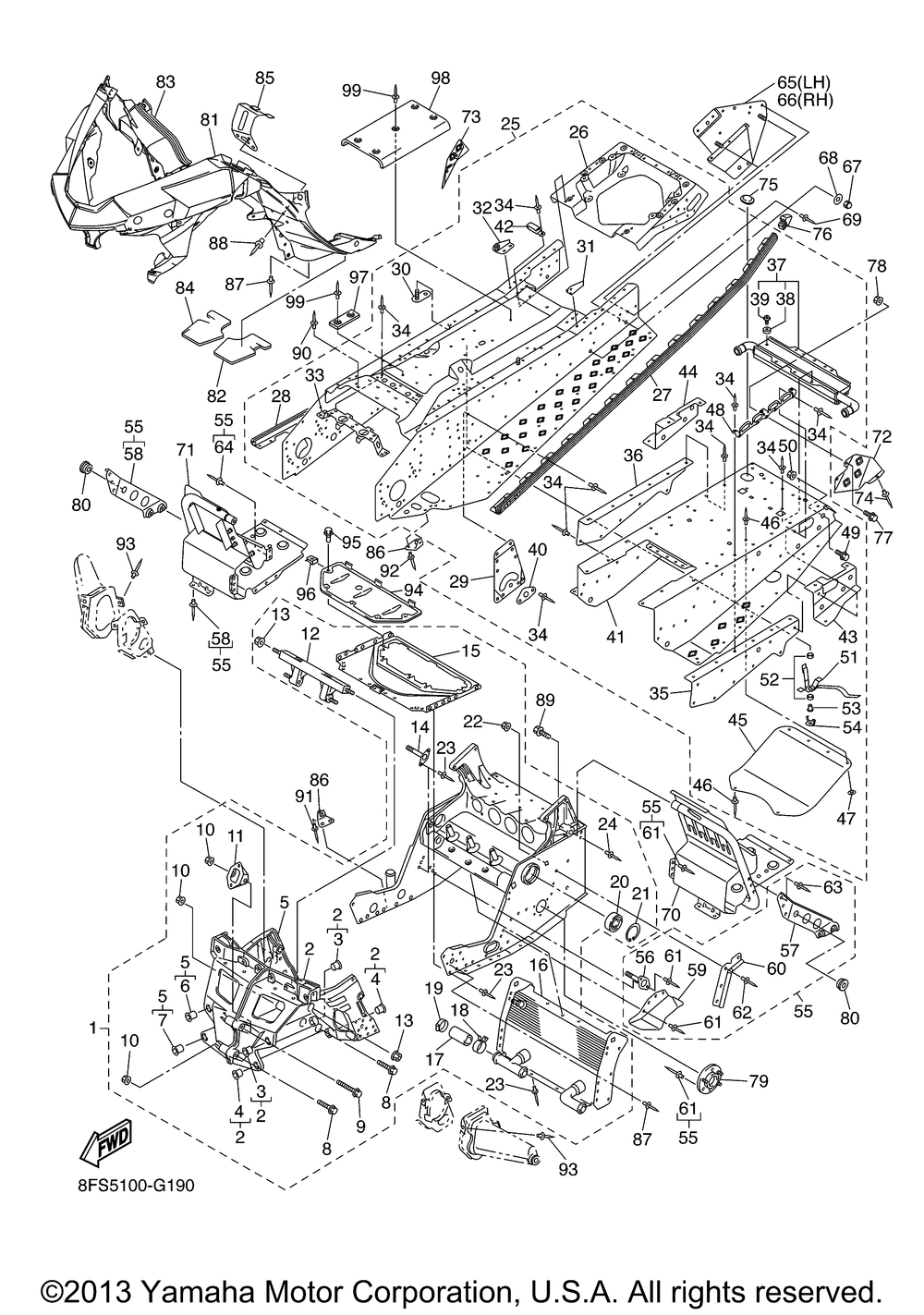

Yamaha APEX MTX SE 40TH ANNIVERSARY (no reverse) RX10MTAXW APEX MTX SE 40TH ANNIVERSARY (no reverse) RX10MTAX FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 BUSH SOLID 2
4 BUSH SOLID 2
5 BULKHEAD 2 1
8 BOLTFLANGE 3
9 BOLTFLANGE 1
10 NUT SELF LOCKING 4
11 BRACKET REGULATOR 1
12 BRACKET STEERING 1 1
13 NUTSELF-LOCKING 4
14 BRACKET CHAIN HOUSI 1
15 PROTECTOR 1
16 HEAT EXCHANGER ASSY 1
17 HOSE 7 1
18 CLIPSCISSOR 1
19 HOSE CLAMP ASSY 1
20 BEARING 1
21 CIRCLIP 54G 1
23 RIVET BLIND (4.7X16.4 YELLOW) 61
24 RIVET BLIND (4.8X17 YELLOW) 6
25 REAR FRAME COMP. 1
26 REINEFORCEMENT FRAM 1
27 REINFORCEMENT FOOTR 1
28 REINFORCEMENT FOOTR 1
29 BRACKET MAIN TRACK 2
30 BRACKET FUEL TANK 2
31 BRACKET 1 1
32 BRACKET 2 1
33 PROTECTOR MUFFLER 1
35 PATCH 3 1
36 PATCH 4 1
37 HEAT EXCHANGER ASSY 1
38 WASHERSEAL 1
39 SCREW PAN 1
40 BRACKET MAIN TRACK 2
41 PANEL SUB FRAME 5 1
42 CLAMP 1
43 PATCH 1 1
44 PATCH 2 1
45 PROTECTOR FRAME 3 1
46 RIVET BLIND 6
47 WASHERPLATE 6
48 HOOK 2
49 BOLT FLANGE 2
50 Гайка с фланцем 2
51 STAY MUFFER 1
52 DAMPER MUFFLER 2
53 COLLAR 1
54 STAY MUFFLER 1
55 FRAME CONNECTION KIT 1
56 BRACKET CHAIN HOUSI 2
57 BRACKET 5 1
58 BRACKET 6 1
59 COVER 2 1
60 CLAMP WIREHARNESS 1
62 RIVET BLIND (4.8X18.6 BLACK) 4
63 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 10
64 RIVET BLIND 4
65 BRACKET RR.TRACK SU 1
66 BRACKET RR.TRACK SU 1
67 NUT 4
68 WASHERPLATE 4
69 RIVET BLIND (5 per pack) 10
70 FOOTREST COMP. 1 1
71 FOOTREST COMP. 2 1
72 PROTECTOR FRAME A 1
73 PROTECTOR FRAME B 1
75 CAP 1
76 PLUG 2
79 HOUSING REINF SUB-A (L.H) 1
80 GROMMET 2
81 FRAME UNDER 1 1
82 DAMPER 2 1
83 FRAME UNDER 2 1
84 DAMPER 3 1
85 BRACKET GUARD FITTI 1
86 BRACKET 3 6
88 RIVET BLIND (4.7X19.5 BLACK) 3
89 BOLTFLANGE(8AB) 2
90 RIVET BLIND 12
91 RIVETBLIND (4.8X15.2 SILVER) 8
92 RIVET BLIND (5 per pack) 4
94 PROTECTOR FRAME 1
95 BOLT 5
96 NUT SPRING (4ES) 5
97 SPACER 4
98 SHIELD HEAT 1
99 RIVETBLIND (4.8X12.3) 13
