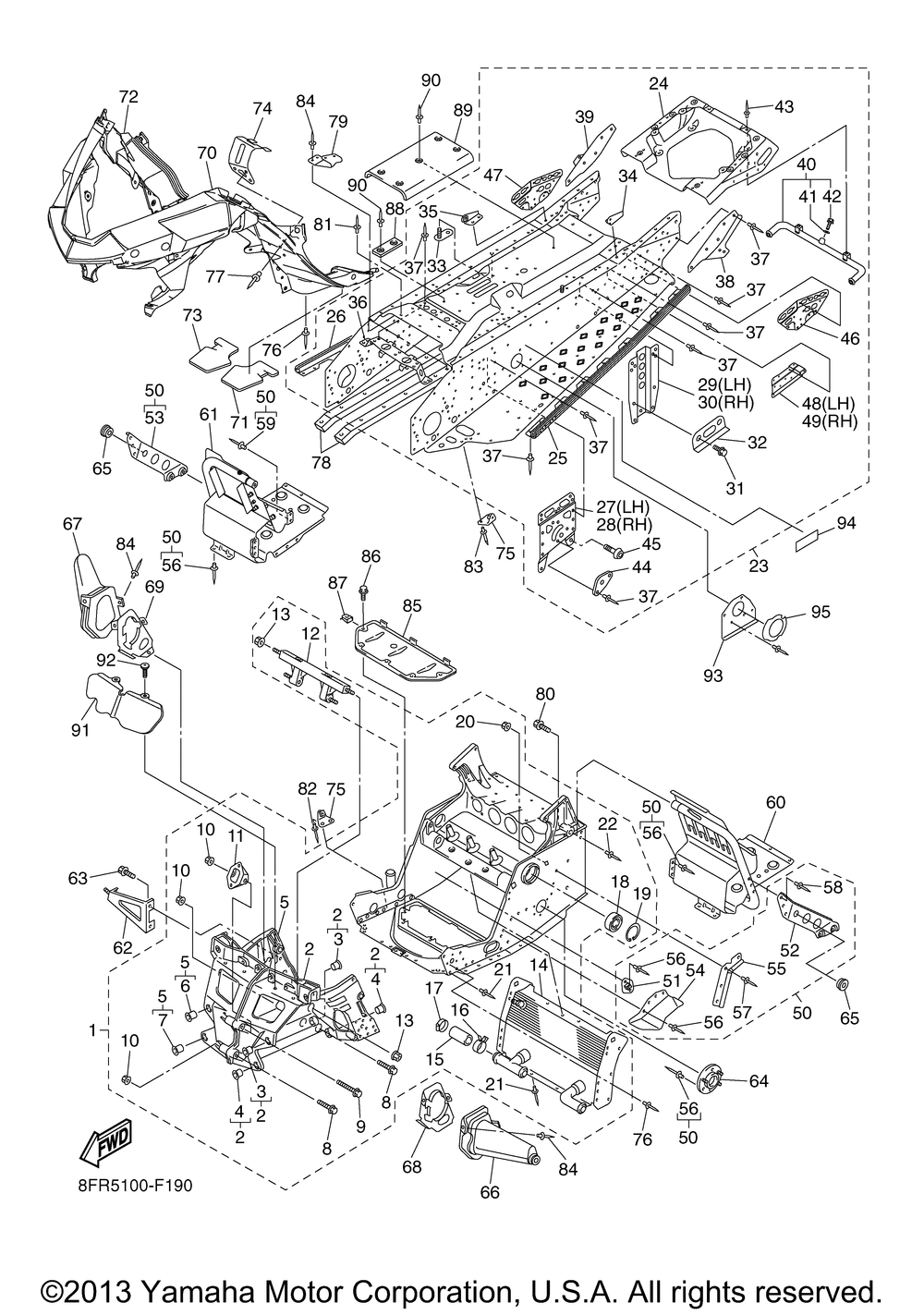

Yamaha APEX ER RX10RW/RX10RTRW APEX ER RX10RW/RX10RTRW FRAME 1
FRAME 1
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 BUSH SOLID 2
4 BUSH SOLID 2
5 BULKHEAD 2 1
8 BOLTFLANGE 3
9 BOLTFLANGE 1
10 NUT SELF LOCKING 4
11 BRACKET REGULATOR 1
12 BRACKET STEERING 1 1
13 NUTSELF-LOCKING 4
14 HEAT EXCHANGER ASSY 1
15 HOSE 7 1
16 CLIPSCISSOR 1
17 HOSE CLAMP ASSY 1
18 BEARING 1
19 CIRCLIP 54G 1
21 RIVET BLIND (4.7X16.4 YELLOW) 61
22 RIVET BLIND (4.8X17 YELLOW) 6
23 REAR FRAME COMP. 1
24 REINEFORCEMENT FRAM 1
25 REINFORCEMENT FOOTR 1
26 REINFORCEMENT FOOTR 1
27 BRACKET MAIN TRACK 1
28 BRACKET MAIN TRACK 1
29 BRACKET RR.TRACK SU 1
30 BRACKET RR.TRACK SU 1
31 BOLT FLANGE 4
32 PATCH 8 2
33 BRACKET FUEL TANK 2
34 BRACKET 1 1
35 BRACKET 2 1
36 PROTECTOR MUFFLER 1
38 PATCH 3 1
39 PATCH 4 1
40 HEAT EXCHANGER ASSY 1
41 WASHERSEAL 1
42 BOLTFLANGE 1
43 RIVET BLIND (5 per pack) 2
44 BRACKET MAIN TRACK 2
45 BOLT BUTTON HEAD 2
46 REINF. SUB FRAME 1 1
47 REINFORCEMENT SUB F 1
48 REINFORCEMENT FRAME 1
49 REINFORCEMENT FRAME 1
50 FRAME CONNECTION KIT 1
51 BRACKET CHAIN HOUSI 2
52 BRACKET 5 1
53 BRACKET 6 1
54 COVER 2 1
55 CLAMP WIREHARNESS 1
57 RIVET BLIND (4.8X18.6 BLACK) 4
58 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 10
59 RIVET BLIND 4
60 FOOTREST COMP. 1 1
61 FOOTREST COMP. 2 1
62 BRACKET OIL TANK 1 1
63 BOLTFLANGE 2
64 HOUSING REINF SUB-A (L.H) 1
65 GROMMET 2
66 COVER 1 1
67 COVER 3 1
68 PLATE STRG BRACKET 1
69 PLATE STRG BRACKET 1
70 FRAME UNDER 1 1
71 DAMPER 2 1
72 FRAME UNDER 2 1
73 DAMPER 3 1
74 BRACKET GUARD FITTI 1
75 BRACKET 3 6
77 RIVET BLIND (4.7X19.5 BLACK) 3
78 PROTECTOR FRAME 2
79 BRACKET 7 4
80 BOLTFLANGE(8AB) 2
81 RIVET BLIND 16
82 RIVETBLIND (4.8X15.2 SILVER) 8
85 PROTECTOR FRAME 1
86 BOLT 5
87 NUT SPRING (4ES) 5
88 SPACER 4
89 SHIELD HEAT 1
90 RIVETBLIND (4.8X12.3) 13
91 COVER FRONT 1
92 SCREWROUND HEAD 2
93 PATCH 2 1
94 PLETE EPA OFFROAD 2 1
95 GRAPHIC 1 1
