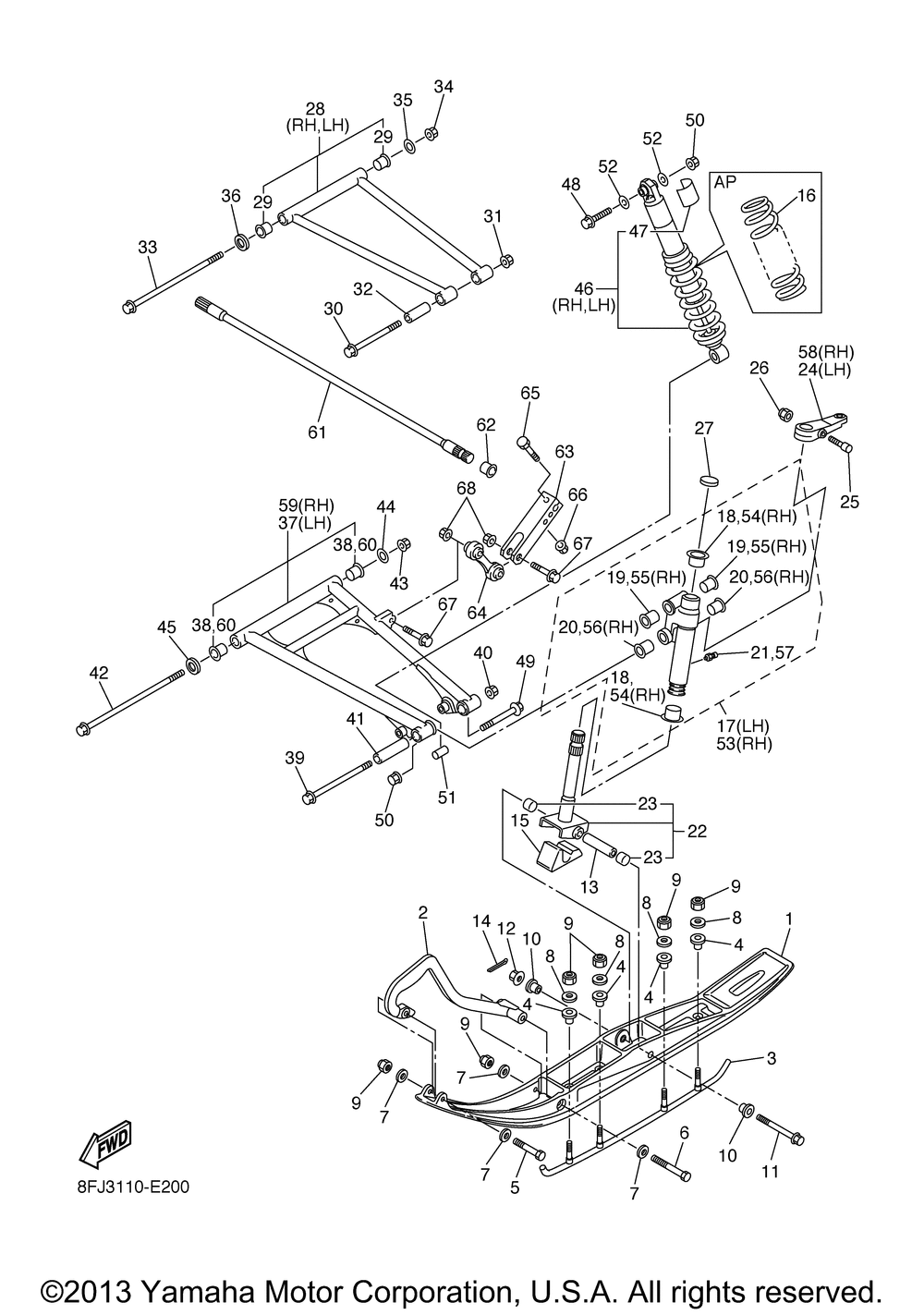

Yamaha VECTOR ER RS90RL/RS90NRL VECTOR ER RS90RL/RS90NRL SKI
SKI
№ Наименование Примечание Кол-во
1 SKI 1 2
2 BLUE 8DM HANDLE PLAS 2
2 RED 8DM HANDLE PLAST 2
3 SKI RUNNER KIT 2
4 BUSH SKI 1 8
5 BOLTHEXAGON 2
6 BOLT (83L) 2
7 WASHERPLATE 8
8 WASHER PLATE 8
9 NUTLOCK 12
10 COLLAR 1 4
11 BOLT FLANGE 2
12 NUTSELF-LOCKING 2
13 COLLAR 2
14 Шплинт 2
15 STOPPER 1 2
16 SPRING ASSY 1 (K=24.5N/MM) AP 1
16 SPRING ASSY 1 (K=20.6N/MM) AP 1
17 STEERING KNUCKLE ASS (LEFT) 8HE1 LTGTX 1
17 STEERING KNUCKLE ASS (LEFT) 1
18 BUSH SOLID 2
19 BUSH SOLID 2
20 BUSH SOLID 2
21 NIPPLEGREASE 1
22 COLUMN SKI ASSY 2
23 BUSH BIMETAL FORMED 2
24 ARM OUTSIDE 1 1
25 BOLT HEXAGON SOCKET 2
26 NUT SELF LOCKING 2
27 CAP CASE 2
28 FRONT UPPER ARM COMP (LEFT) YB 2
28 FRONT UPPER ARM COMP (LEFT) 8HE1 LTGTX 2
28 FRONT UPPER ARM COMP 8GM1 X 2
30 BOLT FLANGE 2
32 COLLAR 2
33 BOLT FLANGE 2
35 WASHER PLATE 2
36 WASHER 4
37 FRONT LOWER ARM COMP (LEFT) 8HE1 LTGTX 1
37 FRONT LOWER ARM COMP (LEFT) 8GM1 X 1
37 FRONT LOWER ARM COMP (LEFT) 1
38 BUSH SOLID 2
39 BOLT FLANGE 2
40 NUTU FLANGE 2
41 COLLAR 2
42 BOLT FLANGE 2
46 ABSORBER ASSY 1 RS90NRL (8GH1) 2
46 ABSORBER ASSY 1 RS90RL (8FJ3) UR FOR SM1 2
46 ABSORBER ASSY 1 UR FOR YB (8FJ5) 2
47 LABEL WARNING 1
48 BOLTWASHER BASED 2
49 BOLTWASHER BASED 2
51 COLLAR 2
53 STEERING KNUCKLE ASS (RIGHT) 8HE1 LTGTX 1
53 STEERING KNUCKLE ASS (RIGHT) 1
58 ARM OUTSIDE 2 1
59 FRONT LOWER ARM COMP (RIGHT) 8HE1 LTGTX 1
59 FRONT LOWER ARM COMP (RIGHT) 8GM1 X 1
59 FRONT LOWER ARM COMP (RIGHT) 1
61 BAR STABILIZER FRON 1
62 BUSH STABILIZER FRO 2
63 ARM STABILIZER 2
64 JOINT STABILIZER 1 2
65 BOLT 2
66 NUT-U 2
67 BOLTFLANGE 4
68 NUT U FLANGE 4
