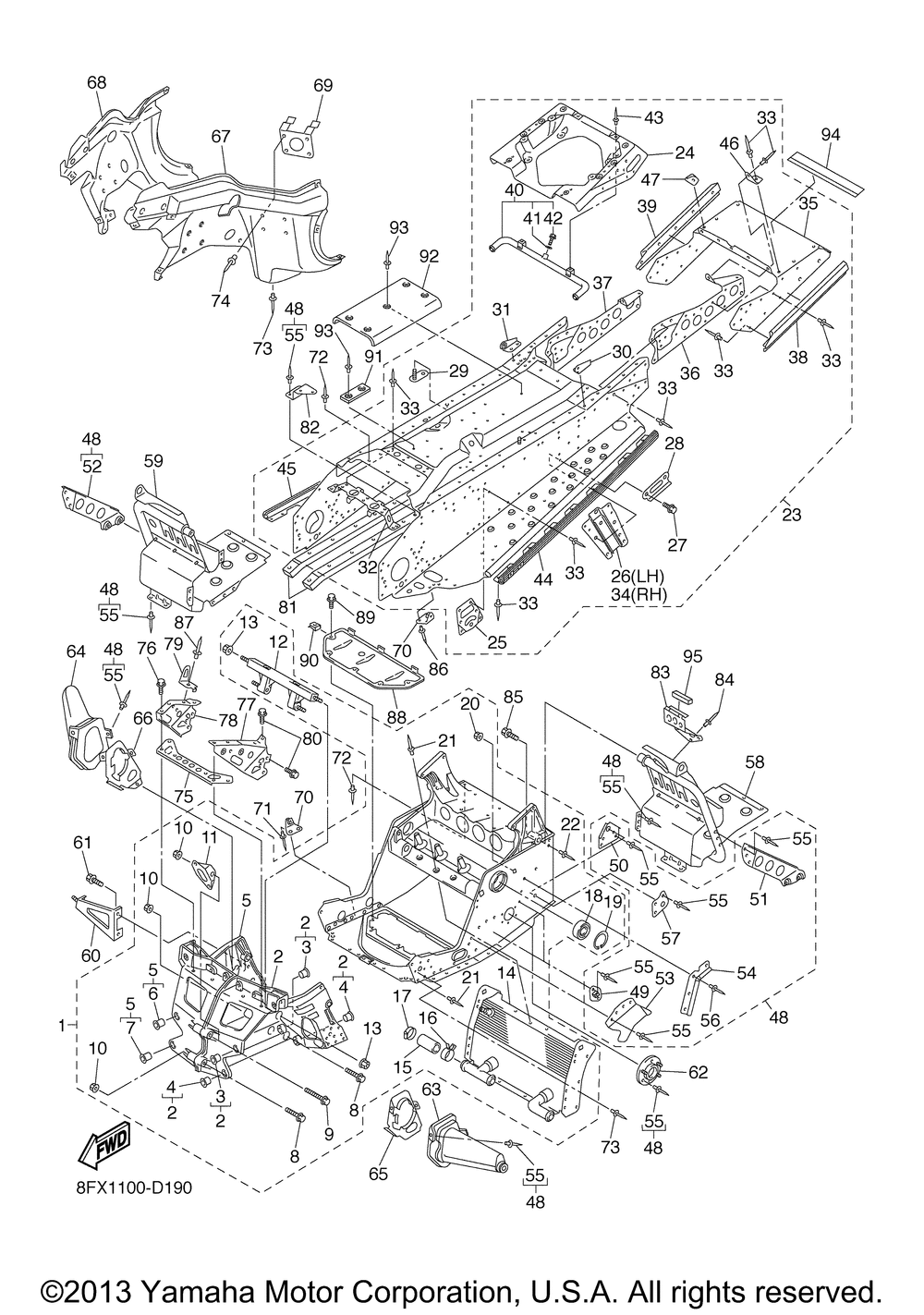

Yamaha RX WARRIOR LIMITED EDITION RXW10SK/RXW10K RX WARRIOR LIMITED EDITION RXW10SK/RXW10K FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 BUSH SOLID 2
4 BUSH SOLID 2
5 BULKHEAD 2 1
8 BOLTFLANGE 3
9 BOLTFLANGE 1
10 NUT SELF LOCKING 4
11 BRACKET REGULATOR 1
12 BRACKET STEERING 1 1
13 NUTSELF-LOCKING 4
14 HEAT EXCHANGER ASSY 1
15 HOSE 7 1
16 CLIPSCISSOR 1
17 HOSE CLAMP ASSY 1
18 BEARING 1
19 CIRCLIP 54G 1
21 RIVET BLIND (4.7X16.4 YELLOW) 61
22 RIVET BLIND 6
23 REAR FRAME COMP. 1
24 REINEFORCEMENT FRAM 1
25 PATCH 5 2
26 BRACKET RR.TRACK SU 1
27 BOLT FLANGE 4
28 PLATE GUIDE 2
29 BRACKET FUEL TANK 2
30 BRACKET 1 1
31 BRACKET 2 1
32 PROTECTOR MUFFLER 1
34 BRACKET RR.TRACK SU 1
35 PANEL SUB FRAME 5 1
36 PATCH 3 1
37 PATCH 4 1
38 MEMBER SIDE 1 1
39 MEMBER SIDE 2 1
40 HEAT EXCHANGER ASSY 1
41 WASHERSEAL 1
42 BOLTFLANGE 1
43 RIVET BLIND (5 per pack) 2
44 REINFORCEMENT FOOTR 1
45 REINFORCEMENT FOOTR 1
46 PATCH 8 1
47 PATCH 9 1
48 FRAME CONNECTION KIT 1
49 BRACKET CHAIN HOUSI 2
50 BRACKET MAIN TRACK 2
51 BRACKET 5 1
52 BRACKET 6 1
53 COVER 2 1
54 CLAMP WIREHARNESS 1
56 RIVET BLIND (4.8X18.6 BLACK) 4
57 BRACKET MAIN TRACK 2
58 FOOTREST COMP. 1 1
59 FOOTREST COMP. 2 1
60 BRACKET OIL TANK 1 1
61 BOLTFLANGE 2
62 HOUSING REINF SUB-A (L.H) 1
63 COVER 1 1
64 COVER 3 1
65 PLATE STRG BRACKET 1
66 PLATE STRG BRACKET 1
67 FRAME UNDER 1 RXW10K (8FX1) 1
67 FRAME UNDER 1 RXW10SK (8GB1) 1
68 FRAME UNDER 2 1
68 FRAME UNDER 2 RSG90W (8FL5) 1
69 BRACKET GUARD FITTI 1
70 BRACKET 3 6
71 RIVETBLIND (4.8X15.2 SILVER) 8
72 RIVET BLIND 16
74 RIVET BLIND (4.7X19.5 BLACK) 4
74 RIVET BLIND 4
75 BUMPER FRONT 2 1
76 BOLT FLANGE 4
77 BRACKET FRONT 1
78 BRACKET FRONT BUMPE 1
79 STAY 1 2
80 BOLTFLANGE (JN5) 6
81 PROTECTOR FRAME 2
82 BRACKET 7 RS90NRL (8GH1) 4
83 HOOK 1
85 BOLTFLANGE(8AB) 2
88 PROTECTOR FRAME 1
89 BOLT 5
90 NUT SPRING (4ES) 5
91 SPACER 4
92 SHIELD HEAT 1
93 RIVETBLIND (4.8X12.3) 13
94 LABEL WARNING 1
95 DAMPER 1 1
