Yamaha VENTURE 500 VT500F/VX500DXF VENTURE 500 VT500F/VX500DXF FRAME

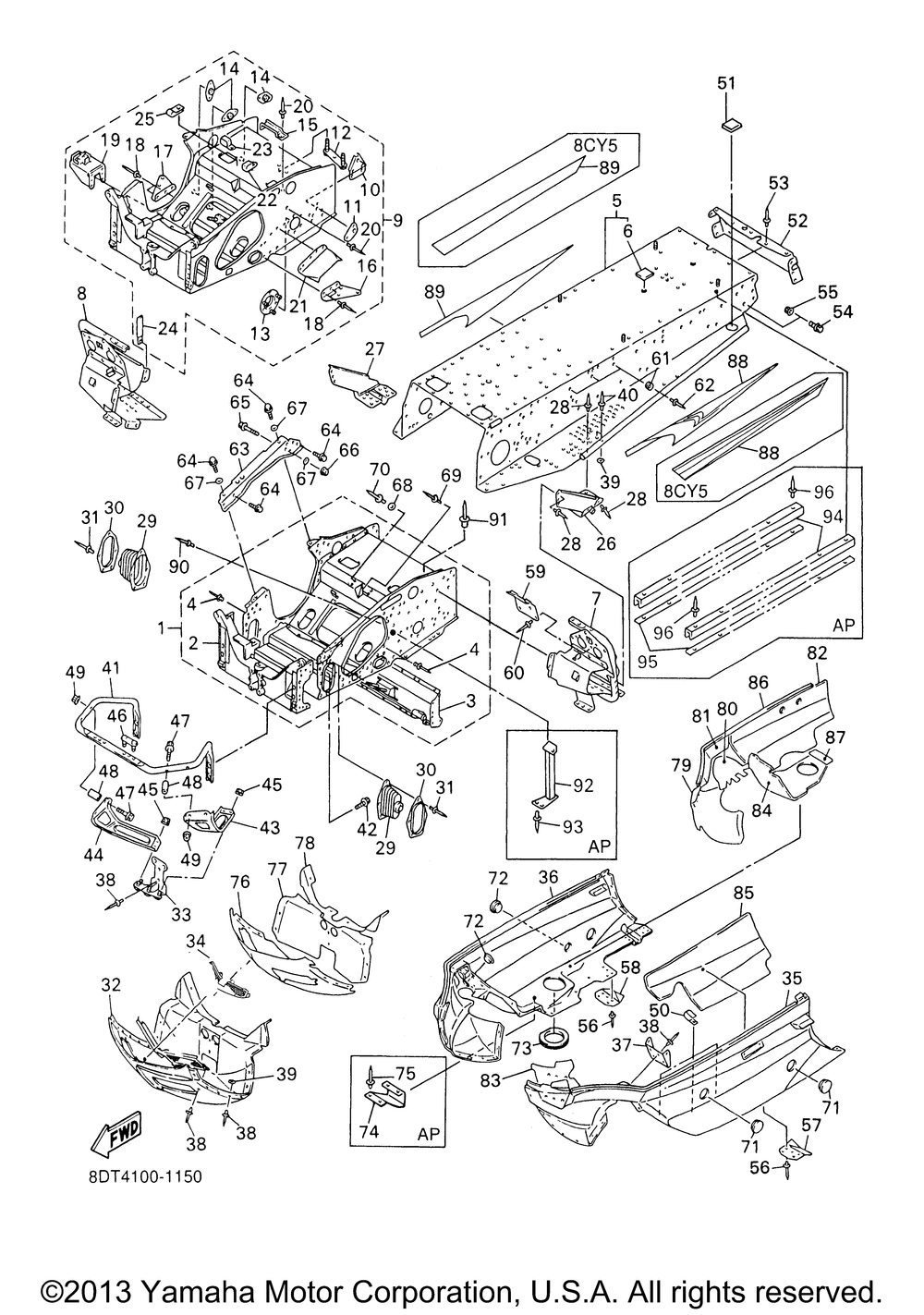

FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. (USA) 1
2 BULKHEAD (USA) 1
3 FRONT HEAT EXCHANGER (USA) 1
4 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 50
4 RIVET BLIND (4.8X17 YELLOW) 20
4 RIVET BLIND 10
5 REAR FRAME COMP 1
5 REAR FRAME COMP. (8CY5) 1
6 COVER 3 (8CY5) 1
6 COVER 3 1
7 FOOTREST COMP. 1 (USA) 1
8 FOOTREST COMP. 2 (USA) 1
9 FRAME CONNECTION K 1
10 BRACKET MAIN TRACK 2
11 BRKT MTRK SUSP2 2
12 BRKT 3 1
13 HSG.REINF SUBASSY3 (L.H) (USA) 1
14 BRKT CHAIN HSG 3
15 CLAMP. FUEL PIPE (USA) 2
16 PANEL SUBFRAME 6 (USA) 1
17 PANEL SUBFRAME 7 (USA) 1
19 STAY MUFFLER (USA) 1
20 RIVET BLIND 150
20 RIVET BLIND (5 per pack) 10
21 COVER 2 1
22 CLAMP 2
23 CLAMP 1
24 CLAMP 1
25 CLAMP 1
26 PIPE PIVOT 1 1
27 PIPE PIVOT 2 1
28 RIVET 16
29 COVER 1 (USA) 2
30 PLATE STRG.BRKL1 2
31 RIVET BLIND (5 per pack) 10
32 PANEL SUB FRAME 1 (USA) 1
33 PLATE BACK UP (USA) 1
34 LOUVER LOWER 1
35 FRAME UNDER 1 (USA) 1
36 FRAME UNDER 2 (USA) 1
37 BRACKET GUARD FIT (USA) 1
38 RIVET BLIND 39
39 WASHERPLATE 18
40 RIVETBLIND (4.7X16.4 BLACK) 14
41 BUMPER FRONT 2 (USA) 1
42 BOLTFLANGE(8AB) 4
43 BRACKET FRONT (USA) 1
44 BRACKET FRONT BUMPE (USA) 1
45 NUT SELF LOCKING 4
46 BRACKET 5 (USA) 2
47 BOLT FLANGE (USA) 4
48 COLLAR (USA) 4
49 Гайка с фланцем 4
50 CLAMP 3
52 REINFORCEMENT FR 1
53 RIVET BLIND (4.7X16.4 YELLOW) 7
54 BOLTSMALL FLANGE 4
57 PROTECTORFRAME 1
58 PROTECTOR FRAME 1
59 HOOK 1
60 RIVET BLIND 3
61 BUTTON 6
62 RIVET BLIND (81K) 6
63 REINEFORCEMENT FR 1
64 BOLT FLANGE 6
65 BOLT 1
66 NUTFLANGE (8AB) 1
67 WASHER 3
71 PLUGSPEC'L SHAPE 3
72 PLUGSPEC'L SHAPE 3
73 SPACER (USA) 1
74 PROTECTOR FRAME 3 AP (USA) 1
76 LININGSHROUD 1 1
77 LININGSHROUD 2 1
78 LININGSHROUD 3 (USA) 1
79 LININGSHROUD 4 1
80 LININGSHROUD 5 (USA) 1
81 LININGSHROUD 6 (USA) 1
82 LINING SHROUD 7 (USA) 1
83 LINING SHROUD 8 1
84 LININGSHROUD 9 (USA) 1
85 DAMPERNOISE 11 (USA) 1
86 TAPE 5 (USA) 1
87 TRIM 1 1
88 GRAPHIC 7 (8CY5) 1
88 GRAPHIC 7 (USA) 1
89 GRAPHIC 8 (8CY5) 1
89 GRAPHIC 8 (USA) 1
92 PROTECTOR FRAME 2
94 FULLGTH TUNL PRCT AP (USA) 2
95 BRACKET GUARD FIT AP (USA) 2
